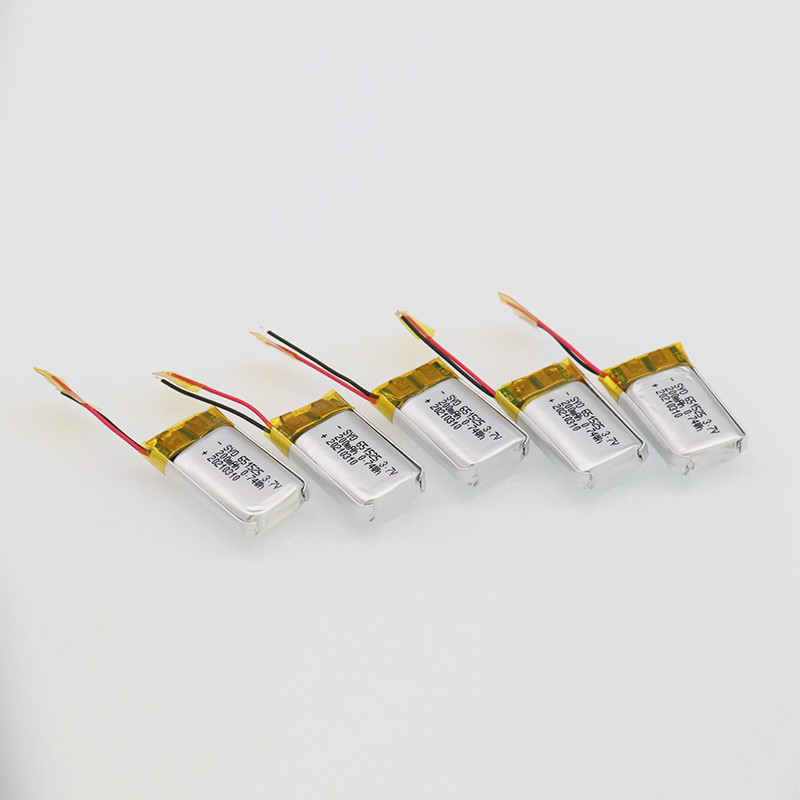

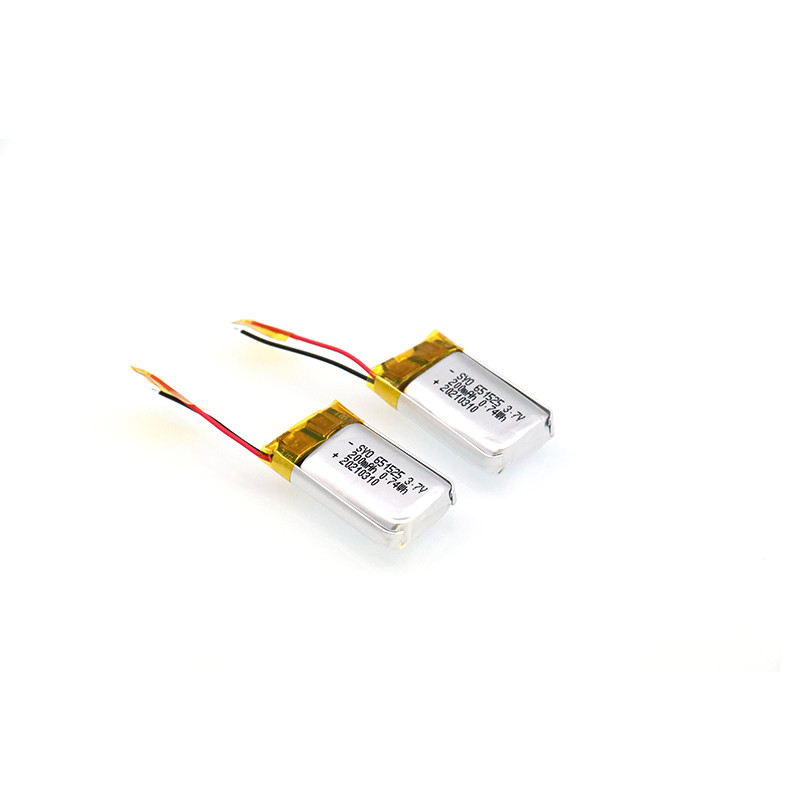

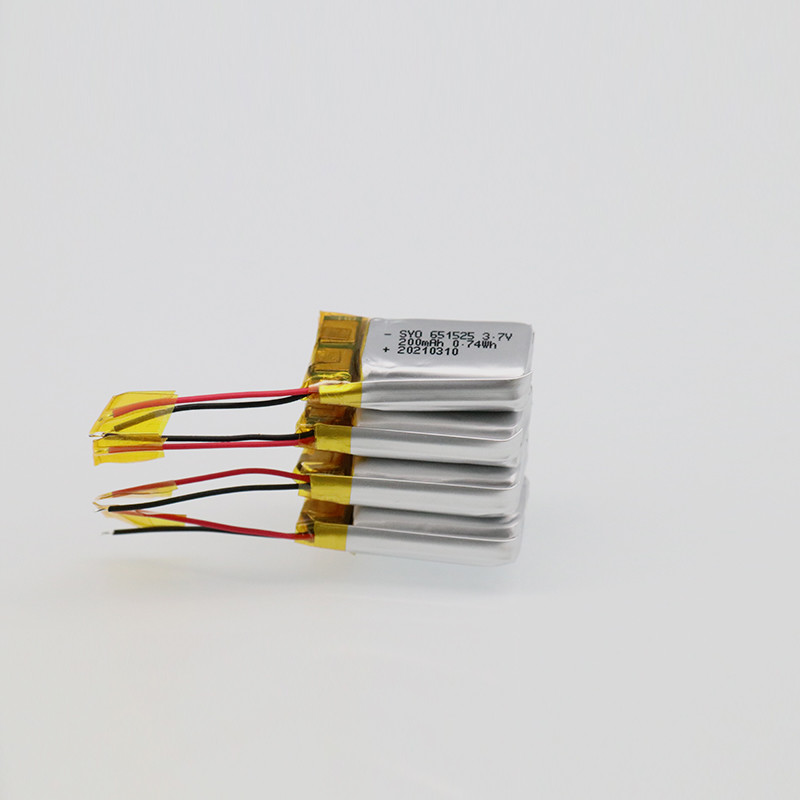

CE FCC ROHS 461730 3.7 V 200mah Rechargeable Battery / Bluetooth Earphone Battery
| Capacity:: | 200mAh | Size:: | 5.2*20.5*27mm |
| Cycle life:: | 500 Times | Voltage:: | 3.7V |
| Weight:: | 5g | Charge current: | ≤1C |
| High Light: | 461730 3.7 V 200mah Rechargeable Battery,200mah Bluetooth Earphone Battery,FCC 3.7 V 200mah Rechargeable Battery |
||
Key Specifications/Special Features:
Specifications
1. Model: 461730-200mAh
2. Battery type: Li-Po battery
3. Nominal voltage: 3.7V
4. Charge voltage: 4.25V
5. Nominal capacity: 200mAh
6. Dimensions: 4.8x17.0x32.5mm with PCM
7. Standard discharging current: 0.2C
8. Maximum charging current: 1c
9. Standard charging current: 0.2c
10. Rap charging current: 1c
11. Self-discharge: <2% per month
12. Charging temperature: 0°C to 45°C
13. Discharging temperature: -20°C to 75°C
14. Storage temperature:
- -20°C to 45°C (within 1month)
- -20°C to 40°C (within 3month)
- -20°C to 35°C (within 6month)
16. Weight: approx. 23g
17. Applications: GPS tracker, Bluetooth earphone use, tablet PC
The size of lithium polymer battery can be custom made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperarure LiPo battery, low temperature LiPo battery, special shape LiPo battery (round)
200mah 3.7v dtp502025 li-polymer polymer li-ion battery with CE/FCC/ROHS certificates
| Model | DTP502025 | Charge temperature | 0~45°C,45~85%RH | |
| Norminal voltage | 3.7V | Discharge temperature | -20~55°C,45~85%RH | |
| Norminal capacity | 200mAh | Storage temperature and humidity range | within a month | -20~+55°C,45~85%RH |
| Continous discharge current | 0.5C | above three months | -20~+45°C,45~85%RH | |
| Over discharge protection current | 2C | within one year | -5~+20°C,45~85%RH | |
| Over charge protection voltage | 4.25V + / - 0.025V /CELL | Max size | 5.2mm*20.5mm*27mm(with pcm) | |
| Discharge protection voltage | 2.50V + / - 0.10V /CELL | |||
| Max. charge voltage | 4.20v | |||
| Charge current | ≤1C | Sample | OK | |
| Cycle Life | more than 500 times | |||
