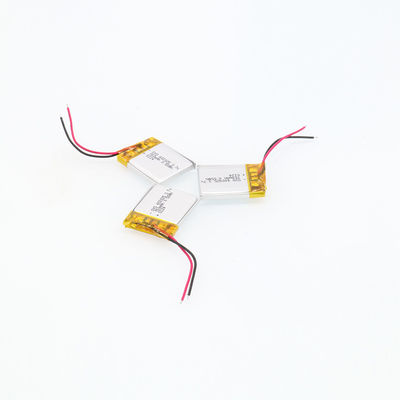

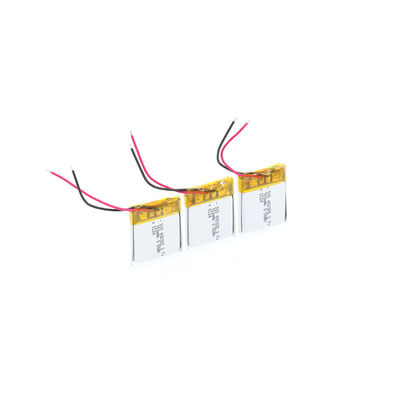

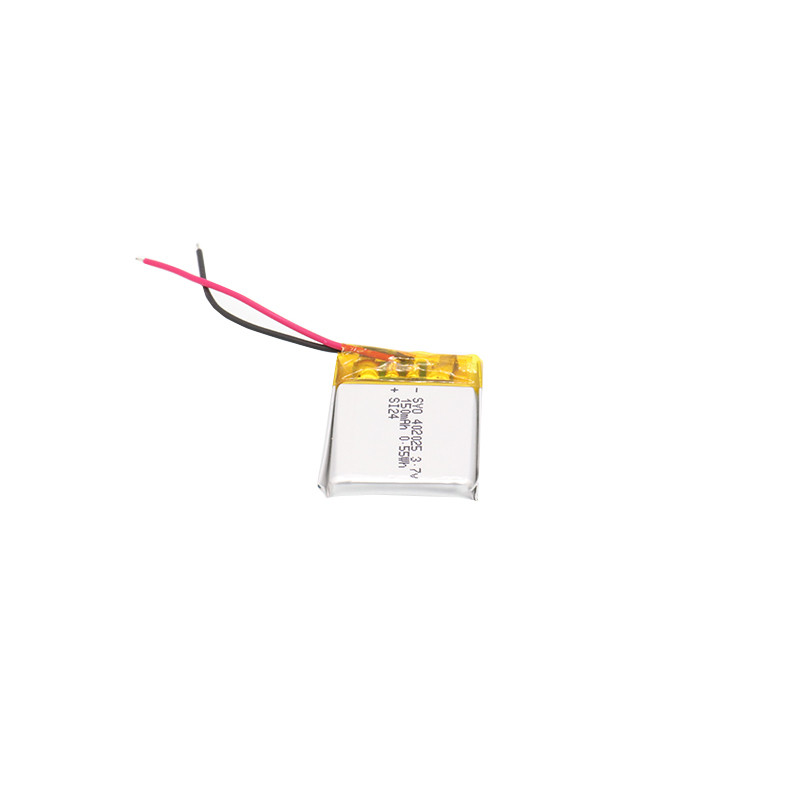

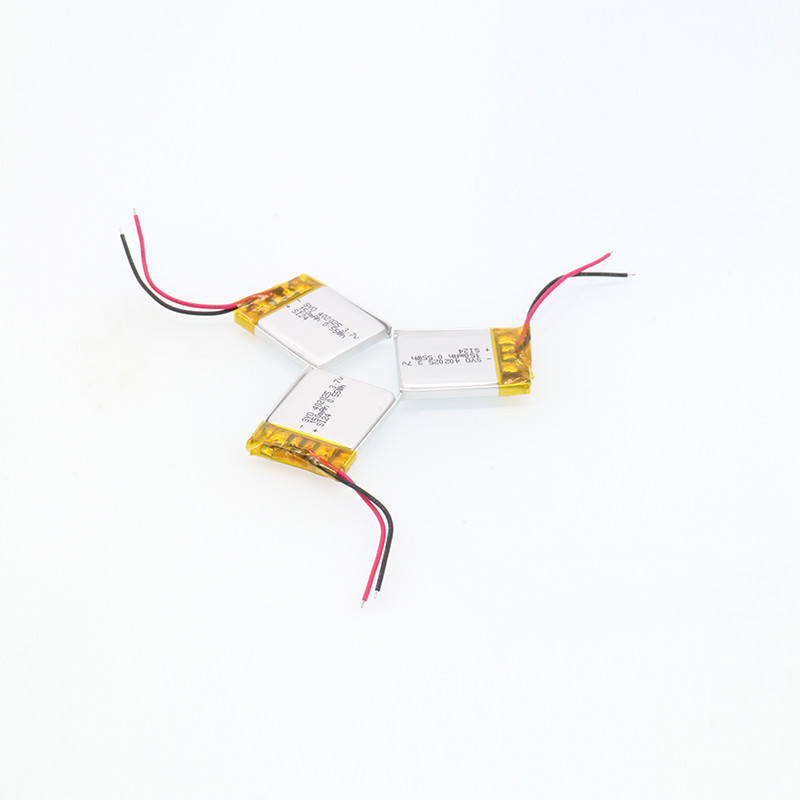

402025 150mAh 3.7v hard case drone enrich power lithium polymer battery cells
402025 150mAh 3.7v hard case drone enrich power lithium polymer battery cells
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Fujian China
Brand Name: MEGA
Certification: CE/RoHS/UN38.3/MSDS
Model Number: 150mAh 3.7v Polymer Lithium Battery
Payment & Shipping Terms
Packaging Details: 600pc in a carton
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal
Supply Ability: 1000000 Piece/Pieces per Month
Capacity:: 150mah
Voltage:: 3.7V
Cycle Life:: More Than 500 Times
Charging Voltage: 4.2V
Minimum Capacity: 130mAh(0.2C Discharge)
Shipment Voltage: ≥3.85V
Battery Pack Impedance: ≤120mΩ
Discharging Cut-off Voltage: 3.0V
Product Description

Key Specifications/Special Features:

3.7V 150mAh Lithium-polymer battery with PCB and wires
1. Model: 302035-150mAh
2. Battery type: Li-Po battery
3. Nominal voltage: 3.7V
4. Charge voltage: 4.25V
5. Nominal capacity: 150mAh
6. Dimensions: 3.2x20.5x32.5mm with PCM
7. Standard discharging current: 0.2C
8. Maximum charging current: 1C
9. Standard charging current: 0.2C
10. Rap charging current: 1C
11. Self-discharge: <2%/month
12. Charging temperature: 0° to 45°C
13. Discharging temperature: -20 to 75°C
14. Storage temperature:
  • -20 to 45°C (within 1month)
  • -20 to 40°C (within 3month)
  • -20 to 35°C (within 6month)

15. Certifications: RoHS Directive, UL, MSDS, REACH, UN 38.3
16. Weight: approximately 8g
17. Applications: GPS tracker, Bluetooth earphones use
Size of Lithium-polymer battery can be custom made, we have the advantage making special Li-Po battery such as extremely thin Li-Po battery (1.5mm), high-temperature Li-Po battery, low-temperature Li-Po battery, special shape Li-Po battery (round)

Product Description

402025 150mAh 3.7v hard case drone enrich power lithium polymer battery cells 0

Nominal voltage3.7V
Minimum capacity130mAh(0.2C discharge)
Charging voltage4.2V
Discharging cut-off voltage3.0V
Standard charging0.2C /4.2V
Max charging1.0C /4.2V
Standard discharging0.2C/3.0V
Max discharging continuous discharge1.0C/3.0V
non-continuous discharge2.0C/3.0V
Shipment voltage≥3.85V
Battery pack impedance≤120mΩ
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C

Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time )

-10℃~25℃(12 months ≥85% )
-10℃ ~45℃(6 months ≥85% )
-10℃~55℃(1 month ≥90% )
20±5℃ is the recommended storage temperature
Visual Inspection

There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.

Reference standardGB/T 18287-2013,IEC/EN61960
