Feature:
1. Long service life and economical
The cell can provide more than 500 charge and discharge cycles. This makes it extremely economical, and provides an expected life similar to that of the device in which it is used.
2. Excellent discharge characteristics
have low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.
3. Long shelf life
provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.
Advantages:
Excellent staff team
Prefect company system and a steady financial condition
Strong production
Fast delivery
Good after-sale service
High-quality and competitive price
Large consumer group,can bring you large profits as we

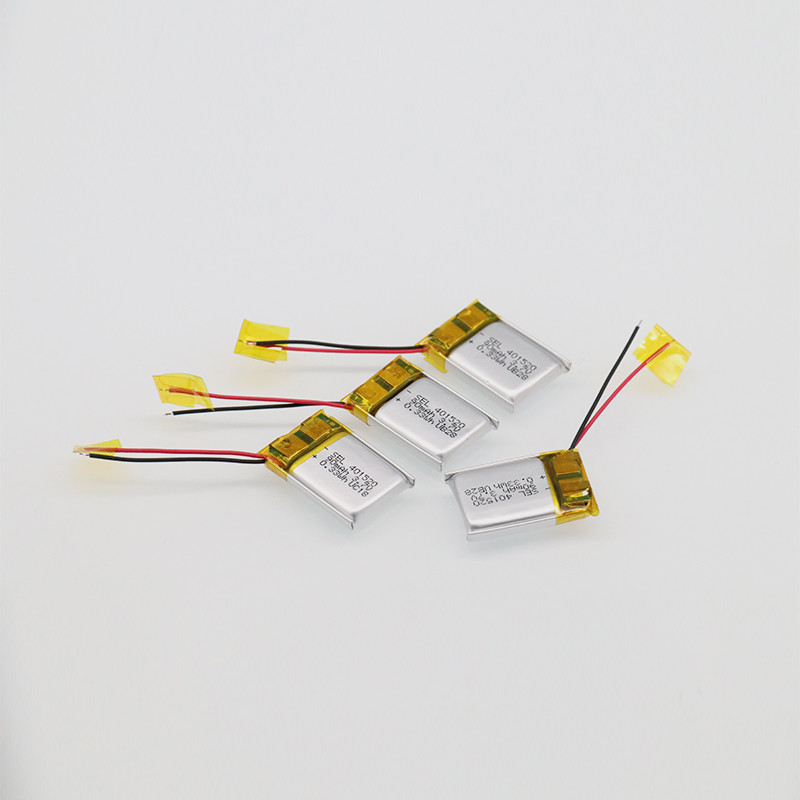

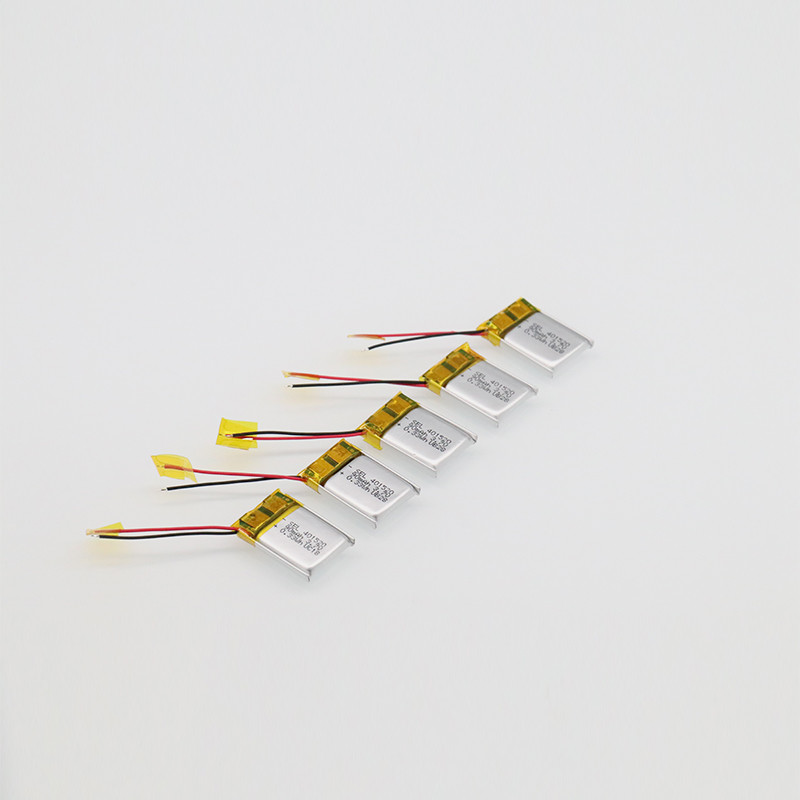

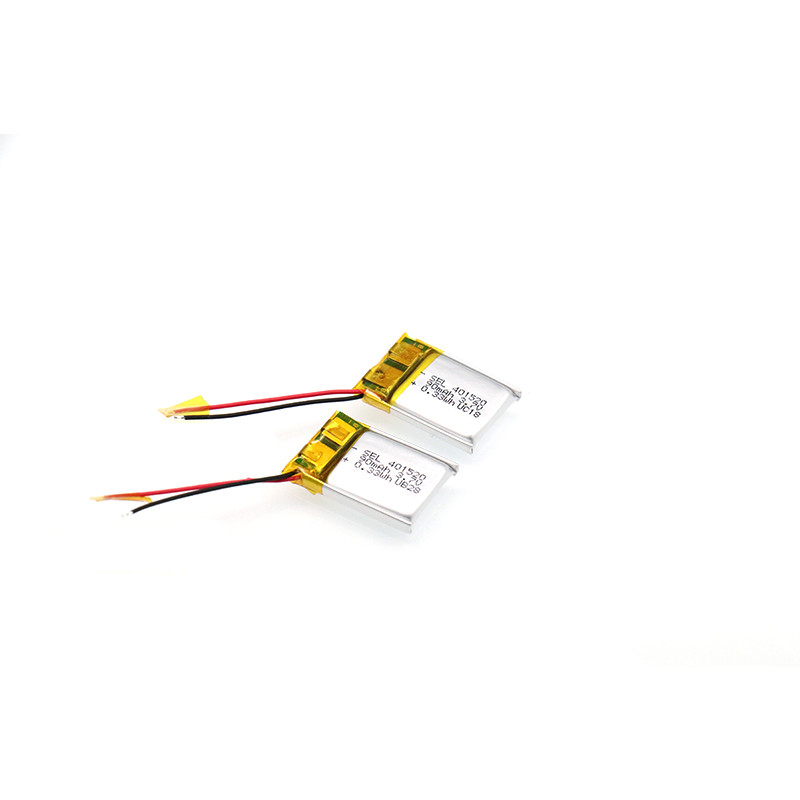

| Name | Lithium-ion polymer battery |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 90mAh |
| Dimensions | (T)3.7 * (W)12 * (H)27 mm |
| Standard charging current | 0.2C |
| Standard discharging current | 0.2C |
| Max charging Current | 1C |
| Max continuous discharging current | 1C |
| Pulse discharging current | 1.5C |
| Cut off voltage | 3.0/4.2V |
| Cycle life | 500 times |
| Charging temperature | 0°C- 45°C |
| Discharging temperature | -20°C- 60°C |
| Storage Temperature | -10°C- 45°C (recommend 20°C+/-5°C) |
| Appearance | without scratch, distortion, contamination and leakage |
| PCB | optional |
| Wire | optional |
| Connector | optional |
| Certifications | CE, RoHS, REACH, UL, UN38.3, IEC 62133 |
