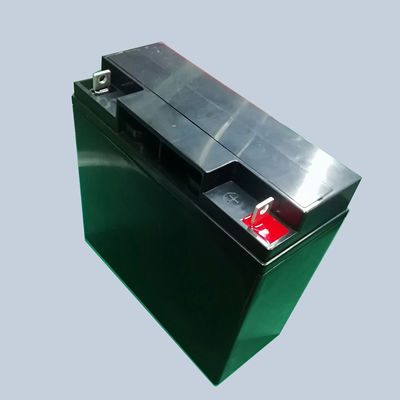

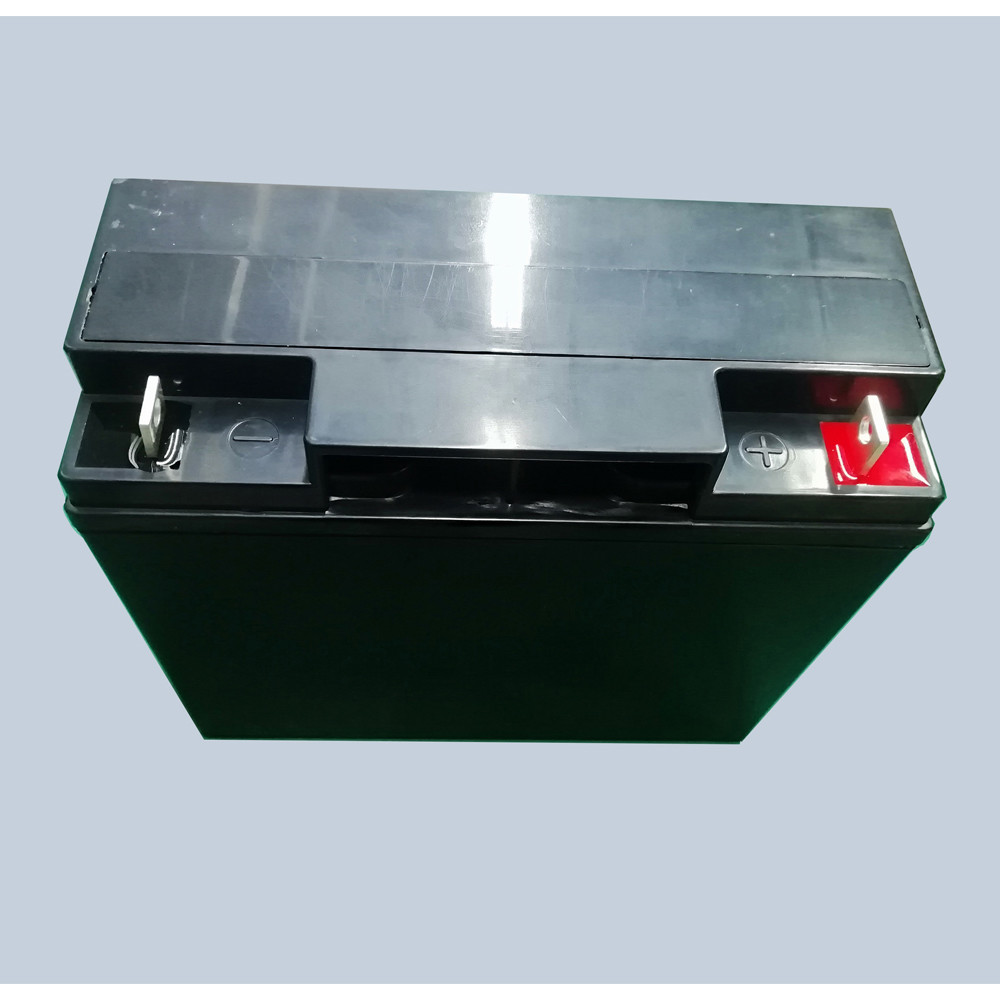

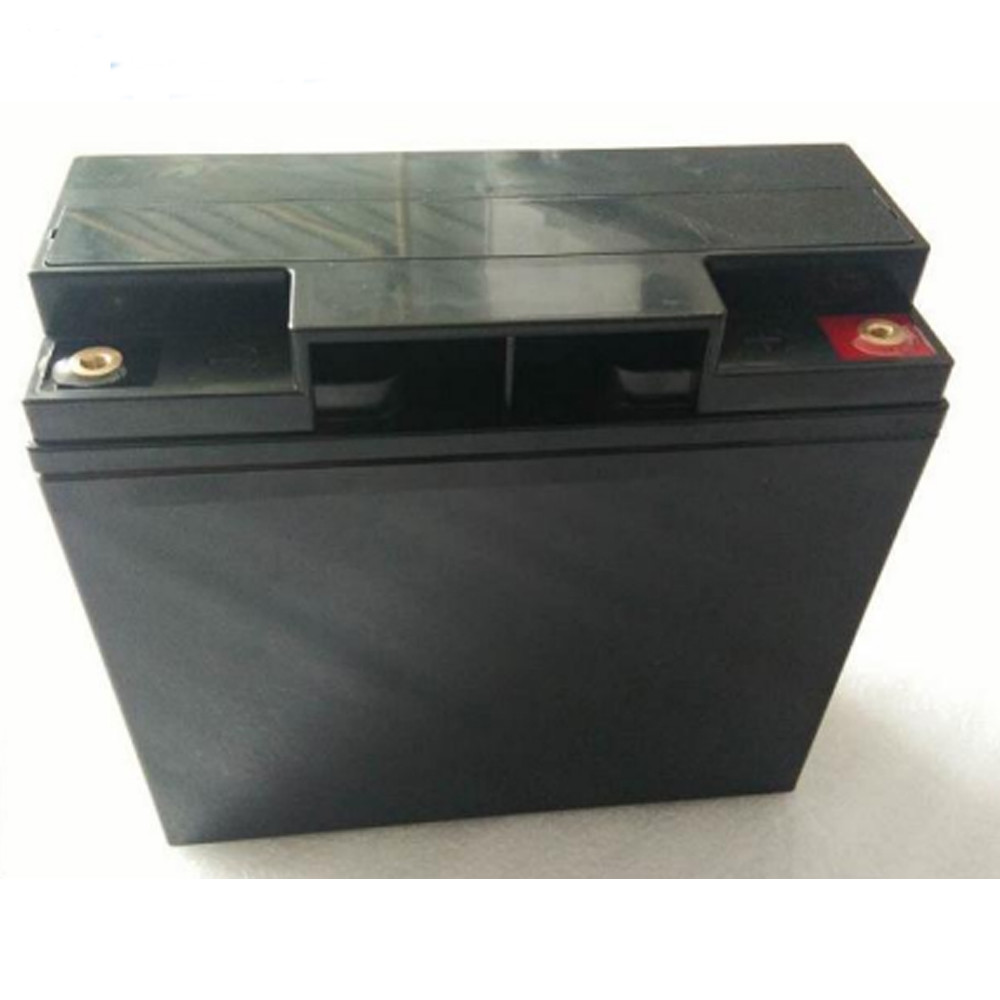

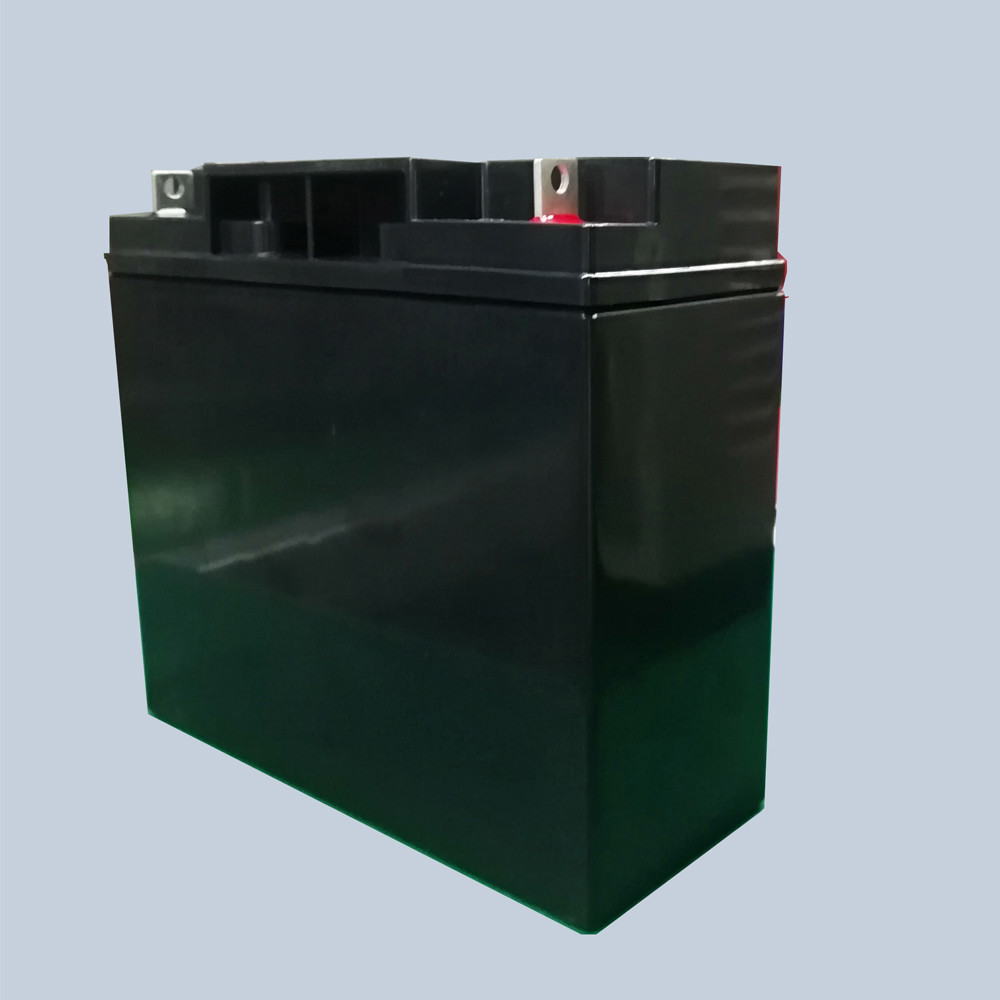

Smart Devices Rechargeable 12.8V20Ah Lifepo4 Lithium Battery Pack CB Certified

Name: Smart Devices Rechargeable 12.8V20Ah Lifepo4 Lithium Battery Pack CB Certified
Brand: Hefei Purple Horn E-Commerce Co., Ltd.
SKU: 12.8V20Ah Lifepo4 Battery
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Purple Horn

Certification: CB,

Model Number: 12.8V20Ah Lifepo4 Battery

Trading Properties

Minimum Order Quantity: 1PCS/ORDER

Price: negotiable

Supply Ability: 10000pcs/day

3.2V10Ah lithium phosphate battery pack

2000 times Lifepo4 Lithium Battery Pack

3.2V10Ah Lifepo4 Lithium Battery Pack

Specifications

Voltage::	12.8V	Capacity::	20Ah
Cycle Characteristic::	2000-4000 Times	warranty::	36 Months
Size::	（181±1）mm （76±1）mm （166±2）mm	Normal Current:	10A
Charging Voltage:	14.4v
High Light:	12.8V20Ah Lifepo4 Lithium Battery Pack , CB Lifepo4 Lithium Battery Pack , 12.8V20Ah rechargeable Lifepo4 Battery

Product Description

Recharge Battery Lithium Ion Battery 12.8V20Ah Lifepo4 Battery Pack

Product Application

The model battery can be replaced for:

Smart Devices, medical devices, mechanical devices, energy storage, Motorcycles batteries, cars batteries, RV batteries, home solar system,Camper batteries, tuk-tuk batteries, sightseeing bus batteries, Pedicab batteries, yacht batteries, three wheeler vehicle batteries, Bank Power supply systems batteries, UPS batteries, Tricycles batteries, Limousine batteries, Telecom Stations batteries, Solar Energy Storage batteries, Wind Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.

Product Specification

Item-recharge battery lithium ion battery, 12.8V20Ah		Parameter
Nominal Voltage		12.8V
Typical Voltage		21.6Ah
Discharge	Normal Current	10A
	Cut-off Voltage	10V
Charge	Charging Voltage	14.4v
	Charging Current	<10A
	Charging Method	CC/CV
	Cut-off Current	0.4A
Inner Resistance	Discharging Inner Resistance	<=45m&OPurple Horn;
Operation temperature/humidity range	Charge	0℃～+45℃
	Discharge	-20℃～+60℃
		When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection
	Humidity	RH<85%, when the environment humdity is higher than 85%, please pay attention to protect
Storage temperature/ humidity range	Temperature	0℃～+40℃ (capacity 80%) recommended long-term storage temperature is 15-25℃
	Humidity	RH<50%, easily oxidized components note sealed
Protection function		Overcharge protection, over discharge protection, temperature protection, balanced function
Material of battery case		PVC
Size		(181±1)mm (76±1)mm (166±2)mm
Cycle		Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut off voltage, rest 0.5-1h, repeat the above steps until 1500 cycles. (capacity retention rate >80%)
