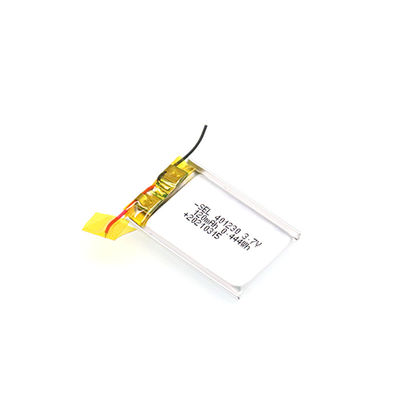

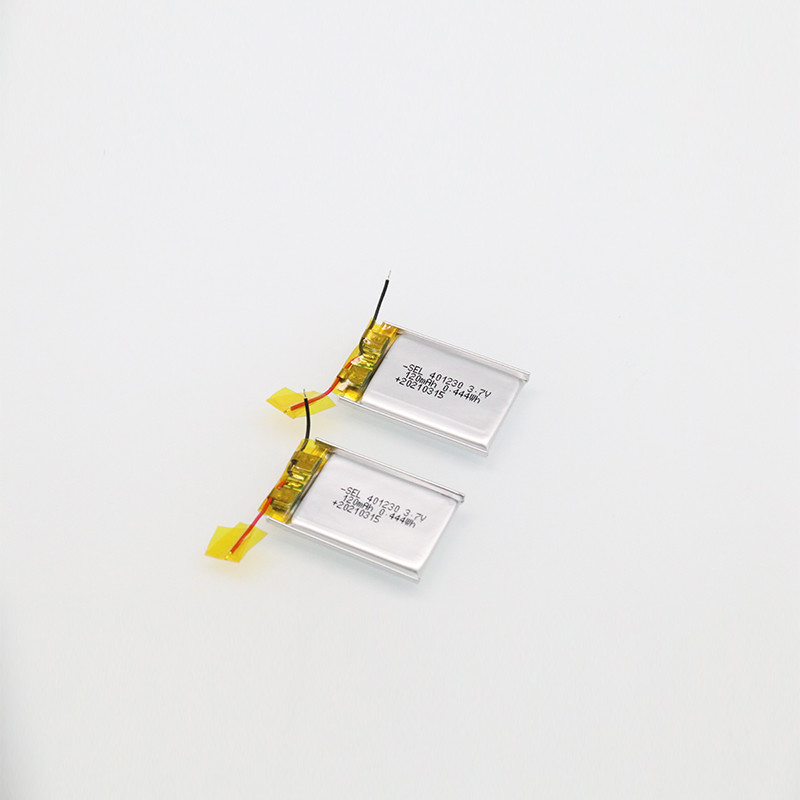

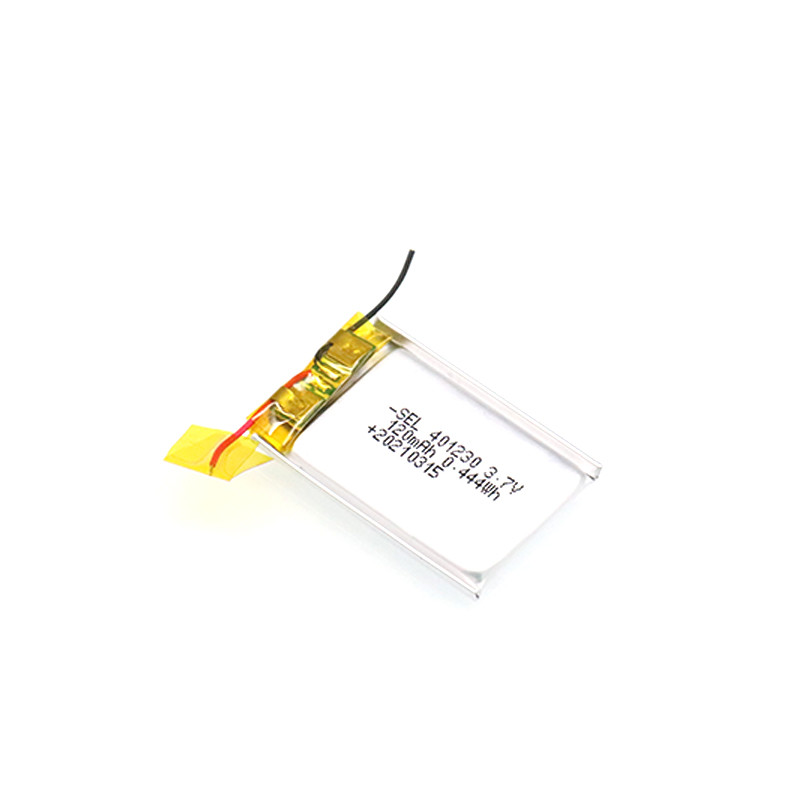

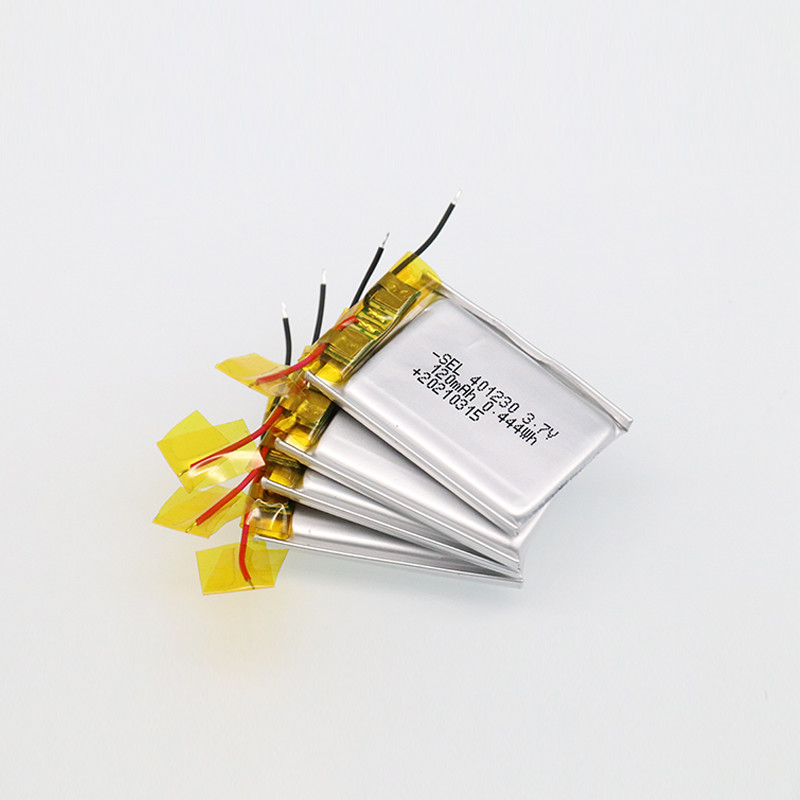

3.7V 120mAh LP302030 Polymer Lithium Battery small size battery
| Nominal Capacity :: | 120mAh | Energy :: | 0.44Wh |
| Nominal Voltage:: | 3.7V | Open Circuit Voltage:: | 3.80~4.00V |
| Cycle Life:: | ≥300 Times | AC Impedance Resistance :: | ≤200mΩ |
| Charging Current(Std.):: | 24mA (0.2CmA) | Charging Current(Max.):: | 120mA (1.0CmA) |
| Charging Voltage:: | 4.2V |
Key Specifications/Special Features:
1. Features:
Nominal Capacity : 120mAh
Energy :0.44Wh
Nominal Voltage: 3.7V
Open Circuit Voltage: 3.80~4.00V
AC Impedance Resistance :≤200m&OPurple Horn;
Charging Current(Std.): 24mA (0.2CmA)
Charging Current(Max.): 120mA (1.0CmA)
Charging Voltage: 4.2V
Discharging Current(Std.): 24mA (0.2CmA)
Discharging Current(Max): 120mA (1.0CmA)
Discharging Cut-off Voltage: 3.0V
Weight Approx :22g
Operating Temperature: Charge :0~+45℃
Discharge : -10~+60℃
Storage Temperature : Less than 1 month -10~+45℃
More than 6 months -10~+60℃
Cycle Life: ≥300 times
FAQ:
1. MOQ
(1) Battery sample orders for testing are welcome.
(2) MOQ is lower, please feel free contact our staff if you need.
(3) It is our honor to provide service for you, no matter how many you order.
2. OEM & ODM
OEM and ODM orders are welcome, just send us your design and we can make your ideas into reality.
3. Quality
(1)100% tested in production. Test one by one before shipping. All the products will go through 5 checks.
(2) Mass production will only start after we get your confirmation of samples.
4. Manufacture
(1) We have our own factory.
(2) All Tewaycell goods are manufacturing by ourselves.
(3) Provide you "customized products" along with the best price.
5. Warranty
1years for battery
6. After-Sale
(1) Timely provide tracking information during the shipping.
(2) Any defectives, we provide free ones along with your next order.
(3) Provide you free new products for testing.
|
Polymer Battery
HHS 302030
|
Nominal voltage
|
3.7V
|
|
|
Nominal capacity
|
120mAh
|
||
|
BMS
|
Built in
|
||
|
Wire & Pin
|
Customized
|
||
|
BASIC SPECIFICATION
|
Charging Voltage
|
4.2V
|
|
|
Max Charge Current
|
120mA (1C)
|
||
|
Max Discharge Current
|
240mA (2C)
|
||
|
Operating temperature
|
Charge:0 C to 45 C Discharge:-20 C to 60 C
|
||
|
Storage Temperature
|
-20 C to 45 C
|
||
|
Cycle life
|
500cycles
|
||
