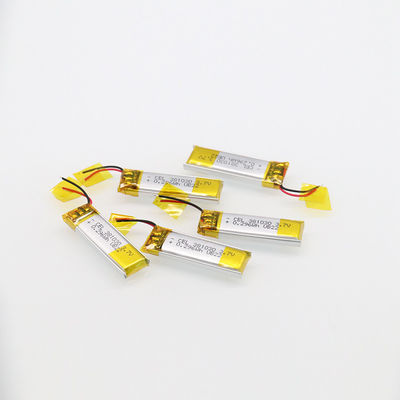

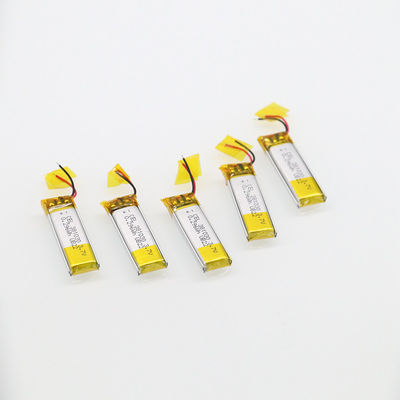

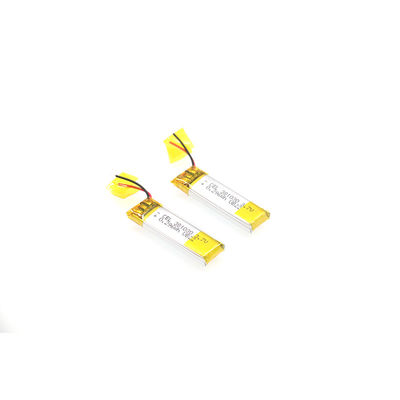

IEC61233 standard 3.7V80mAh Lithium Ion Polymer Battery Smart Wearable Products
| Capacity:: | 80mAh | Size:: | 3.5*15*30 MM |
| Cycle life:: | 500 Times | Voltage:: | 3.7V |
| Weight: | Approx3g | Warranty: | 1 Years |
| High Light: | Purple Horn 3.7V80mAh Lithium Ion Polymer Battery,IEC61233 Lithium Ion Polymer Battery,IEC61233 3.7 v 80mah battery |
||
Key Specifications/Special Features:
1. High energy density: volume energy density can be 460Wh/L
2. Excellent security: no fire, no explore of short-circuit, over-charge, over-discharge, over-current, Shock, vibration, crush, acupuncture.
3. Long cycle lifespan: capacity recovery can be above 80% after 500 cycles
4. High discharge voltage plateau: the 3.6V discharge voltage plateau is more than 42min
5. Environment-friendly: no PB, CD added
6.Flexible size design subject to different space of application
7. Hundreds of moulds for micro size with 10mAh-1000mAh
8. CE/RoHS Directive/REACH/UL/MSDS/UN38.3/IEC61233 standards
Applications:
Bluetooth earphone, smart watch, smart wearable, bank Ukey, POS device, medical equipment and other portable devices.
Trading details:
1) Packing: industrial packing (can be as customer's requirements)
2) Delivery lead time: usually 15-35 business days after payment
3) Payment term: T/T, Western Union, PayPal, L/C
Cells production process:
First from raw materials drying- mixing- coating -electrode drying- calendaring -cutting- punching- stacking- tab welding- short circuit checking- pre packing -electrolyte injection -pre formation- degassing gas -bag cutting -folding- code printing- formation -aging- finished products
| Name | Lithium-ion polymer battery |
| Nominal voltage | 3.7V |
| Nominal capacity | 80mAh |
| Dimensions | (T) 3.2 * (W) 10* (H) 33mm |
| Standard charging current | 0.2C |
| Standard discharging current | 0.2C |
| Max charging current | 1C |
| Max continuous discharging current | 1C |
| Pulse discharging current | 1.5C |
| Cut off voltage | 3.0/4.2V |
| Cycle life | 500 times |
| Charging temperature | 0°C- 45°C |
| Discharging temperature | -20°C- 60°C |
| Storage temperature | -10°C- 45°C (recommend 20°C+/-5°C) |
| Appearance | without scratch, distortion, contamination and leakage |
| PCB | Optional |
| Wire | Optional |
| Connector | Optional |
| Certifications | CE, RoHS, REACH, UL, UN38.3 , IEC 62133 |
