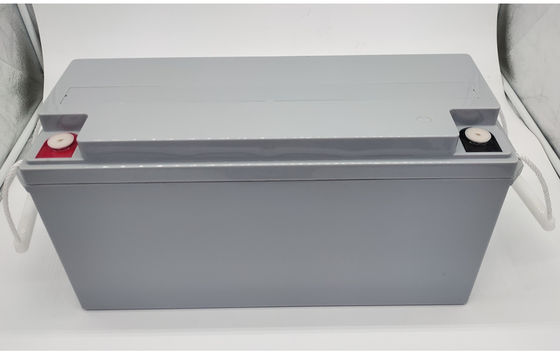

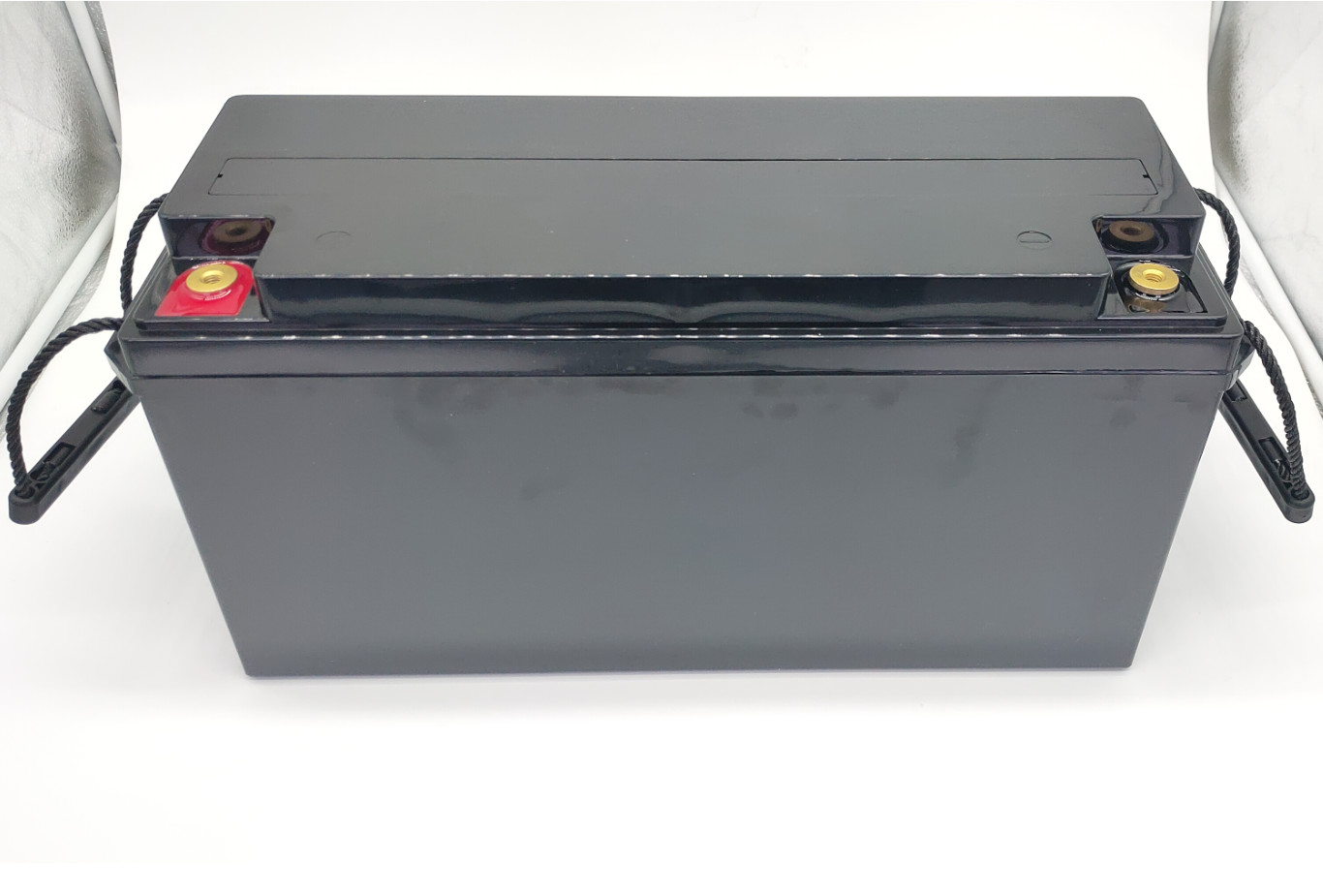

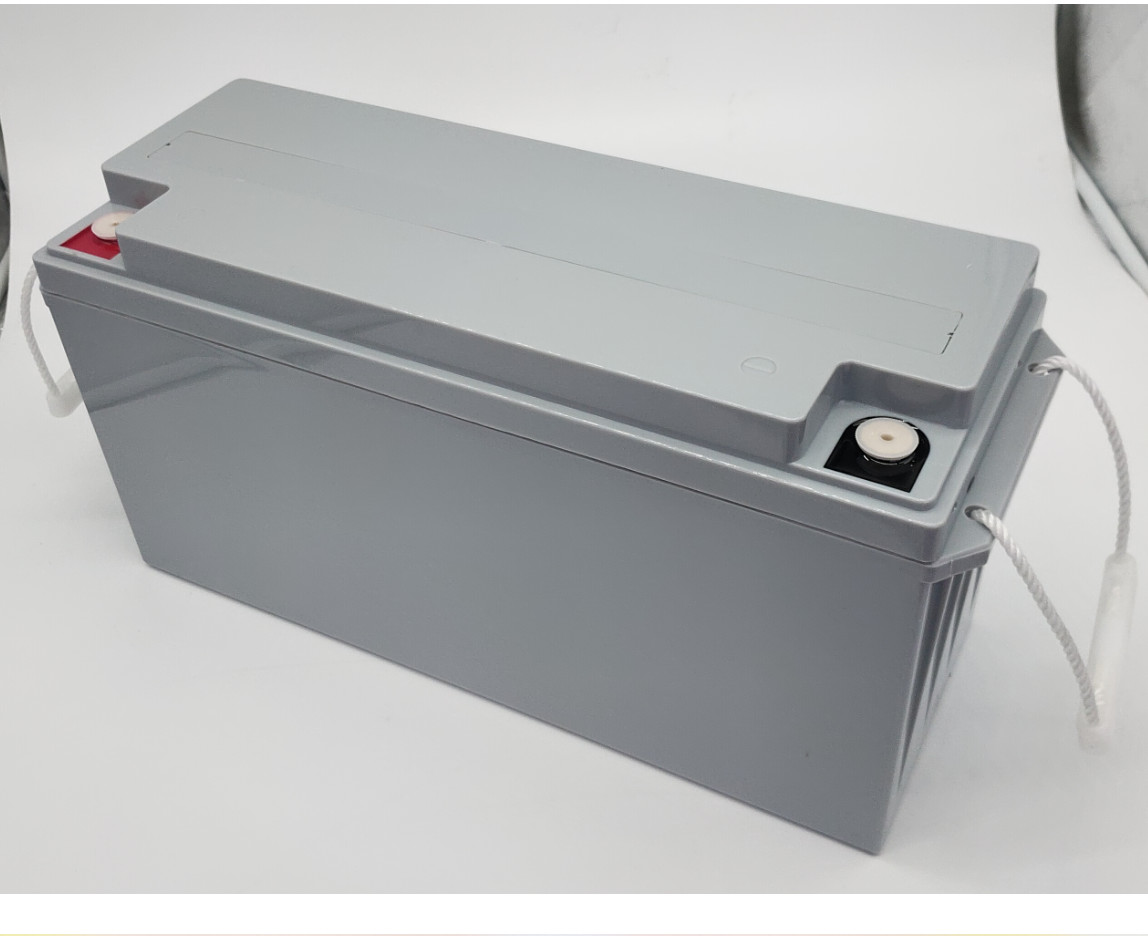

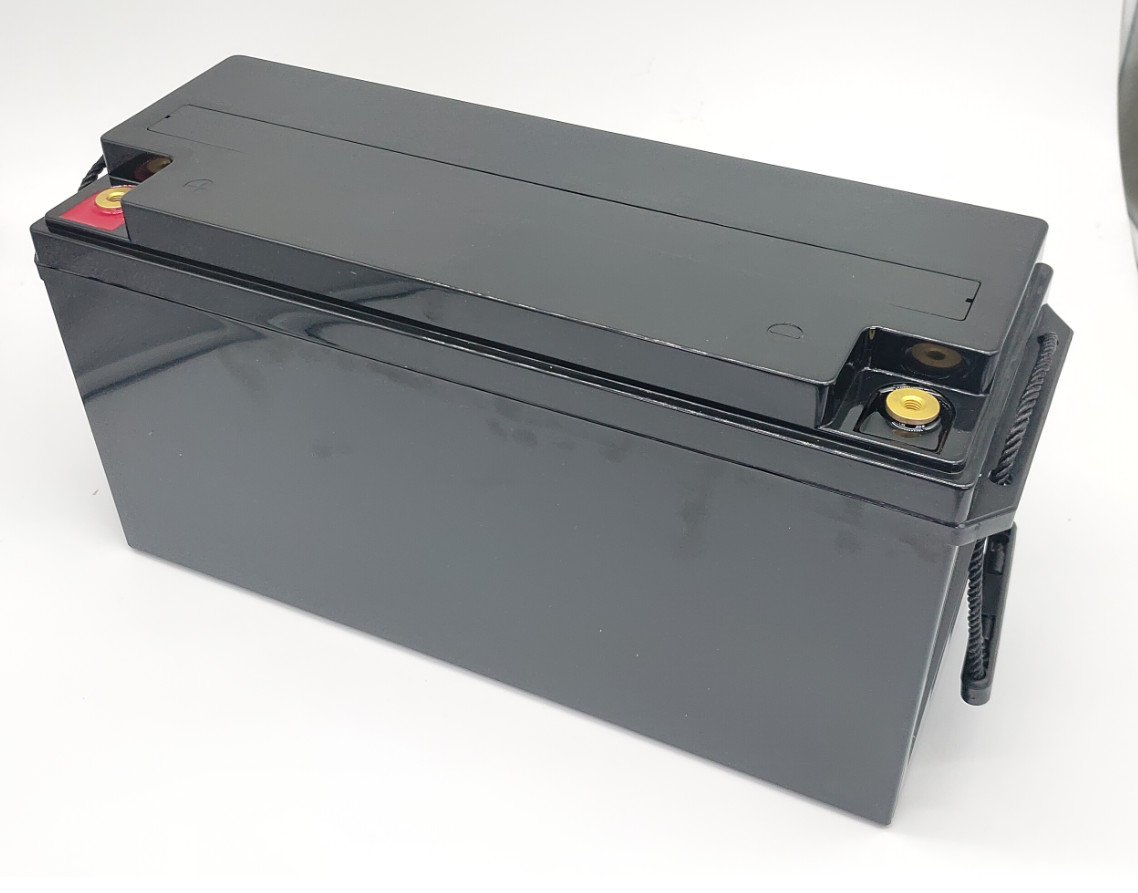

Name: CE Lifepo4 Prismatic Battery 12.8 V 200ah Lifepo4 Ups Replacement Battery
Brand: MEGA
SKU: 12.8V200Ah LiFePO4 Battery Pack

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: Fujian China

Brand Name: MEGA

Certification: CE,ROHS,FCC

Model Number: 12.8V200Ah LiFePO4 Battery Pack

High Light:

Lifepo4 Prismatic Battery 12.8 V 200ah

12.8 V Lifepo4 Ups Replacement Battery

CE Lifepo4 Prismatic Battery 12.8 V 200ah

Payment & Shipping Terms

Packaging Details: 12pcs/box, 4boxes/ctn

Delivery Time: 3-5days

Supply Ability: 10000pcs/day

Specifications

Warranty:: 12 Months

Application:: Toys, Power Tools, Home Appliances, Consumer Electronics

Battery Size:: 490*171*240mm

Weight:: 23kg

Nominal Capacity: 200Ah

Cycle Life: 2500+ Cycles @1C 100%DOD

Peak Discharge Current: 220A(≤ 3s)

Gallery

Product Description

12.8v200Ah LiFePO4 Battery Pack Lithium-ion electricity replaces lead acid

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆ Lighting

Working Voltage	Nominal	12.8 V
	Range	10 V---14.6 V
Nominal Capacity	200Ah
Battery Power	25°C	2560 Wh (100% DOD @ 0.5C rate)
	- 10°C	2048 Wh (80% DOD @ 0.5C rate)
Operation Temperature Range	- 10°C -- 50°C
Continuous Charge Current	40A TBD
Max Charge Current	100A TBD
Continuous Discharge Current	100A TBD
Max Continuous Discharge Current	200 A TBD
Peak Discharge Current	220A(≤ 3s)
Storage Temperature Range	-10~45℃
Weight	22.5±0.1Kg
Self-discharge	30 days ≤2.8% in 25℃
Cycle Life	2500+ Cycles @1C 100%DOD
Level of Protection	IP67

12.8V LiFePO4 Battery Pack series

序号	规格MODEL	标称电压 Nominal Voltage	标称容量Capacity	尺寸Size	充电电流Charge current	充电电压Charge voltage	放电电流Discharge Current	放电电压Discharge Voltage
1	12.8V5Ah	12.8V	5Ah	9070101mm	2A	14.4V-14.6A	10A	10.0V-10.5V
2	12.8V6Ah	12.8V	7Ah	1516595mm	3A	14.4V-14.6A	15A	10.0V-10.5V
3	12.8V8Ah	12.8V	9Ah	15165100mm	4A	14.4V-14.6A	20A	10.0V-10.5V
4	12.8V12Ah	12.8V	12Ah	1519998mm	4A	14.4V-14.6A	25A	10.0V-10.5V
5	12.8V18Ah	12.8V	18Ah	18377156mm	6A	14.4V-14.6A	30A	10.0V-10.5V
6	12.8V20Ah	12.8V	20Ah	18177175mm	8A	14.4V-14.6A	50A	10.0V-10.5V
7	12.8V25Ah	12.8V	25Ah	166175125mm or 168161106	10A	14.4V-14.6A	60A	10.0V-10.5V
8	12.8V33Ah	12.8V	33Ah	194132172mm	10A	14.4V-14.6A	80A	10.0V-10.5V
9	12.8V50Ah	12.8V	55Ah	223150178mm	20A	14.4V-14.6A	100A	10.0V-10.5V
10	12.8V100Ah 带蓝牙bluetooth	12.8V	100Ah	330170220mm	30A	14.4V-14.6A	125A	10.0V-10.5V
11	12.8V100Ah	12.8V	100Ah	330170220mm	30A	14.4V-14.6A	125A	10.0V-10.5V
12	12.8V130Ah	12.8V	130Ah	330170220mm	35A	14.4V-14.6A	150A	10.0V-10.5V
13	12.8V200Ah	12.8V	200Ah	483170240mm	60A	14.4V-14.6A	200A	10.0V-10.5V
