Basic Characteristics
| No. | Item | Specification | |||
| 1, | Cell Model | FT3.2V/6Ah | |||
| 2, | Array mode | 4S13P | |||
| 3, | Nominal Capacity | 78Ah(Standard 0.5C charge and 0.5C discharge) | |||
| 4, | Minimum Capacity | 78Ah | |||
| 6, | Nominal Voltage | 12.8V | |||
| 7, | Initial AC Impedance | ≦3mΩ(at 1kHz after standard charge) | |||
| 8, | Charging Voltage | 14.6V | |||
| 9, | Discharging Voltage | 9.2V | |||
| 10, | Standard charging method | Constant Current:39A(0.5C) | |||
| 11, | Standard discharging method | Constant Current:78A(1C) | |||
| 12, | (≦2.3S) Maximum continuous discharge current(≦2.3S) | Constant Current:156A(2C) | |||
| 13, | Cycle Life | Cycle Life≥1500次 | |||
| 14, | Weight(Kg) | 10.2kg | |||
| 15, | Operating Temperature | Charging:0℃～55℃ Discharging:-20℃～60℃ |
|||
| 16, | Storage Temperature | 1 month: -20℃～60℃ 3months: -20℃～45℃ 1 year: -20℃～25℃ |
|||
| 17, | Relative Humidity | 65±20% | |||
| 18, | Delivery Voltage | ≥12.8V | |||
| 19, | Water proof grade | 0 | |||
| 20, | Charge retention and capacity recovery capability |
Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate ≥90%, Recovery rate of charge≥90 |
|||
Application:

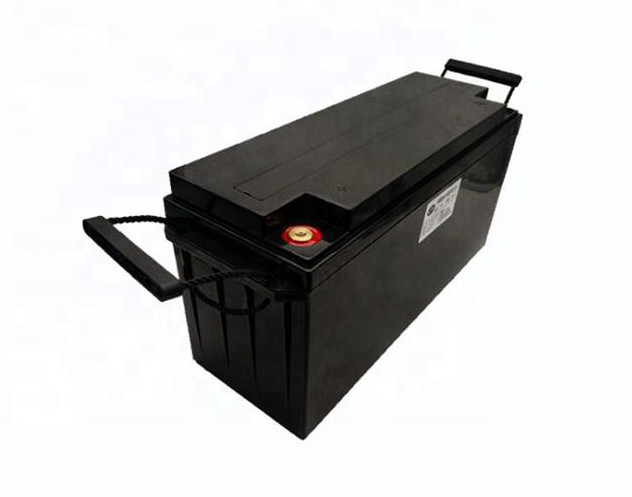

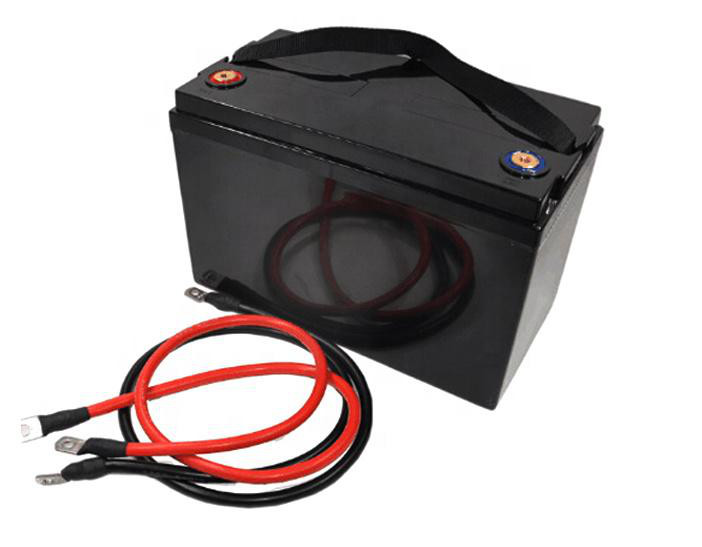

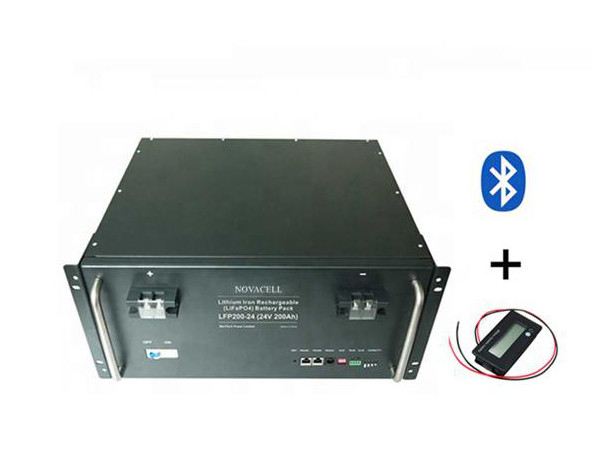

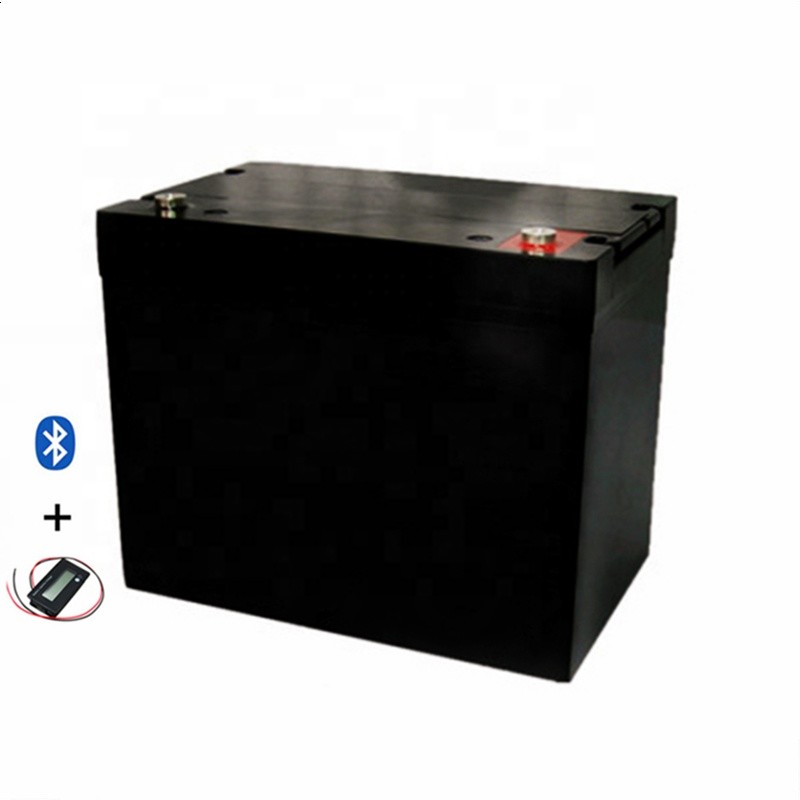

Picture for Similar12.8V 78Ah LiFePO4 battery PACK
| 序号 | 规格MODEL | 标称电压 Nominal Voltage | 标称容量Capacity | 尺寸Size | 充电电流Charge current | 充电电压Charge voltage | 放电电流Discharge Current | 放电电压Discharge Voltage |
| 1 | 12.8V5Ah | 12.8V | 5Ah | 90*70*101mm | 2A | 14.4V-14.6A | 10A | 10.0V-10.5V |
| 2 | 12.8V6Ah | 12.8V | 7Ah | 151*65*95mm | 3A | 14.4V-14.6A | 15A | 10.0V-10.5V |
| 3 | 12.8V8Ah | 12.8V | 9Ah | 151*65*100mm | 4A | 14.4V-14.6A | 20A | 10.0V-10.5V |
| 4 | 12.8V12Ah | 12.8V | 12Ah | 151*99*98mm | 4A | 14.4V-14.6A | 25A | 10.0V-10.5V |
| 5 | 12.8V18Ah | 12.8V | 18Ah | 183*77*156mm | 6A | 14.4V-14.6A | 30A | 10.0V-10.5V |
| 6 | 12.8V20Ah | 12.8V | 20Ah | 181*77*175mm | 8A | 14.4V-14.6A | 50A | 10.0V-10.5V |
| 7 | 12.8V25Ah | 12.8V | 25Ah | 166*175*125mm or 168*161*106 | 10A | 14.4V-14.6A | 60A | 10.0V-10.5V |
| 8 | 12.8V33Ah | 12.8V | 33Ah | 194*132*172mm | 10A | 14.4V-14.6A | 80A | 10.0V-10.5V |
| 9 | 12.8V50Ah |
12.8V | 55Ah | 223*150*178mm | 20A | 14.4V-14.6A | 100A | 10.0V-10.5V |
| 10 | 12.8V100Ah 带蓝牙bluetooth |
12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 11 | 12.8V100Ah | 12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 12 | 12.8V130Ah | 12.8V | 130Ah | 330*170*220mm | 35A | 14.4V-14.6A | 150A | 10.0V-10.5V |
| 13 | 12.8V200Ah | 12.8V | 200Ah | 483*170*240mm | 60A | 14.4V-14.6A | 200A | 10.0V-10.5V |
