Home /Products/Emergency Light Battery Replacement/3.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin

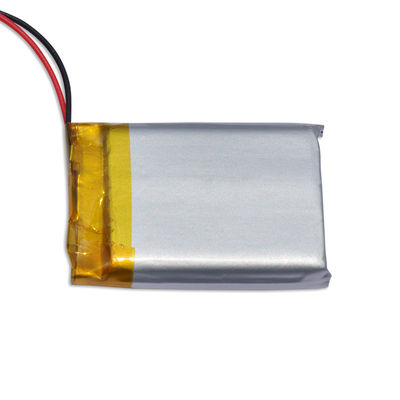

3.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin
10PCS/ORDER
MOQ
negotiable
Price
3.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Fujian China
Brand Name: MEGA
Certification: CE, RoHS, REACH, UL, UN38.3 , IEC 62133
Model Number: 600mAh 3.7v Polymer Lithium Battery
High Light:

500830 Emergency Light Battery Replacement

,

100mAh Emergency Light Battery Replacement

,

100mAh exit sign battery replacement
Payment & Shipping Terms
Packaging Details: 600pc in a carton
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal
Supply Ability: 1000000 Piece/Pieces per Month
Specifications
Capacity:: 600mAh
Size:: 7.0mm(T)*25mm(W)*35mm(L)
Cycle Life:: 500 Times
Voltage:: 3.7V
Energy:: 7.4 Wh
Resistance: ≤35mΩ
Product Description

Key Specifications/Special Features:

Type: Lithium polymer battery

Model: LP553040-600mAh

Nominal voltage: 3.7V

Nominal Capacity:600mAh

Max.charge current: 1.0C

Max.discharge current: 1.0C

Charge current:

-Standard Charging: 0.5C

-Rapid charge: 1.0C

Standard Charging method: 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C

Charging time:

-Standard Charging: 3.0 hours(Ref.)

-Rapid charge: 2 hours(Ref.)

Discharge cut-off voltage: 2.45V~3.0V

Operating temperature: -20°C~+60 °C

Storage temperature: 25°C

Application: PDA, tablet PC, e-book, MID, mine lamp, bluetooth headset,MP3,MP4,MP5, power bank and so on.



Item Nominal Parameter Note
1. Model 702535
2. Nominal Capacity 600mAh
3. Nominal Voltage 3.7V
4. Resistance ≤35mΩ
5. Charging Voltage 4.2V
6. Discharging Voltage 3.0V
9. Standard Charging Current 120mA 0.2C5mA, About 6H.
10. Max Charging Current 600mA 1.0C5mA, About 1.5H.
11. Standard Disharging Current 120mA 0.2C5mA
12. Max Discharging Current 600mA 1.0C5mA
13. Cycle Life 500 ≥80% of Nominal Capacity
14. Operating
Temperature		 Charge 0~45℃
Discharge -20~60℃
15. Storage Less than 3 months -10~40℃
More than 3 month -20~35℃
16. Weight
17. Energy 7.4Wh
18. Dimension Cell 7.0mm(T)*25mm(W)*35mm(L)
Battery-With PCM 7.1mm(T)*25mm(W)*37.5mm(L)

3.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin 03.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin 13.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin 2

 3.8V 100mAh 500830 Emergency Light Battery Replacement Ultrathin 3
