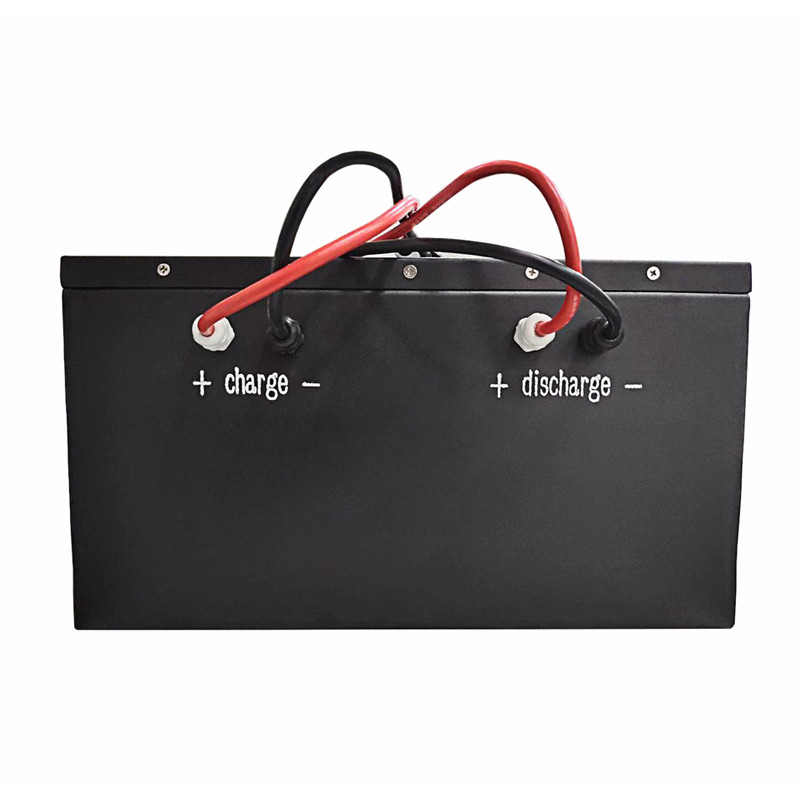

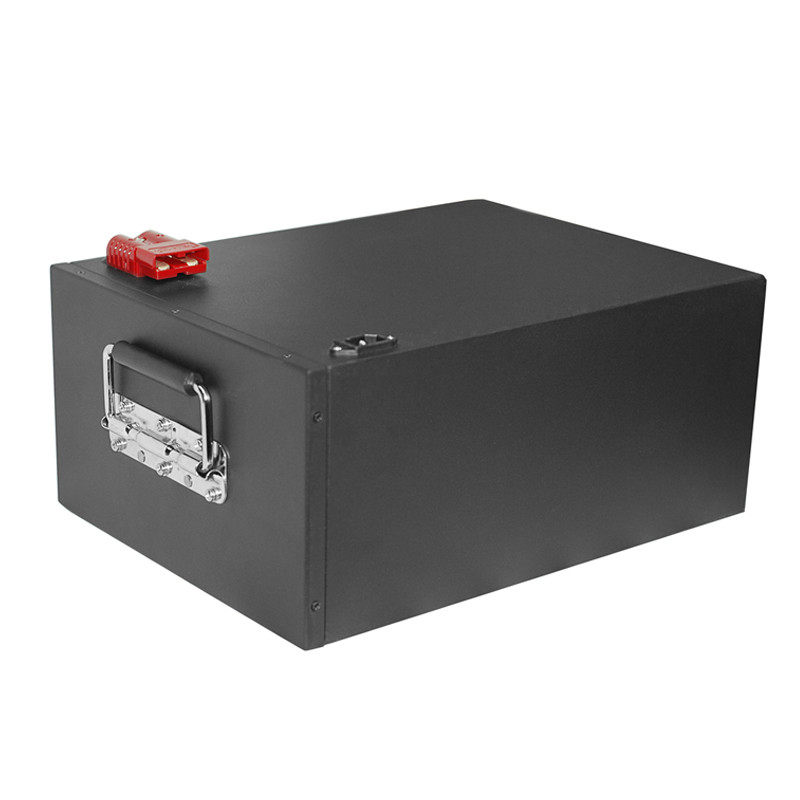

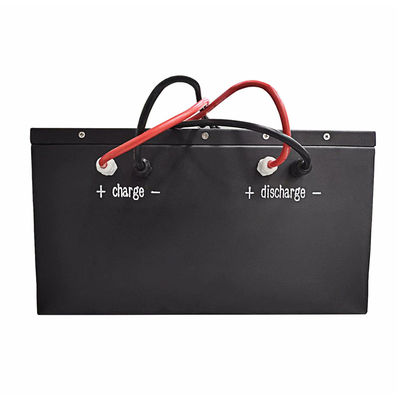

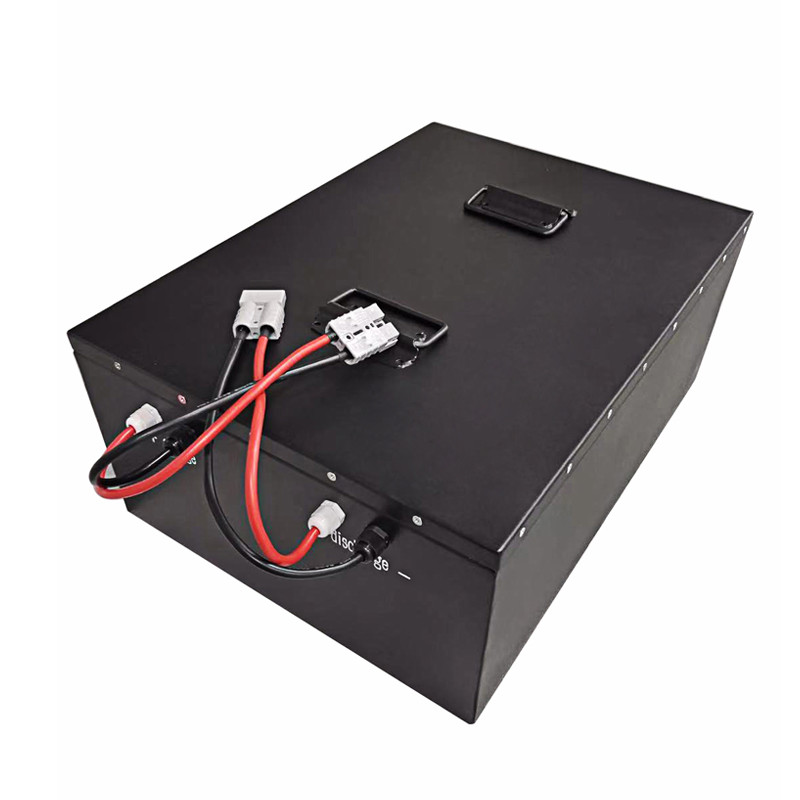

Customized LiFePO4 48V 60V 72V Electric Vehicle Battery Lithium Ion Pack for EV Cars/Storage System
Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery 72V 48V 60V 100Ah , created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less.
Product Details
| Item | 48V50Ah | 48V100Ah | 60V40Ah | 60V100Ah | 72V30Ah | 72V100Ah | |
| Dimension (including terminals) | 350x305x220mm | 560x520x270mm | 400x180x290mm | 560x340x280mm | 480x180x290mm | 560x330x330mm | |
| Weight | Appx. 25Kg | Appx. 66.5Kg | Appx. 27Kg | Appx.70Kg | Appx. 24Kg | Appx.76Kg | |
| Min. capacity |
50Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
40Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
30Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
|
| Terminal | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable | |
| Voltage | Max. | 58.4 V | 56 V | 73 V | 73 V | 87.6 V | 87.6 V |
| Nominal | 51.2 V | 51.2 V | 64 V | 64 V | 76.8 V | 76.8 V | |
| Min. | 40 V | 40 V | 50 V | 50 V | 60 V | 60 V | |
| Max. Continuous Discharging Current | ≤50A | ≤150A | ≤40A | ≤50A | ≤30A | ≤100A | |
|
Communication |
CAN | ||||||
| Temp. Condition | Operation (Charge): 0 ~ 45℃ | ||||||
| Operation (Discharge) : -20 ~ 60℃ | |||||||
| Storage : -20 ~ 60℃ | |||||||
| Self-Discharge Rate | 100% SOC, 25℃, 1month: ≤3% | ||||||
| Cycle Life | 0.2C, 100% DOD 25℃: 3,000 cycles | ||||||
| Abuse test |
Overcharge, Over-discharge, Short, Heat,Nail, Crush GB/T 31485-2015 |
||||||
