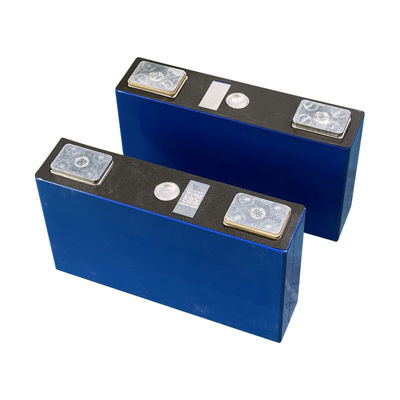

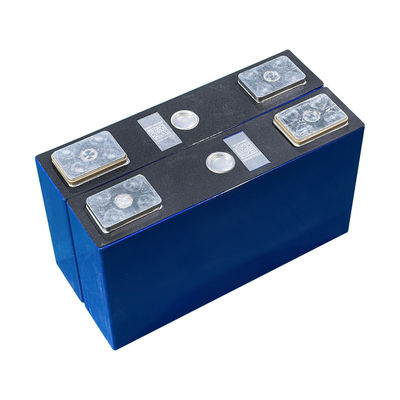

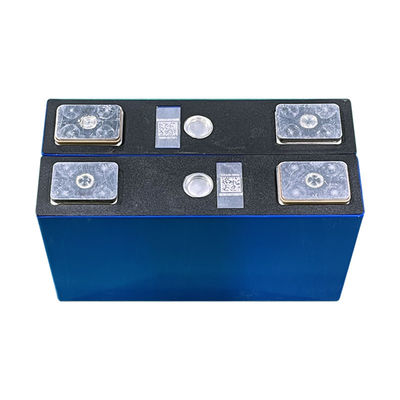

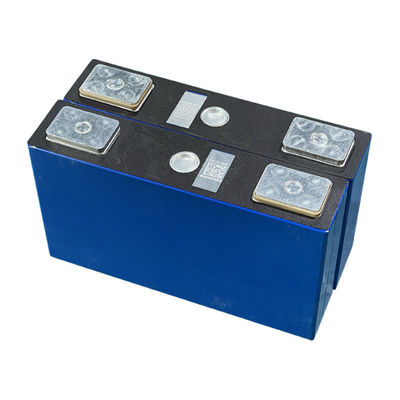

LFP 3.2V 70Ah lithium ion battery LFP LiFePO4 70Ah battery High power battery for EV GOLF CART Camping
Performance Advantage
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
3.2V
|
|
2
|
Nominal Capacity
|
≥70Ah
|
|
3
|
Standard Charge Current
|
24A-60A (0.2C-0.5C rate)
|
|
4
|
Max. Charge Current
|
120A (1C rate)
|
|
5
|
Continuous Discharge current
|
1.5C (105A)
|
|
6
|
Peak Discharge Current
|
2C(140A)
|
|
7
|
Charge Cut-off Voltage
|
3.65V
|
|
8
|
Discharge Cut-off Voltage
|
2.0V
|
|
9
|
Inner Resistance
(Impedance) |
≤ 1m&OPurple Horn; (At 0.2C rate, 2.0V cut-off)
|
|
10
|
Weight
|
1.44±0.05kg
|
|
|
|
Length:173 mm
Width: 41.0 mm Height: 97.01 mm |
|
12
|
Operating Temperature
|
Temperature: -20~55℃
Humidity: ≤85%RH |
|
13
|
Storage Temperature/Humidity
|
5℃~35℃
|
|
14
|
Cycle Life
|
≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
