Grade A Complete QR Code 4000 circles LiFePo4 battery cell 3.2v 176AH

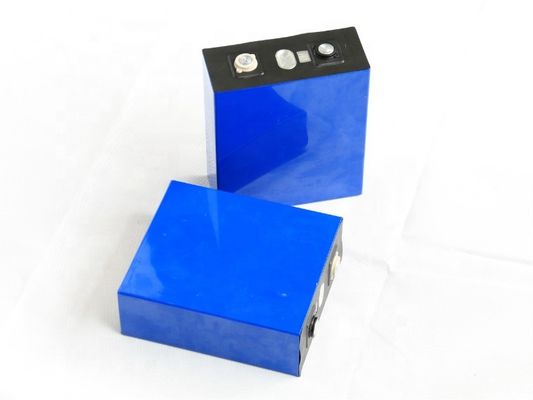

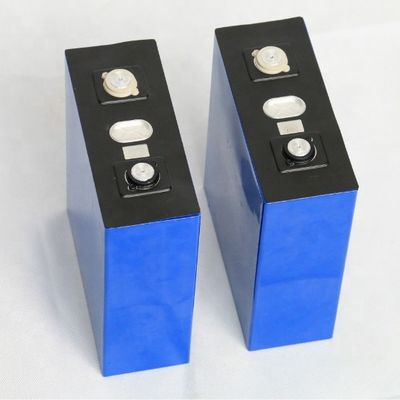

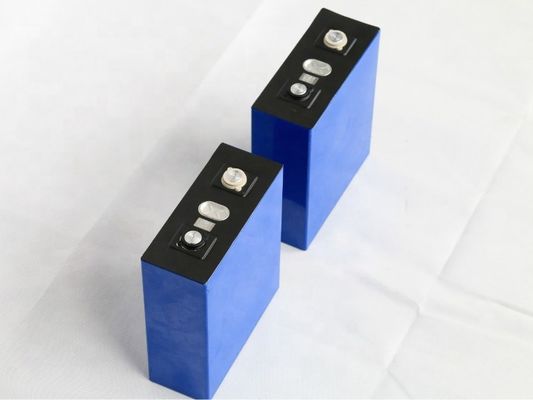

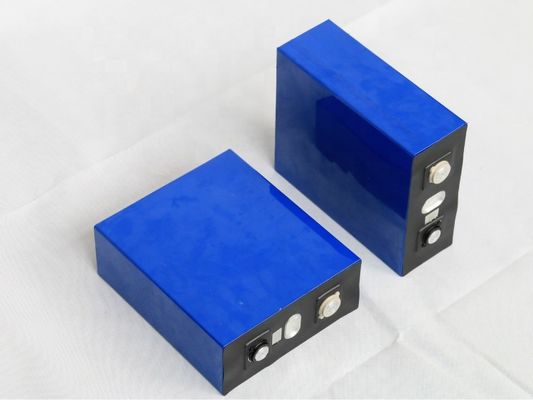

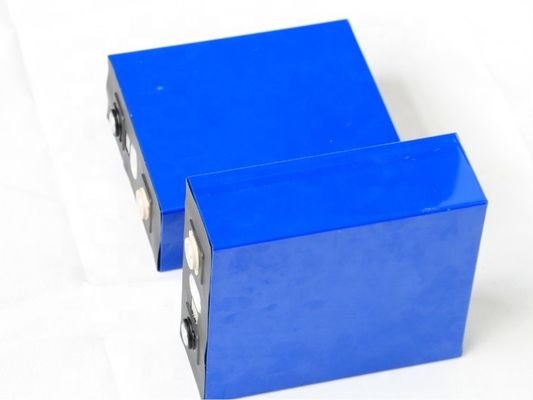

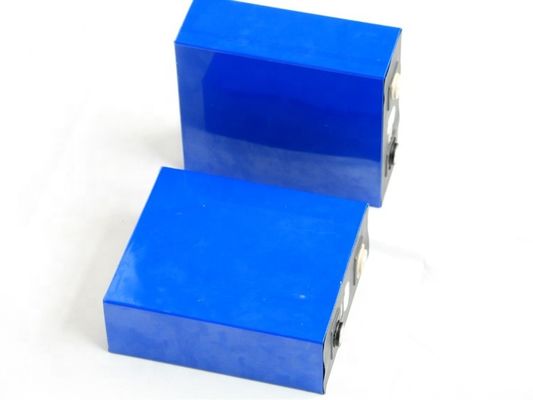

3.2V 176Ah LiFePO4 Battery Cell
• High lifespan: 4000 cycles
• Deep discharge allowed up to 100 %
• Dimension: 52*174*201mm
• Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away, no fire or explosion risks)
• Embedded BMS (Battery Management System) : improve lifespan AND secure the battery
• No Lead, no heavy metal, no toxic element • Calendar life > 10 years
• Excellent temperature robustness (-30 °C up to +55 °C)
• Constant power during discharge (very low internal resistance)
• Very low Peukert’s losses (energy efficiency >96 %)
• Very low self discharge (<3 % per month)>
• No memory effect
• About 50% lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy
• Certification :UL, CE, RoHS, UN 38.3
| Nominal Voltage | 3.2V |
| Capacity | 176Ah |
| Core size | 52*174*201mm |
| Cell Weight | 3.8KG |
| Charging Current | Standard Charging:0.2C |
| Max Charging:1C | |
| Max Discharging Rate | Continuous Discharging:2C |
| Cut-off Voltage | Charging:3.65V |
| Discharging:2.5V | |
| Internal Resistance | ≤ 0.5mΩ (At 0.2C rate, 2.0V cut-off) |
| Working Temperature | Charging: -10°C~55°C |
| Discharging: -20°C~70°C | |
| Storage Temperature | ≤1month: -10–45°C |
| ≤3month: 0–30°C | |
| ≤6month: 20±5°C | |
| Life Cycle | >4000 times (100%D0D) |
