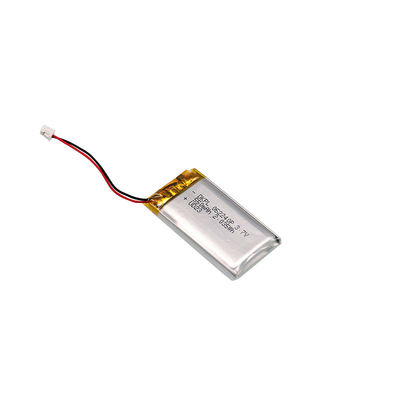

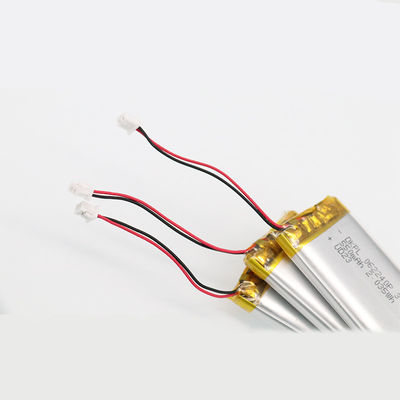

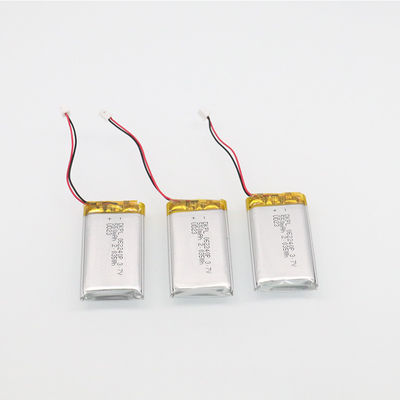

JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment

Basic Properties
Place of Origin: China
Brand Name: Purple Horn
Certification: CE/RoHS/UN38.3/MSDS
Model Number: 550mAh 3.7v Polymer Lithium Battery
Trading Properties
Minimum Order Quantity: 10PCS/ORDER
Price: negotiable
Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal
Supply Ability: 1000000 Piece/Pieces per Month
Tags

1.85 Wh 3.7 V 500mah Lipo Battery

1.85 Wh GPS Tracker Battery

3.8 v lipo battery 3.61Wh
Specifications
Capacity:: 550mAh Cell Dimensions:: 6.0*25*40mm
Cycle life: 500 Times Voltage:: 3.7V
Weight: 10.4g Warranty Period:: 1 Years
High Light:

3.7 v 550mah lipo battery

,

JP602540-5C 3.7 V 550mah Lipo Battery

,

lipo lithium polymer battery 10.4g
Product Description

Key Specifications/Special Features:

Battery Type: Li-ion battery
Nominal Voltage: 3.7V
Nominal Capacity:550mAh 25ºC,C10
Nominal Energy: 7.53Wh 25ºC,C10
Operation Voltage: 2.85-3.65V
Operation Temperature Charge: 0°C - 55°C | Discharge: -20°C - 60°C
Cycle Life : 100%DOD>3000 cycles (2.035Wh 25ºC,C10)
Cycle Life : 80%DOD>4000 cycles (1.6Wh 25ºC,C10)
Cycle Life : 50%DOD>6000 cycles (1Wh 25ºC,C10)
Model: 20200814
Size: 6x25x40mm
Terminal Type: M6
Environment Protection: IP65
Product Description
JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 0JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 1JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 2

◆ 10 years of li-polymer battery manufacture & export experience

◆ Excellent quality, advanced services and competitive prices

◆ Reply within 24 working hours

◆ Professional R&D team supporting

Rechargeable lipo battery JP602540-5C 550mAh 3.7v for electronic equipment
Battery Type
Li-Polymer
Material
LiCoO2/NMC
PN
602540-5C
Voltage/Capacity
3.7V/550mAh
Weight
Approx 10.4g
Shape
Soft pack
Dimensions
6.1(T)x25.5(W)x42.5(L)mm MAX
Package
Inner Tray + Carton
Cycle Life
≥500 times
Warranty
12 months
Charge Info
Charge Cut-off Voltage : 4.20V±0.05V
Charging method: CC/CV
Standard Charge Current : 2750 mA (5C)
Max Charge Current: 2750mA (5C)
Discharge Info
Discharge Cut-off Voltage : 3.0V
Max Constant Discharge Current : 2750mA/Customized
Working
Temperature
Standard Charge: 0~+40℃
Standard Discharge: -20~+60℃
Production Lead Time
In stock: 5-7 working days; Out of stock: 5-6 weeks

◆ Production Reference: GB/T18287-2000, UL1642 and IEC61960-1:2000.

JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 3

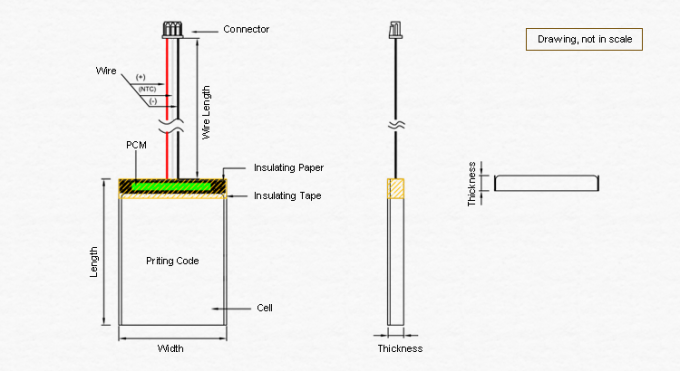

Thickness MAX
Width MAX
Length MAX
Wire Length
Connector
6.1mm
25.5mm
42.5mm
UL1571 24# 60mm
JST PHR-2 2.0mm pitch
JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 4

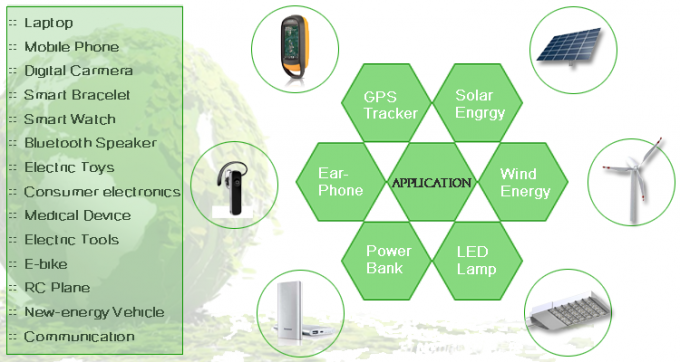

Application
JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment 5
