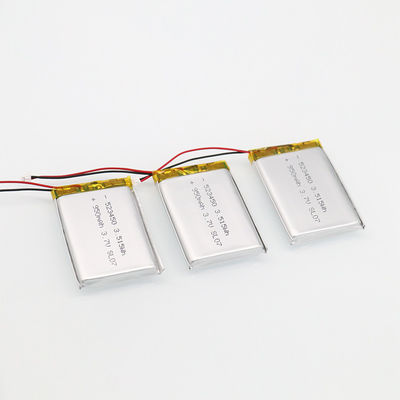

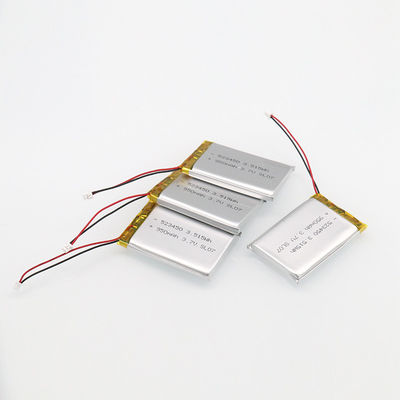

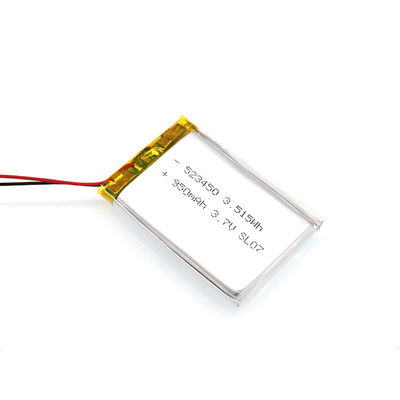

OEM ODM 852940 3.7v950mah Lithium Ion Polymer Battery For Mp3 Mp4 Headset

Name: OEM ODM 852940 3.7v950mah Lithium Ion Polymer Battery For Mp3 Mp4 Headset
Brand: Hefei Purple Horn E-Commerce Co., Ltd.
SKU: 950mAh 3.7v Polymer Lithium Battery
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Purple Horn

Certification: CE/RoHS/UN38.3/MSDS

Model Number: 950mAh 3.7v Polymer Lithium Battery

Trading Properties

Minimum Order Quantity: 10PCS/ORDER

Price: negotiable

Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal

Supply Ability: 1000000 Piece/Pieces per Month

1.85 Wh 3.7 V 500mah Lipo Battery

1.85 Wh GPS Tracker Battery

3.8 v lipo battery 3.61Wh

Specifications

Cycle life::	500 Times (80%DOD)	Nominal voltage:	3.7V
Nominal Capacity:	950mAh	Dimension:	8.52940 Mm
Discharge cut-off voltage:	2.45V~3.0V	Operating temperature:	-20°C~+60 °C
Storage temperature:	25°C
High Light:	RoHS 3.7v950mah Lithium Ion Polymer Battery , 852940 Lithium Ion Polymer Battery , 852940 3.7 v 950mah battery

Product Description

Key Specifications/Special Features:

3.7V 950mAh Lithium Battery Li-polymer Smart Bluetooth Device Battery,IOT Lipo Battery
with IEC62133 UN38.3
Specifications:
1, Part number: HPL503450-950mAh
2, Battery type: Lithium Polymer battery
3, Battery power: 3.7V 950mAh 3.515Wh
4, Standard discharge current: 0.5C 475mA
5, Standard charge (0.2C): 4.2V 190mA
6, Max. discharge current: 1.0C 950mA
7, Battery impedance: ≤180m&OPurple Horn;
8, Operating temperature: 0 - 45°C (charging), -20 - 60°C (discharging)
Design scheme
1, IC: S-8261AANMD-G3J+8205*2+10K NTC
2, Over charge protection voltage: 4.275±0.025V
3, Over discharge protection voltage: 2.30±0.05V
4, Over current protection current: 3-5A
5, Over charge release voltage: 4.175±0.025V
6, Over discharge release voltage: 2.40±0.05V
7, Impedance: ≤180m&OPurple Horn;
8, Operating temperature: -40 - 85°C
Battery feature
1, Storage for 24 hours at 85°C, battery capacity retention rate more than 90%, battery thickness expansion rate below 5%
2, Storage for 4 hours at 90°C, battery capacity retention rate more than 95%, battery thickness expansion rate below 5%
3, Storage for 2 hours at 100°C, battery thickness expansion below 5%
Certification
1, DG Certification, UL1642, IEC62133, UN38.3-DGM, UN38.3-Shanghai TECH, UL-CICC Test report, MSDS, UN38.3
2, Available for CE, FCC, CB, KC, PSE, EN62133
Hypercell advantages
1, More than 450 models which could meet different customer's requirement.
2, Customization.
3, 5 chemical R&D team, 8 engineers (structural, electrical and quality) could provide profession support for your product.
4, High automatic production line could support 40, 000 pieces output every day.

Specification

Names	Specifications
Type	Lithium polymer battery
Nominal voltage	3.7V
Nominal Capacity	950mAh
Dimension	8.52940 mm
Mode	950mAh
Max.charge current	1.0C
Max.discharge current	1.0C
Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time	Standard Charging: 3.0 hours(Ref.) Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage	2.45V~3.0V
Operating temperature	-20°C~+60 °C
Storage temperature	25°C
Weight	19 g
Application	PDA, tablet PC, e-book, MID, mine lamp, headset,MP3,MP4,MP5, power bank and so on.
