| T | 18.2mm max. |  |
| W | 36.6mm max. | |
| L | 65.2mm max. | |
| A | 45+3.0/-3.0 mm | |
| B | 2.5±0.2 mm |
Battery Raw Materials
| Chemical Name | Molecular formula | Chemical code | In % by Weight |
| Aluminum Foil | Al | 7429-90-5 | 8.0% |
| Copper Foil | Cu | 7440-50-8 | 10.0% |
| Lithium cobalt oxide | LiCoO2 | 12190-79-3 | 48.0% |
| Carbon | C | 1333-86-4 | 15.0% |
| Lithium Hexafluorophoshate | LiPFe | 21324-40-3 | 10.0% |
| Polypropylene | PP | 9003-02-0 | 2.0% |
| Nickel | Ni | 7440-02-0 | 2.0% |
| Nylon | -- | 9008-75-7 | 5.0% |
Product Parameter

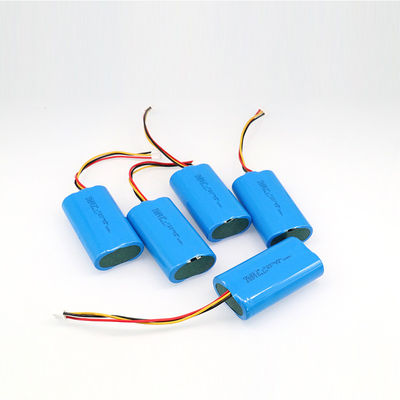

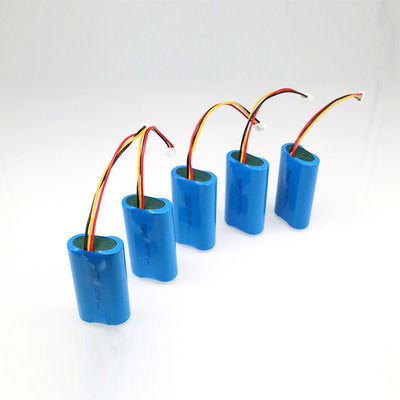

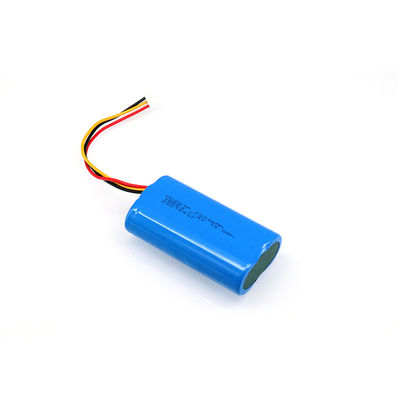

| Type | Rechargeable 18650 7.4v 2000mah li-ion battery cylindrical lipo 2S 7.4v lipo battery |
| Reference Certification | CB, IEC62133, KC, CE, UN38.3, MSDS. |
| Charge voltage | 8.4V |
| Nominal voltage | 7.4V |
| Nominal capacity | 2000mah |
| Charge current Standard Charging | 0.5C |
| Charge current Rapid charge | 1.0C |
| Charging time Standard Charging | 6.0 hours (Ref.) |
| Rapid charge | 2.0 hours (Ref.) |
| Cycle Life | 500 - 800 times |
| Operating temperature | Charging : 0℃ ~ 55℃ |
| Discharging : -20℃ ~ 65℃ | |
| Max. charge voltage | 4.3v |
| Max. charge current | 1C |
| Max discharge current | 1C |
| Weight | 96g |
