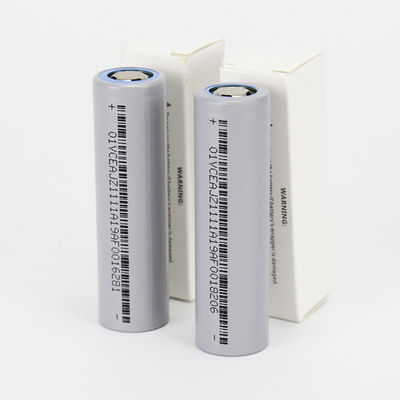

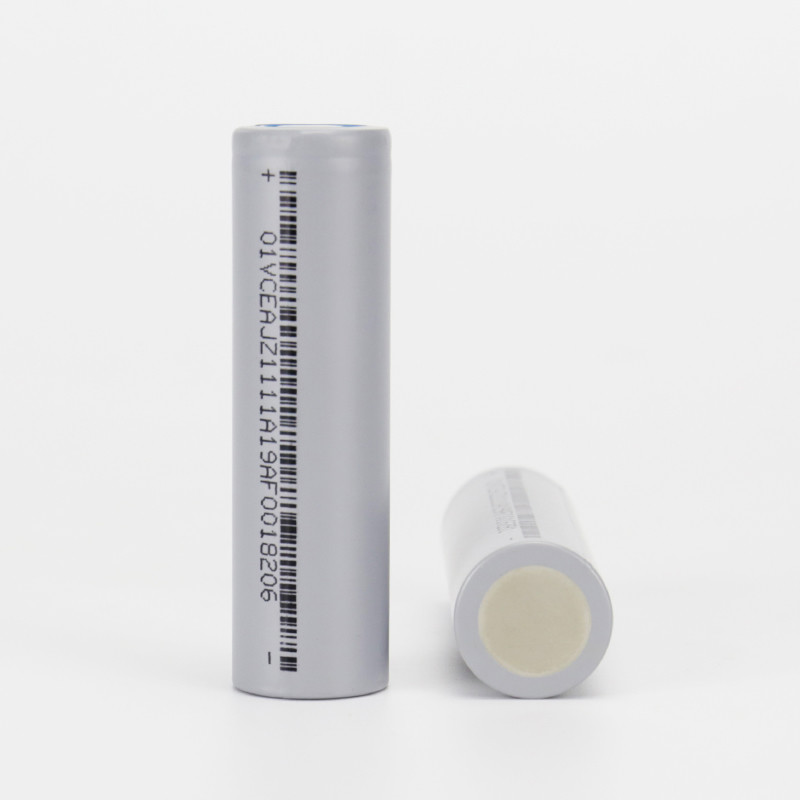

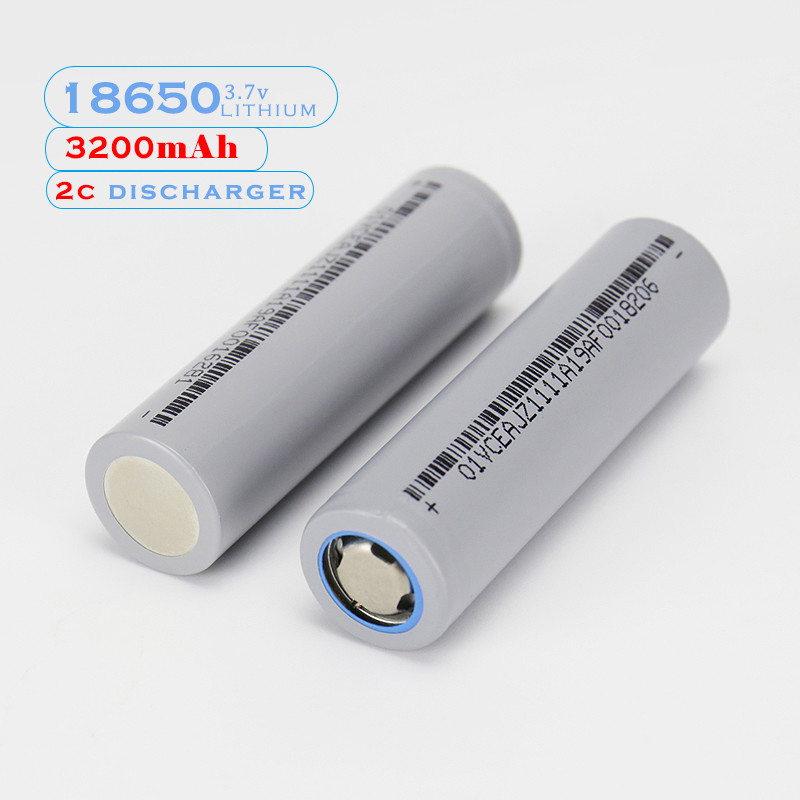

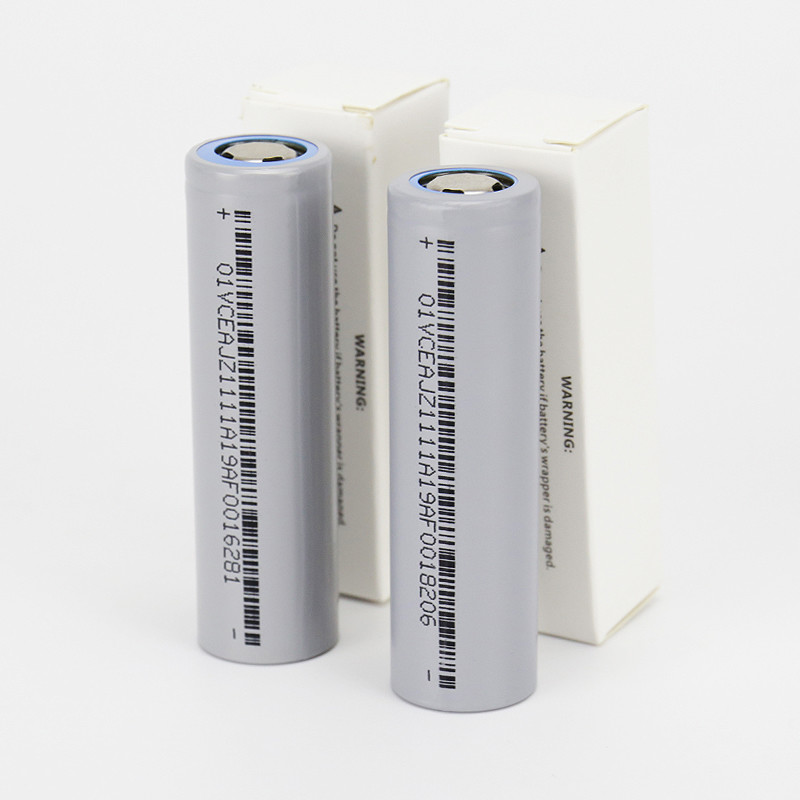

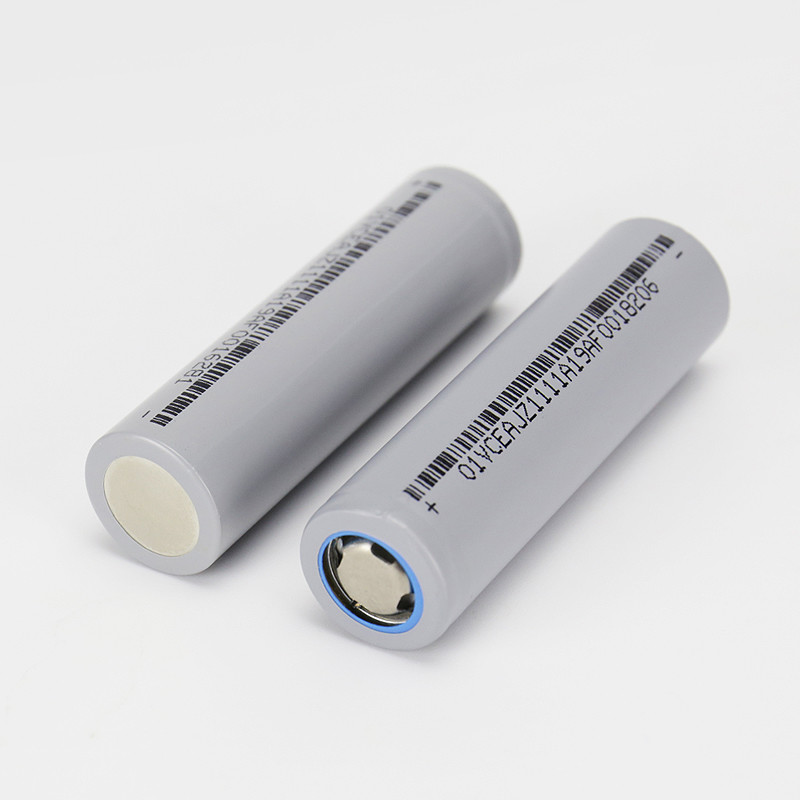

3200mAh 3.7v 18650 lithium ion battery cell for power tools,Consumer Electronics.
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.
|
Reted Capacity(mAh)
|
3200mAh
|
|
|
Nominal Capacity(mAh)
|
Min.3150mAh
|
|
|
Typ.3200mAh
|
||
|
Nominal Voltage
|
3.67V
|
|
|
Max.Discharge Current
|
6.4A
|
|
|
Continuous Discharge Current
|
6.4A
|
|
|
Charging Method
|
CC-CV
|
|
|
Charging Voltage
|
4.2V
|
|
|
Charging Current
|
1.25A Normal / 4A Fast
|
|
|
Charing Time
|
2.5h
|
|
|
Ambient Temperature
|
Charge
|
0℃~45℃
|
|
Discharge
|
-20℃~60℃
|
|
|
Storage
|
1 month: -20℃~60℃
3 month: -20℃~45℃ 1 year: -20℃~20℃ |
|
|
Weight(Max.)
|
|
47.2±0.5g
|
|
Dimensions(Typ.)
of Bare Cell |
H
|
65.02mm
|
|
D
|
18.00mm
|
|
|
Discharged State after Assembling
|
||
|
|
|
|
