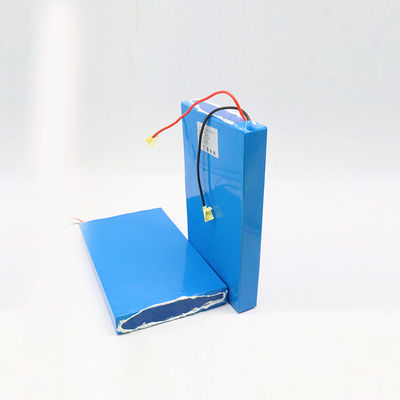

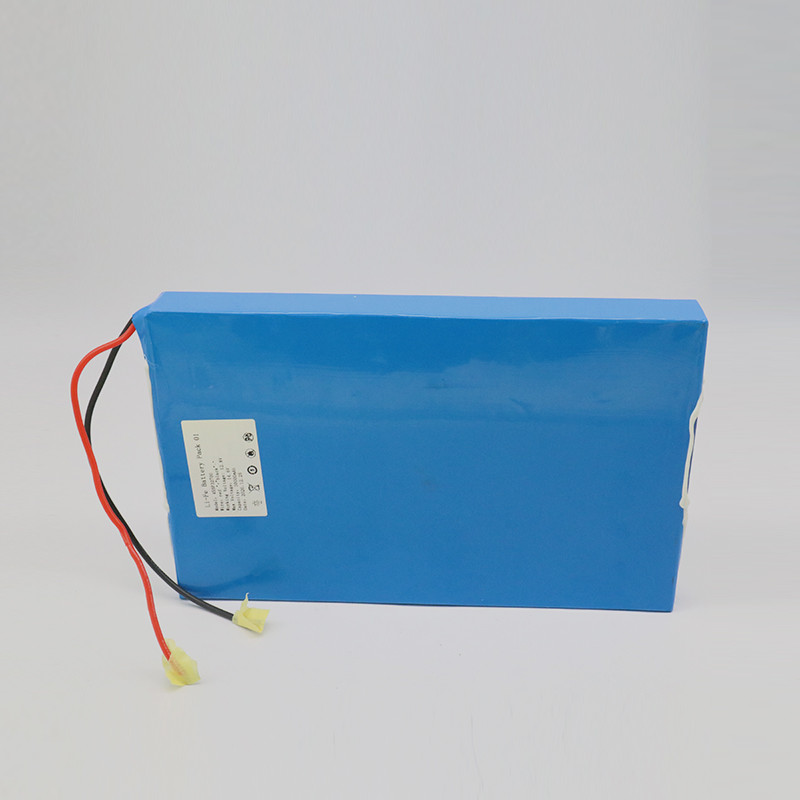

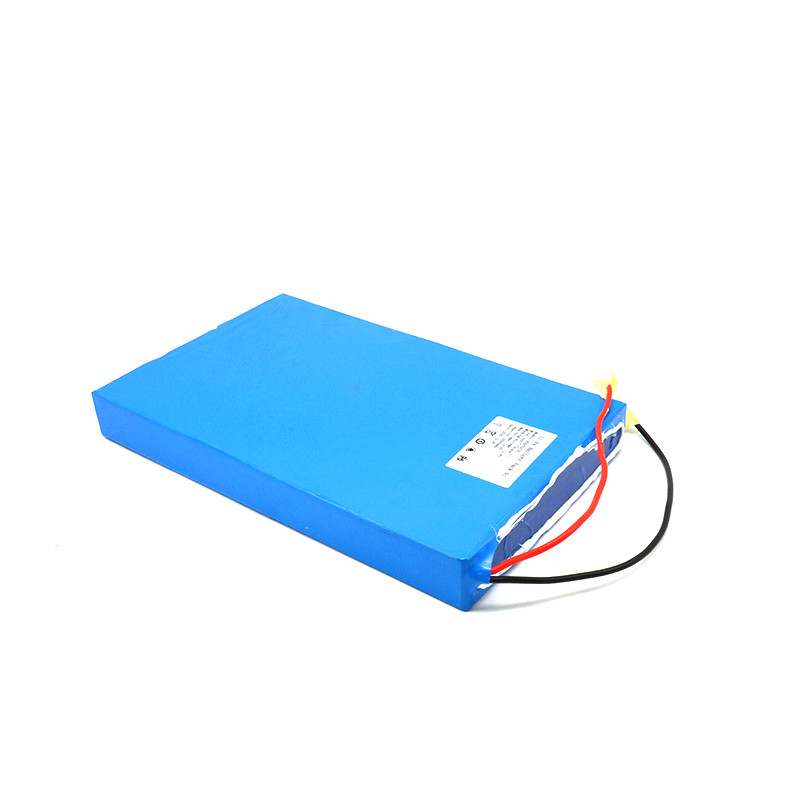

32700 4S8P 12.8V 30Ah Lifepo4 Lithium Battery Pack Excellent calendar life
| Material:: | LiFePO4 Lithium Battery | Color:: | Blue |
| Voltage:: | 12.8V | Capacity:: | 30Ah |
| Storage temperature: | 23±3℃ | Size:: | Height : 270mm Long : 135mm Wide :75mm |
| High Light:: | Solar Lifepo4 Battery | ||
| High Light: | Purple Horn 4S8P Lifepo4 Lithium Battery Pack,12.8V Lifepo4 Lithium Battery Pack,32700 30ah lifepo4 battery |
||
32700 4S8P 12.8V 30Ah LiFePO4 Lithium Battery For for electric vehicles with BIS UL..
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.
LiFePO4 Lithium BatterySpecification:
| No | Items | Specification | Remarks |
| 1 | Nominal Capacity | 6000mAh | 0.2C5A Discharge |
| 2 | Nominal Voltage | 3.2V | |
| 3 | Discharge Cut-off Voltage | 2.0V | 0.2C5A Discharge |
| 4 | Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ |
| 5 | Standard Charge Current | 0.2 C5A | 0℃～45℃ |
| 6 | Standard Discharge Current | 0.2 C5A | -10℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5C5A | 0℃～45℃ |
| 8 | Rapid Discharge Current | 3C5A | -10℃~ +60℃ |
| 9 | Max. Discharge Current | 3C5A | Limited Voltage2.0V |
| 10 | (Max. Pulse Discharge Current) | 5C5A | ms |
| 11 | Internal Impedance | ≤10m&OPurple Horn; | At AC 1kHz |
| 12 | Weight | About141g | ±2g |
| 13 | Storage Temperature Range | ≤one month | -20℃ ~ 45℃ |
| 14 | ≤three months | -20℃ ~ 35℃ | |
| 15 | ≤a year | -20℃ ~ 25℃ | |
| 16 | Voltage of shipment | 2.8V～3.2V |
The draw of the cell.
with 0.2 C5A discharge current and 2.0V cut-off voltage , the remained capacity≥80%Nominal Capacity
Delivery:
Air or Sea transportation are available.
For samples:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Garrantee:
