1. Lighter weight, smaller size
2. High temperature performance
3. Extremely safe, no explosion, no fire under collision
4. Strong over-discharge resistance and charge retention
5. Strong charging acceptance and quick-charging capability
6. Maintenance-free and no acid or water for maintenance in usage
7. Large capability and long life for all high power output applications
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature
10. Excellent large current discharge performance especially in startup and climbing
Specification of 60v 100ah battery
|
Product name
|

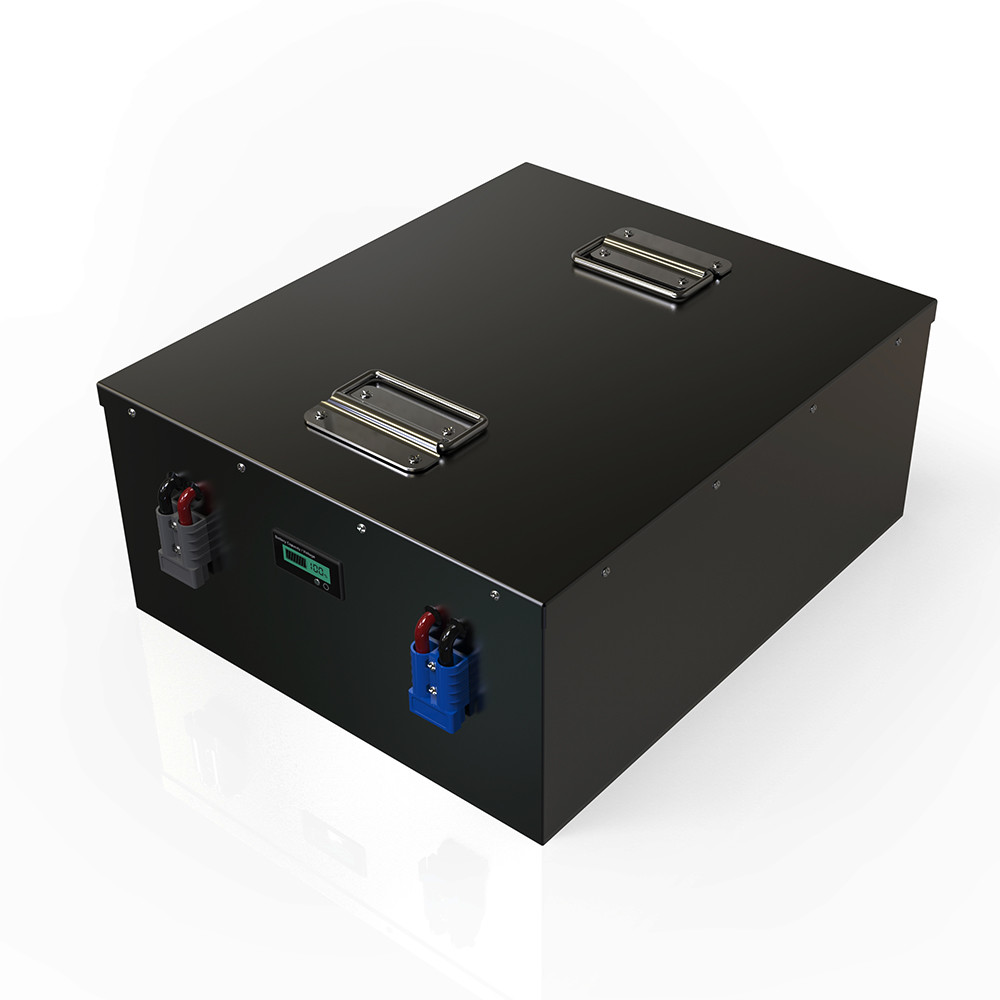

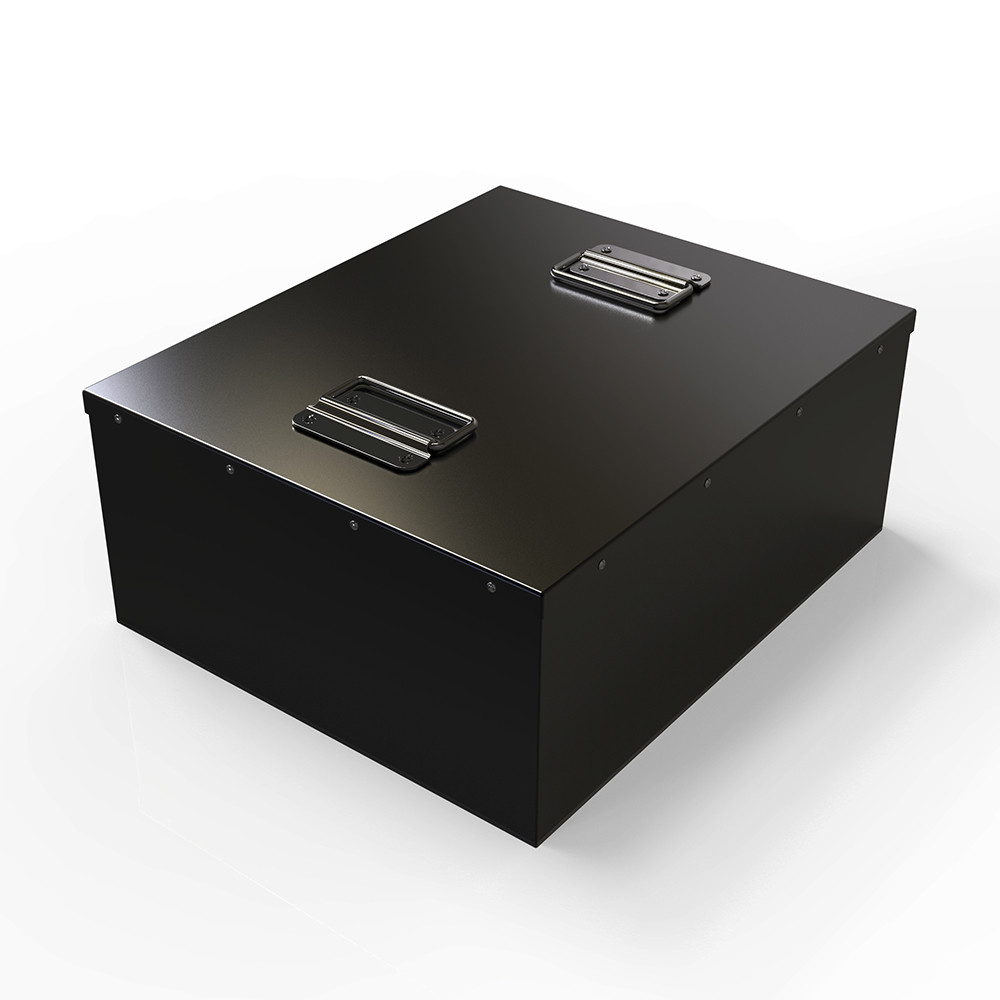

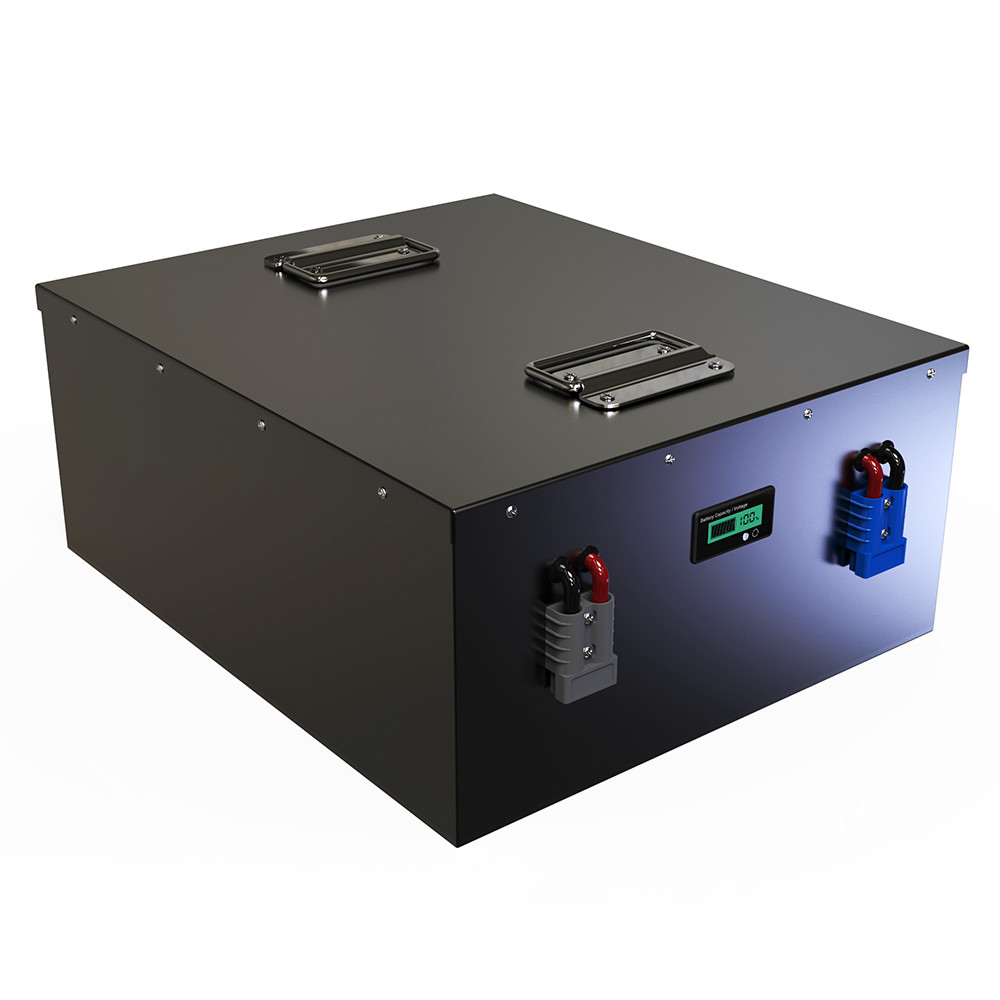

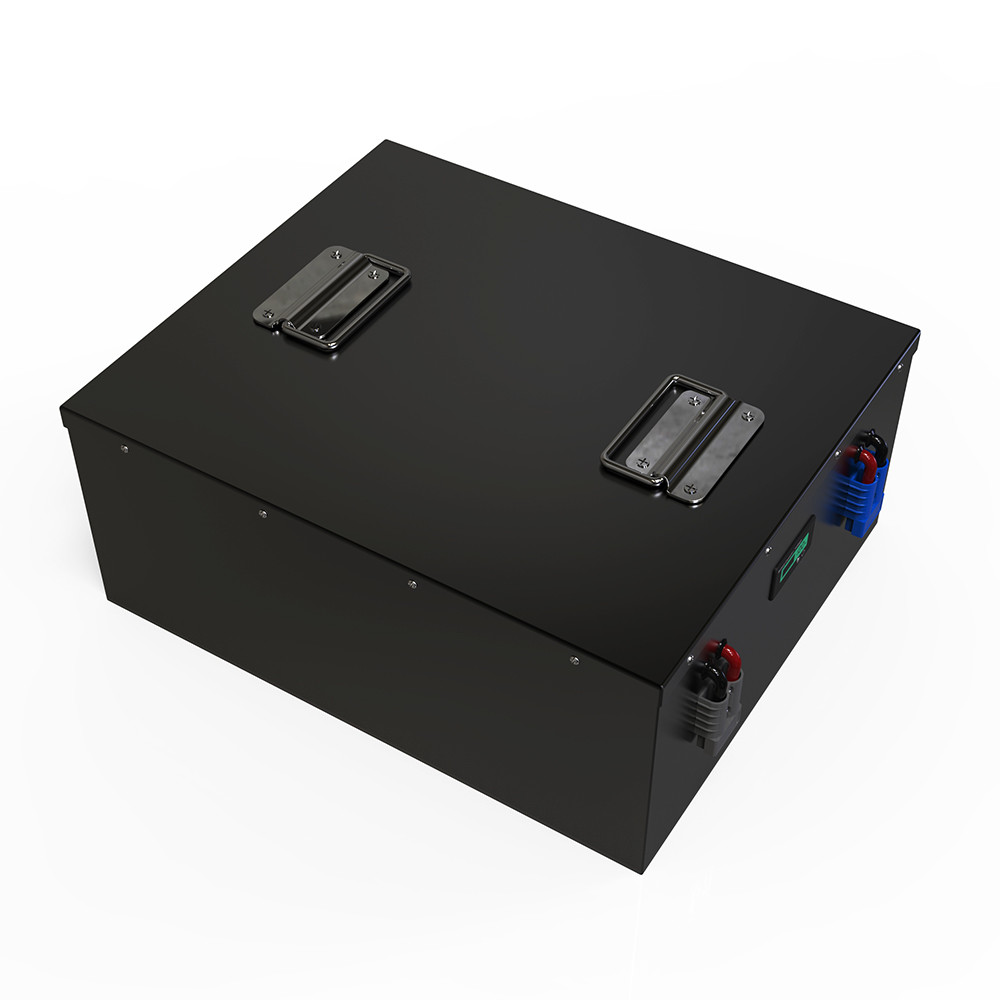

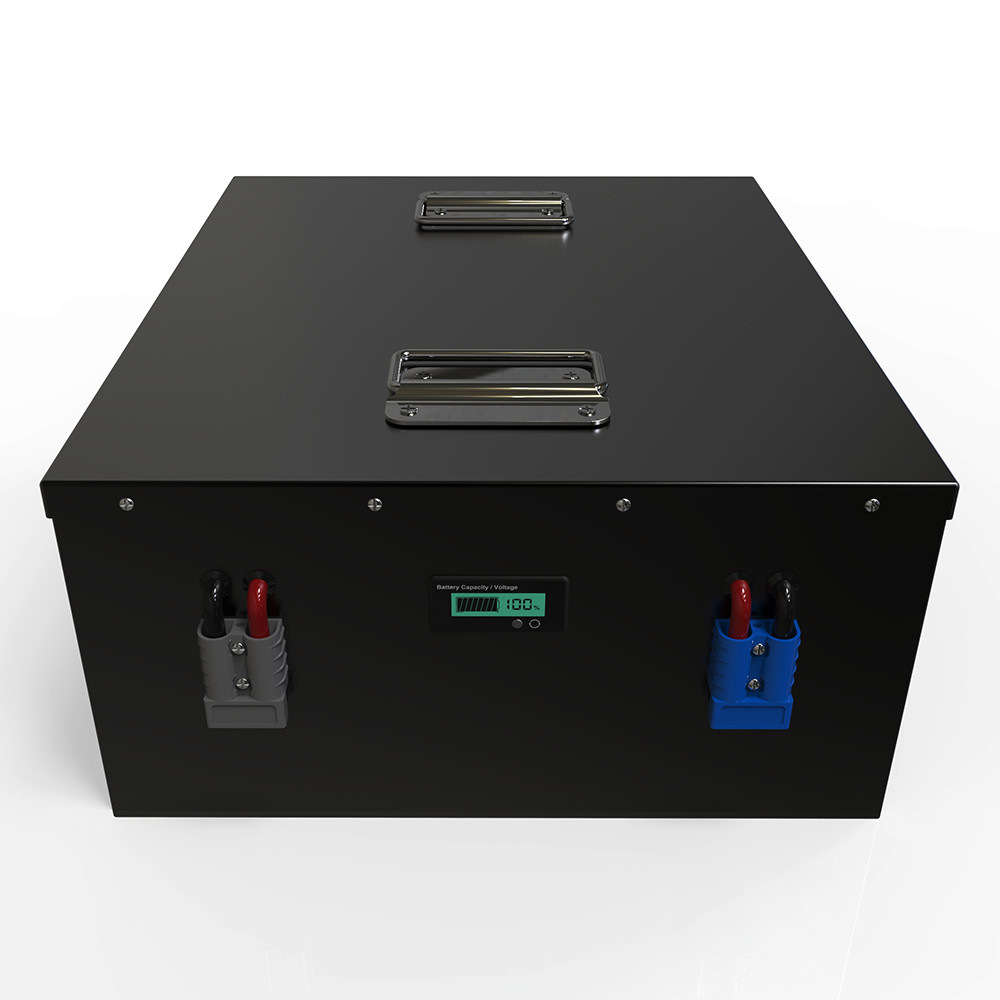

Electric vehicle lithium battery pack 60V 60Ah 100Ah for EV/electric motorcycle/electric tricycle
|
|
Nominal Voltage
|
60V
|
|
Nominal Capacity
|
100Ah
|
|
Standard Charge Current
|
12A (0.2C rate)
|
|
Max. Charge Current
|
100A (1C rate)
|
|
Organization way
|
20S4P 3.2V 20AH LiFePO4 cells battery
|
|
Working voltage
|
2.5- 3. 65v
|
|
Standard charging current
|
100Ah
|
|
Charge Cut-off Voltage
|
3.65V
|
|
Discharge Cut-off Voltage
|
2.5V
|
|
Inner Resistance(Impedance)
|
≤ 0.3 mΩ (At 0.2C rate, 2.0V cut-off)
|
|
Weight
|
45kg
|
|
Battery cell type
|
LiFepo4 battery for solar panel or solar heating system or electric car battery pack
|
|
Dimension
|
Length: 208mm,Width: 115mm,Thickness:9.2 mm
|
|
Operating Temperature
|
Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C
|
|
Storage Temperature
|
Storage Temperature -20°C ~ 60°C
|
|
Cycle Life at 0.2C Discharge,100% DOD≥2000 times (100%DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
|
