Product name
|

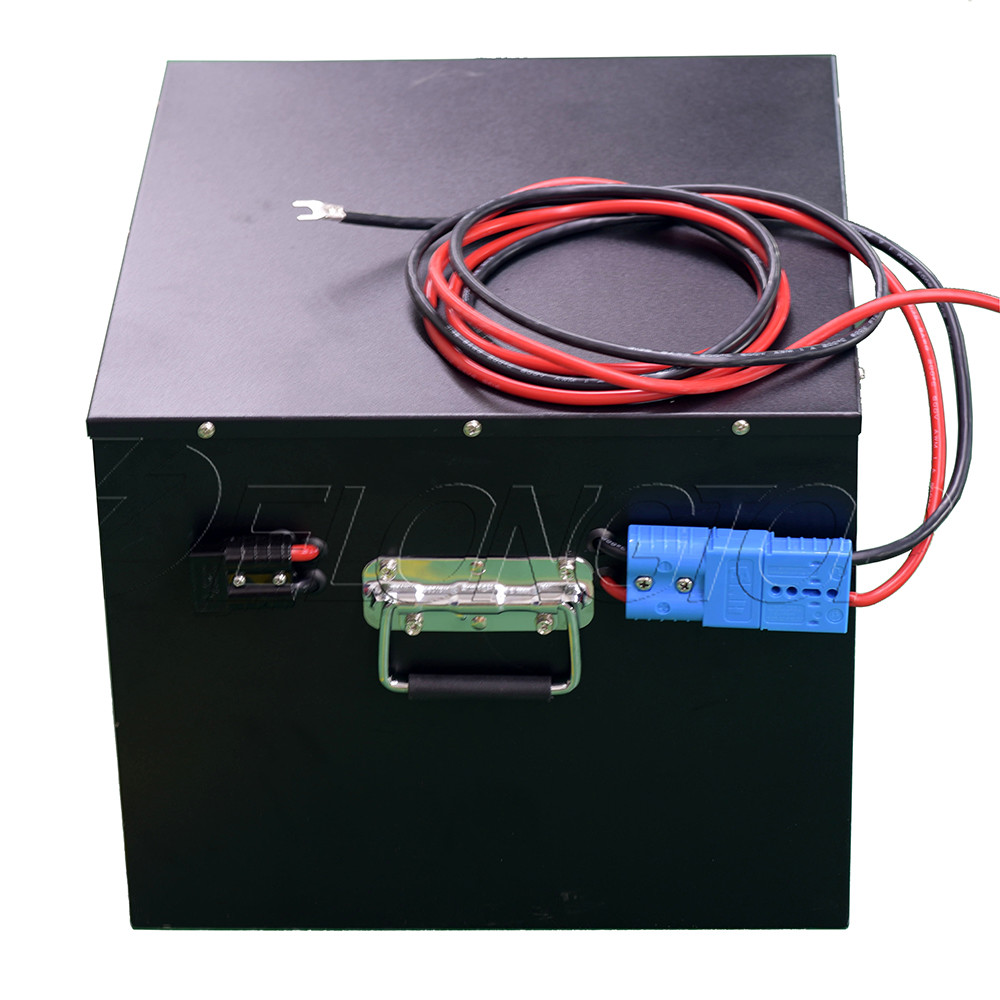

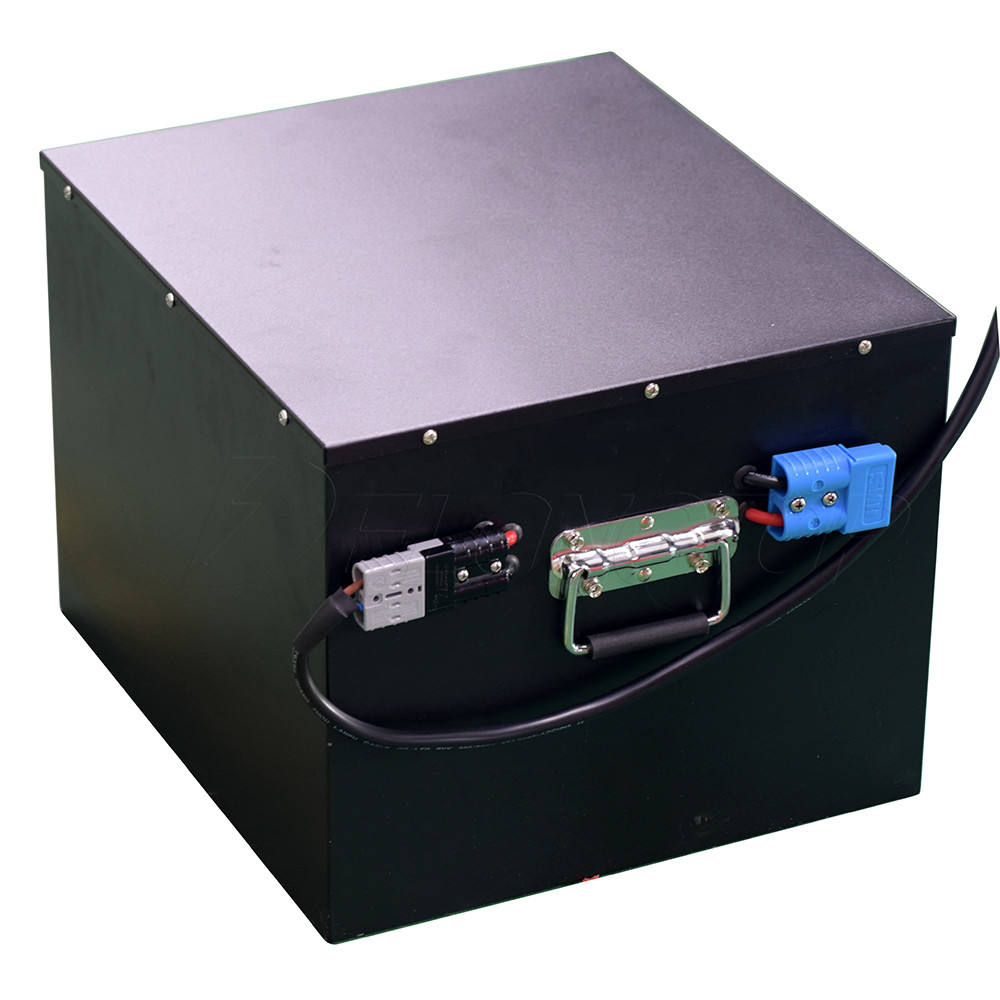

72V 100ah Lithium LiFePO4 Battery 24S1P
|
|
Nominal Voltage
|
76.8V
|
|
Nominal Capacity
|
100Ah
|
|
Standard Charge Current
|
100A or can use 200A bms for 7-10kw golf cart
|
|
Max. Charge Current
|
200A
|
|
Organization way
|
24S1P 3.2V 100AH LiFePO4 cells battery
|
|
Charge Cut-off Voltage
|
87.6V
|
|
Discharge Cut-off Voltage
|
60V
|
|
Inner Resistance(Impedance)
|
≤ 120mΩ
|
|
Weight
|
65KG
|
|
Battery cell type
|
3.2V 100ah grade A new prismatic cell
|
|
Dimension
|
Length: 600 mm,Width: 360 mm,Thickness:210 mm or ( OEM other size)
|
|
Operating Temperature
|
Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C
|
|
Storage Temperature
|
Storage Temperature -20°C ~ 60°C
|
|
Cycle Life
|
0.2C Discharge,100% DOD≥2000 times (100%DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
