Key Specifications/Special Features:
Product Information:
Nominal Voltage: 3.2V
Nominal Capacity: 50Ah
Standard charge current: 1/2 C
Standard discharge current: 1/2 C
Max discharge current (continuous): 1C
Charge temperature: -15~-55 Deg.C
Discharge temperature: -30~-55 Deg.C
Discharge cut-off voltage: 2.5V
Battery type: LiFePO4
Cycle life: 4000 times
Features: long lifespan, good consistency performance, high capacity, reduce internal resistance difference, non-explosive, non-toxic
Key Specifications/Special Features:
Lithium Iron Phosphate (LiFePO4 also called LFP Battery) is kind of Li-Ion rechargeable battery for high power applications, such as EV car, E-scooter, E-bike and E-boat. LFP cells feature with high discharging current, non explosive, long cycle life (>4000 at 0.2C rate, IEC Standard), but its energy density is lower than normal Li-Ion cell (Li-Co) (higher NiMH cell). LFP cell has 3.2V nominal working voltage and shall be cut-off power at 3.65V per cell during charging. Please see the table below to see comparison between LFP and other rechargeable batteries. LFP battery has the lowest cost if considering its long cycle life
Our Advantages :
1. Over 10 years' experience
2. Completely products including Li-pol, LiFePO4, Li-ion battery meet your various demand.
3. Automatic production brings you high performance products.
4. Complete certificates including: UN38.3, CB, IEC62133, UL, KC, BIS…
5. Fast response less than 12 hours
6. Global Insurance
Advantages of LiFePO4 Battery
1. The best substitutes for Lead-Acid Storage Battery.
2. Lower Pollution and environment friendly;No Lead, no heavy metal, no toxic element
3. High Safety, no fire, and no explosion
4. Aluminum Can Design, Light Weight
5. Strong instant peak power
6. Wide working temp. range
7. Long Life Cycle(two thousand cycles and more )
8. Fast Charge

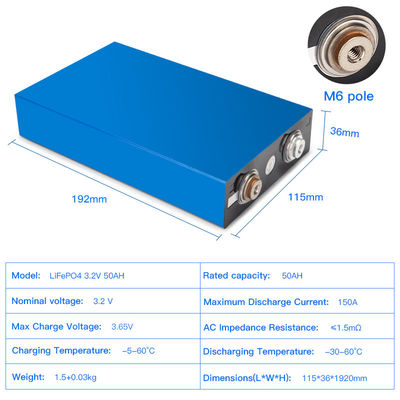

| Description / Item |
Specifications |
Remarks |
| Nominal Capacity |
50Ah |
2.5-3.65V
50A Discharge current
Initial status
|
| Minimum Capacity |
50Ah |
2.5-3.65V
50A Discharge current
Initial status
|
| Operating Voltage Range |
2.5-3.65V |
|
| Initial Inner Resistence(1KHz) |
≤0.4mΩ |
at a fresh state |
| Charge Temperature Range |
-15-55℃ |
|
| Discharge Temperature Range |
-30-55℃ |
|
| Self-discharge |
≤3.5% per month |
Count after fresh cell need Standard charge to 50%SOC and shortage at 25 ±2 ℃ for 3 months |
