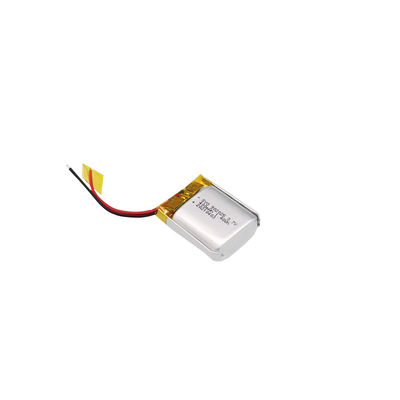

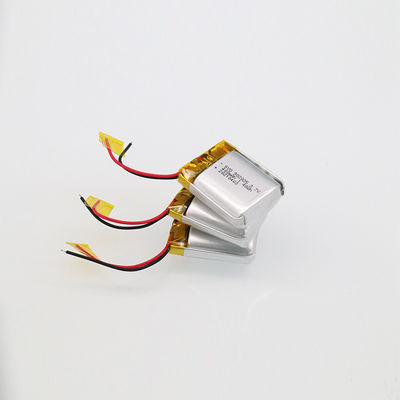

Mjx X5c RC 802035 3.7 V 400mah Drone Battery 1.48wh Lipo Lithium Polymer Battery
| Capacity:: | 400mAh | Warranty: | 12 Months |
| Dimension:: | 8.0*20*37mm(T*W*L) | Voltage:: | 3.7V |
| Impedance:: | ≤75mΩ | Cycle life: | 500 Times |
| High Light: | REACH 802035 3.7 V 400mah Drone Battery,UL 3.7 V 400mah Drone Battery 1.48wh,1.48wh 400mAh Lipo Lithium Polymer Battery |
||
Mjx x5c RC drone lipo 802035 3.7v 400mah 1.48wh battery 20C-25C
Key Specifications/Special Features:
Specifications:
1, Part number: HPL802033-400mAh
2, Battery type: Lithium Polymer battery
3, Battery power: 3.7V 400mAh 1.48Wh
4, Standard discharge current: 0.5C 200mA
5, Standard charge(0.2C): 4.2V 80mA
6, Max. discharge current: 1.0C 400mA
7, Battery impedance: ≤180m&OPurple Horn;
8, Operating temperature: 0°C~45°C (charging); -20°C~60°C (discharging)
Design scheme
1, IC: S-8261AANMD-G3J+8205+10K NTC
2, Over charge protection voltage: 4.275±0.025V
3, Over discharge protection voltage: 2.30±0.05V
4, Over current protection current: 1-3A
5, Over charge release voltage: 4.175±0.025V
6, Over discharge release voltage: 2.40±0.05V
7, Impedance: ≤75m&OPurple Horn;
8, Operating temperature: -40°C~+85°C
Battery feature
1, Storage for 24 hours at 85°C, battery capacity retention rate more than 90%, battery thickness expansion rate below 5%
2, Storage for 4 hours at 90°C, battery capacity retention rate more than 95%, battery thickness expansion rate below 5%
3, Storage for 2 hours at 100°C, battery thickness expansion below 5%
|
Items
|
Specifications
|
|
finished dimension
|
Length:37≤±0.5mm (not including tabs)
Width: 20±0.5mm
Thickness:8.0≤±0.2mm |
|
Charge voltage
|
4.2V
|
|
Nominal voltage
|
3.7V
|
|
Nominal capacity
|
400mAh 0.2C Discharge
|
|
Max.charge current
|
1.0C
|
|
Max.discharge current
|
20C
|
|
|
Standard Charging:0.5C
Rapid charge: 1.0C |
|
|
Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.) |
