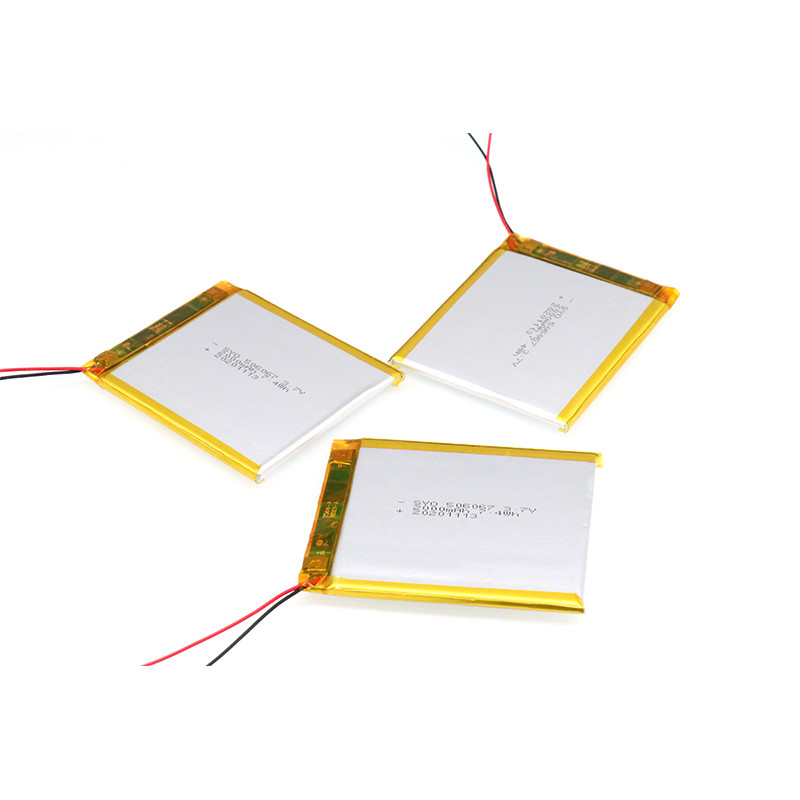

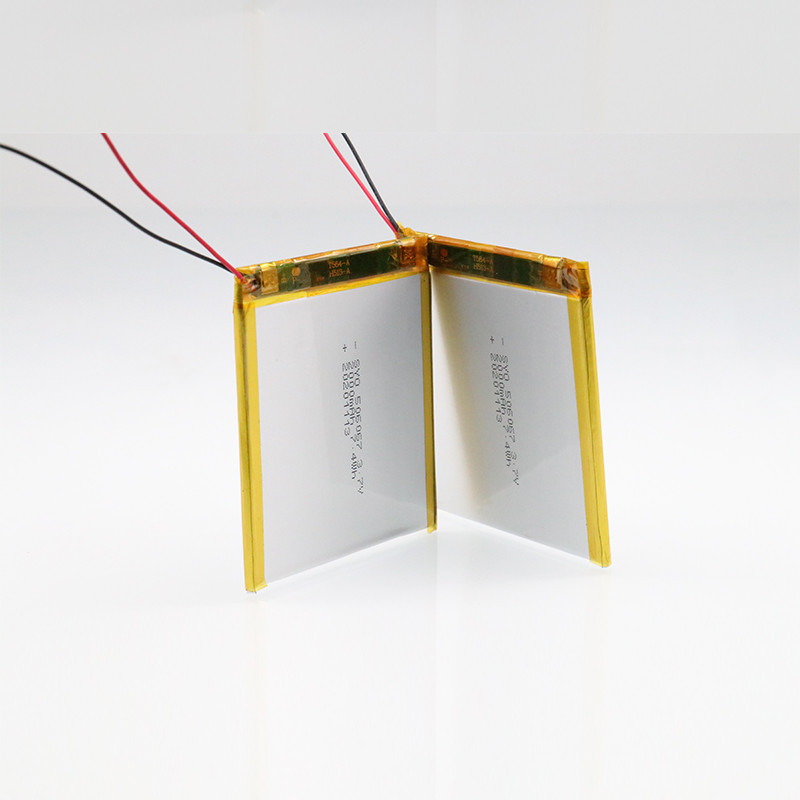

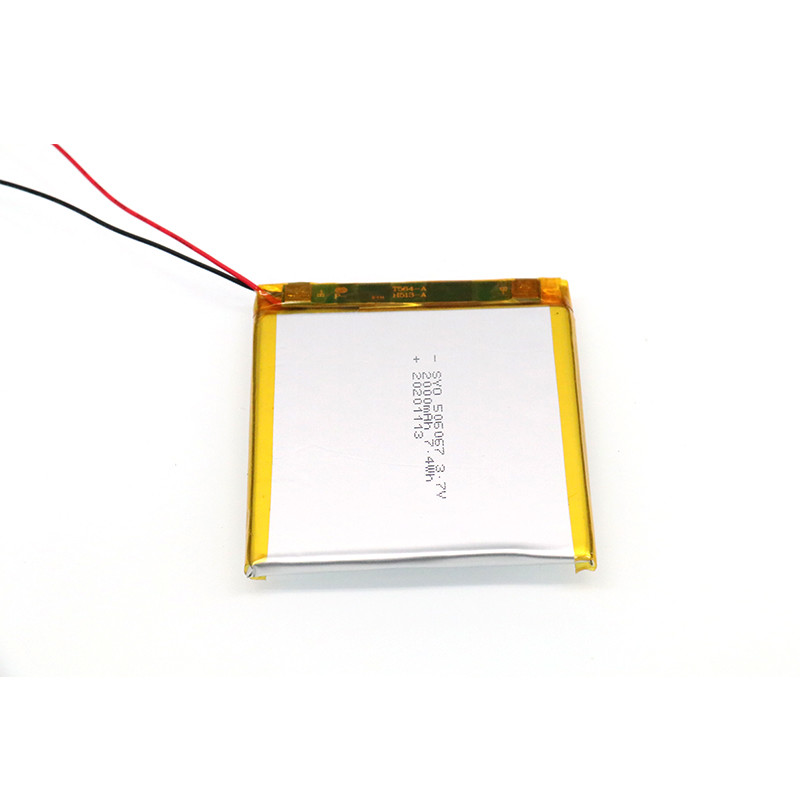

Name lithium polymer battery
Model number VP555165 2000mAh
Voltage 3.7V
Dimensions (L*W*T)mm 5.7x51.5x67.5mm with PCM
Standard charge current 0.2/0.5C
Maximum charge current 1C
Open circuit voltage 3.7-3.9v
Cut off voltage 2.75-4.25V
Cycle life 700cycles
Appearance portable PC
PCB optional
Wire optional
Connector optional
Certifications CE, RoHS Directive-compliant, UL, SGS, BIS, CB, IEC 62133
|
Battery Type
|
Li-Polymer
|
Material
|
LiCoO2/NMC
|
|
PN
|
435080
|
Voltage/Capacity
|
3.7V/2000mAh
|
|
Weight
|
Approx 40g
|
Shape
|
Soft pack
|
|
Dimensions
|
4.3(T)x50(W)x80(L)mm MAX
|
Package
|
Inner Tray + Carton
|
|
Cycle Life
|
≥500 times
|
Warranty
|
12 months
|
|
Charge Info
|
Charge Cut-off Voltage : 4.20V±0.05V
|
||
|
Charging method: CC/CV
|
|||
|
Standard Charge Current : 400mA (0.2C)
|
|||
|
Max Charge Current: 2000mA (1.0C)
|
|||
|
Discharge Info
|
Discharge Cut-off Voltage : 3.0V
|
||
|
Max Constant Discharge Current : 2000mA/Customized
|
|||
|
Working
Temperature
|
Standard Charge: 0~+40℃
|
||
|
Standard Discharge: -20~+60℃
|
|||
|
Production Lead Time
|
In stock: 5-7 working days; Out of stock: 20-25 working days
|
||
Feature:
1. Long service life and economical
The cell can provide more than 500 charge and discharge cycles. This makes it extremely economical, and provides an expected life similar to that of the device in which it is used.
2. Excellent discharge characteristics
have low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.
3. Long shelf life
provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.
Advantages:
Excellent staff team
Prefect company system and a steady financial condition
Strong production
Fast delivery
Good after-sale service
High-quality and competitive price
Large consumer group,can bring you large profits as well
