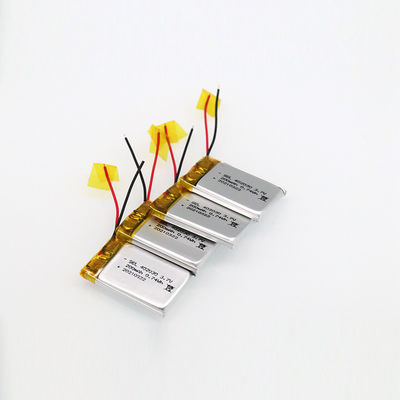

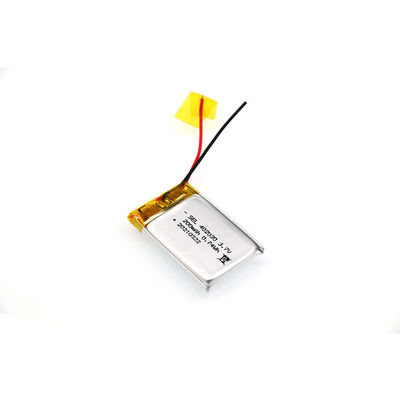

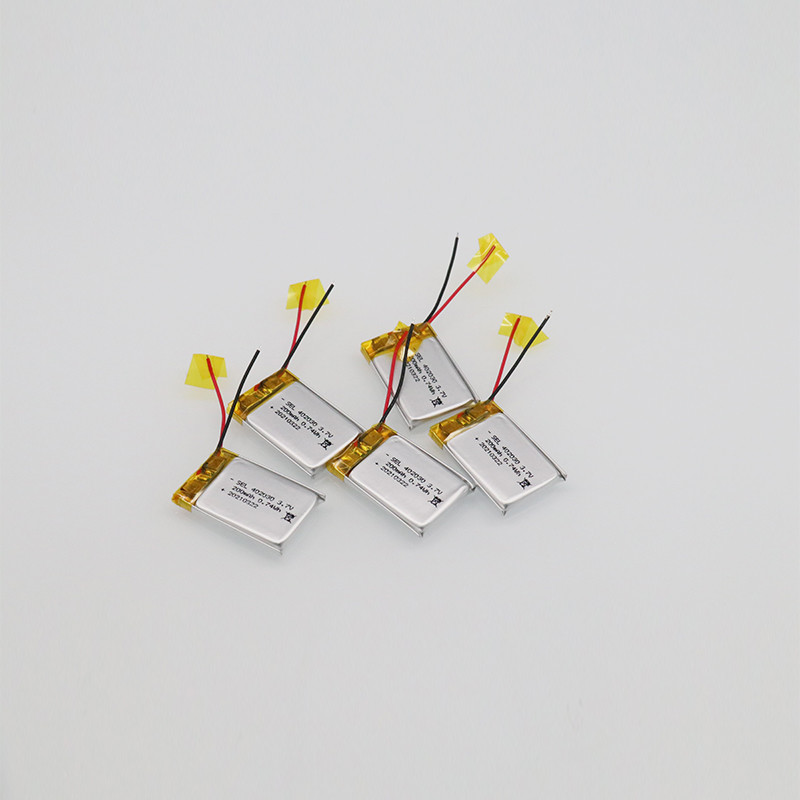

Li-polymer rechargeable battery 3.7v 200mAh for electric motor
| Nominal Capacity:: | 200mAh | Nominal Voltage:: | 3.7V |
| Cycle life:: | 500-1000 Times | Dimension:: | Customized |
| Standard Charge: | Constant Current 0.5C | Standard Discharge: | Constant Current 0.2 C |
| Dimension: | 5.2(T)*17.5(W)*31.5(L)mm | Max. Continuous Discharge Current: | 1C |
Key Specifications/Special Features:
Model: LP362428-200mAh
Nominal voltage: 3.7V
Nominal Capacity: 200mAh
Size:3.6*24*28mm
Max.charge current: 1.0C
Max.discharge current: 1.0C
Charge current:
-Standard Charging: 0.5C
-Rapid charge: 1.0C
Standard Charging method: 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time:
-Standard Charging: 3.0 hours(Ref.)
-Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage: 2.45V~3.0V
Operating temperature: -20°C~+60 °C
Storage temperature: 25°C
Application: PDA, tablet PC, e-book, MID, mine lamp, bluetooth headset,MP3,MP4,MP5, power bank and so on.
|
Item
|
Rated Performance
|
Remark
|
|
|
|
Typical
|
200mah
|
Discharge at 0.2C after standard charged fully.
|
|
Minimum
|
200mAh
|
||
|
Nominal Voltage
|
3.7V
|
Operating voltage @ standard discharge
|
|
|
Cut-off Voltage
|
3.0V
|
Voltage at end of discharge
|
|
|
Charging Voltage
|
4.2±0.03V
|
/
|
|
|
Standard Charge
|
Constant Current 0.5C
|
Charge time: Approx 4.0h.
|
|
|
Standard Discharge
|
Constant current 0.2 C
|
End voltage 3.0V
|
|
|
Max. Continuous Discharge Current
|
1C
|
/
|
|
|
|
|||
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%RH(Bare Cell.)
|
|
|
Discharge: -20~60℃
|
|||
|
Dimension
|
5.2(T)*17.5(W)*31.5(L)mm
|
Can be Customized
|
|
|
Package
|
Based on UN3480 PI965
|
Can be Customized
|
|
