item
|
value
|
|
Warranty
|
3years
|
|
Battery Size
|
329*172*214mm
|
|
Certification
|
CE,ROHS,FCC
|
|
Model Number
|
LAF12100
|
|
Weight
|
13kgs
|
|
Product name
|

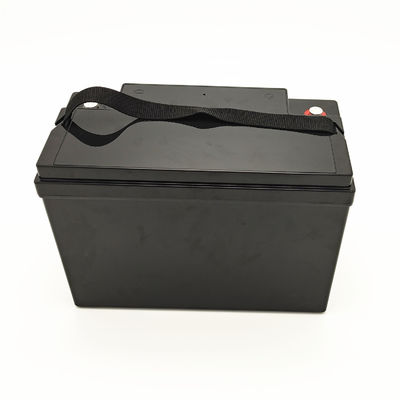

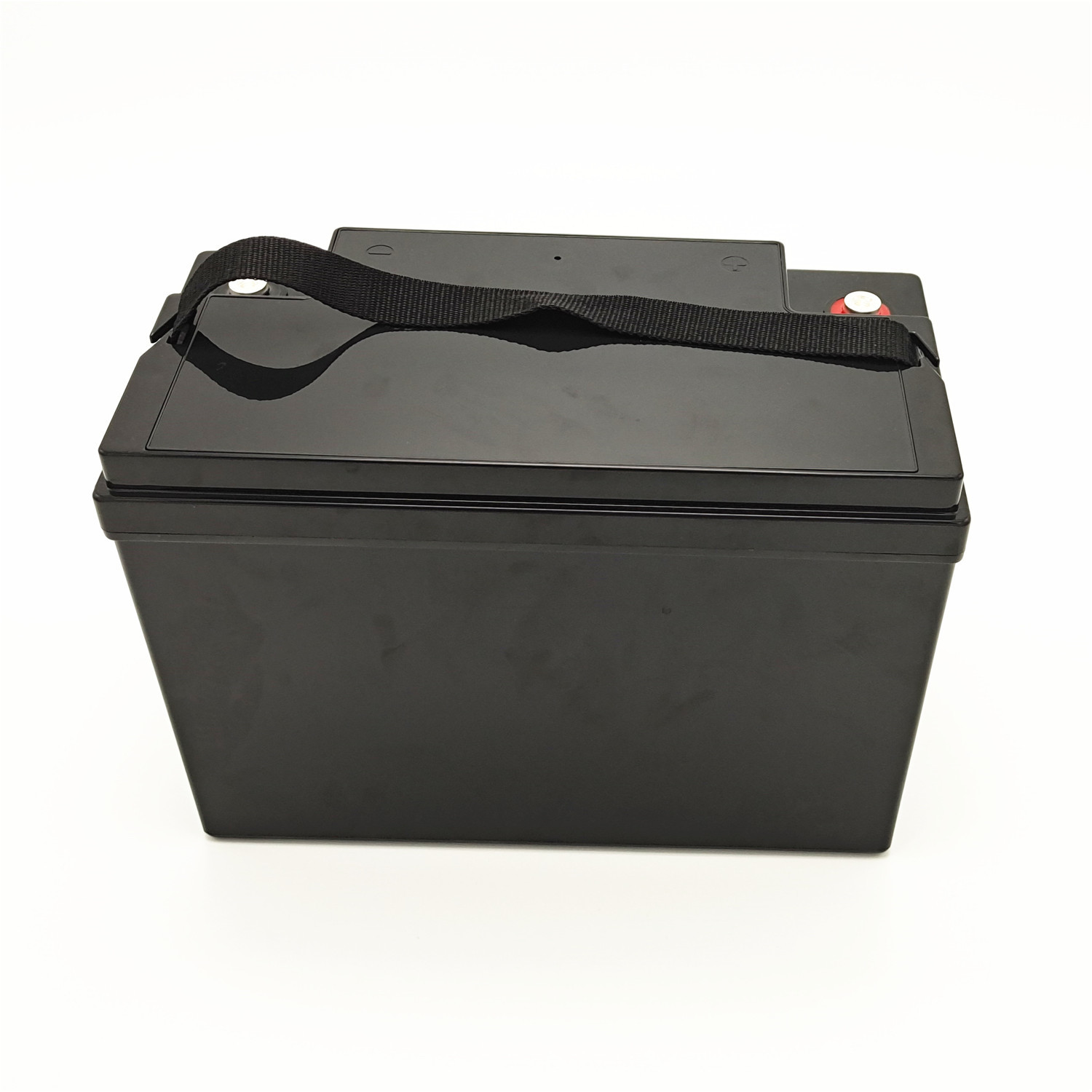

12.8V100Ah solar battery Deep cycle 3000 times
|
|
Energy
|
1280Wh
|
|
Charge off voltage
|
14.6V
|
|
Discharge off voltage
|
10V
|
|
Standard charge current
|
20A
|
|
Max Discharge current
|
100A(constant)
|
|
Cycle life
|
more than 3000 times
|
|
Features
|
High Power Density
|
|
Protection
|
Built-in BMS
|
|
Keywords
|
12.8V100Ah solar battery
|
12.8V LiFePO4 Battery Pack series
| 序号 | 规格MODEL | 标称电压 Nominal Voltage | 标称容量Capacity | 尺寸Size | 充电电流Charge current | 充电电压Charge voltage | 放电电流Discharge Current | 放电电压Discharge Voltage |
| 1 | 12.8V5Ah | 12.8V | 5Ah | 90*70*101mm | 2A | 14.4V-14.6A | 10A | 10.0V-10.5V |
| 2 | 12.8V6Ah | 12.8V | 7Ah | 151*65*95mm | 3A | 14.4V-14.6A | 15A | 10.0V-10.5V |
| 3 | 12.8V8Ah | 12.8V | 9Ah | 151*65*100mm | 4A | 14.4V-14.6A | 20A | 10.0V-10.5V |
| 4 | 12.8V12Ah | 12.8V | 12Ah | 151*99*98mm | 4A | 14.4V-14.6A | 25A | 10.0V-10.5V |
| 5 | 12.8V18Ah | 12.8V | 18Ah | 183*77*156mm | 6A | 14.4V-14.6A | 30A | 10.0V-10.5V |
| 6 | 12.8V20Ah | 12.8V | 20Ah | 181*77*175mm | 8A | 14.4V-14.6A | 50A | 10.0V-10.5V |
| 7 | 12.8V25Ah | 12.8V | 25Ah | 166*175*125mm or 168*161*106 | 10A | 14.4V-14.6A | 60A | 10.0V-10.5V |
| 8 | 12.8V33Ah | 12.8V | 33Ah | 194*132*172mm | 10A | 14.4V-14.6A | 80A | 10.0V-10.5V |
| 9 | 12.8V50Ah |
12.8V | 55Ah | 223*150*178mm | 20A | 14.4V-14.6A | 100A | 10.0V-10.5V |
| 10 | 12.8V100Ah 带蓝牙bluetooth |
12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 11 | 12.8V100Ah | 12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 12 | 12.8V130Ah | 12.8V | 130Ah | 330*170*220mm | 35A | 14.4V-14.6A | 150A | 10.0V-10.5V |
| 13 | 12.8V200Ah | 12.8V | 200Ah | 483*170*240mm | 60A | 14.4V-14.6A | 200A | 10.0V-10.5V |
