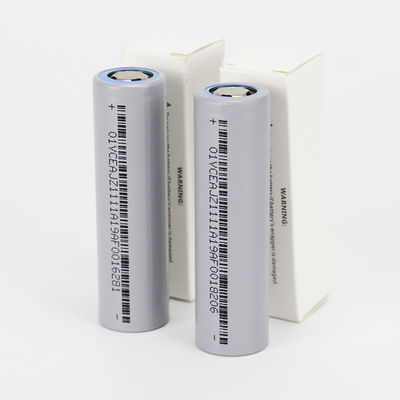

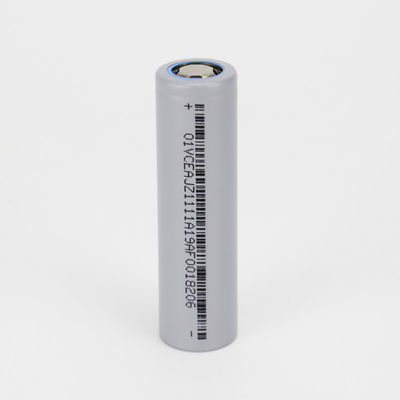

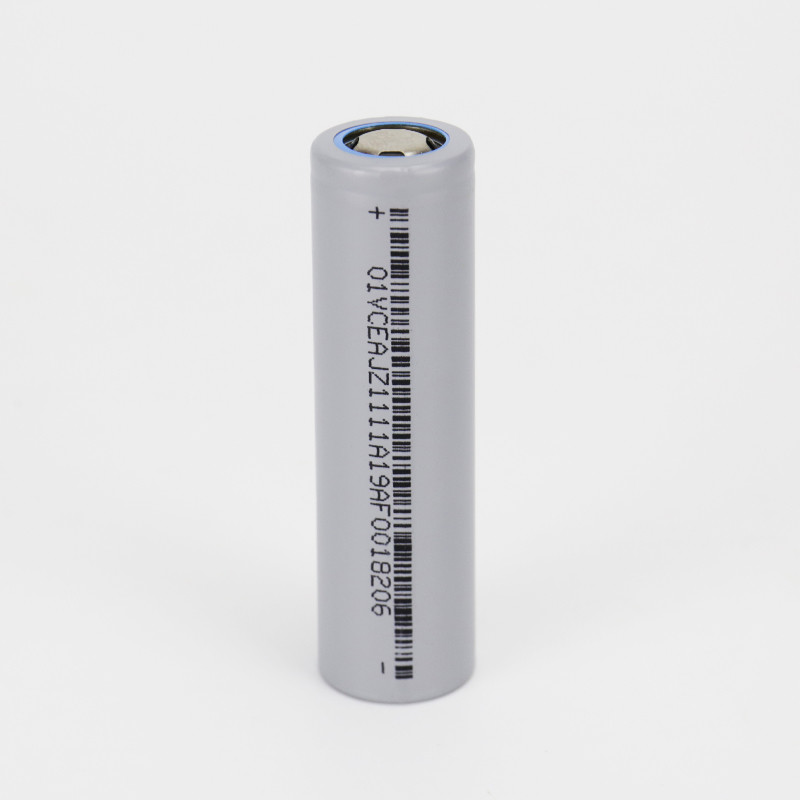

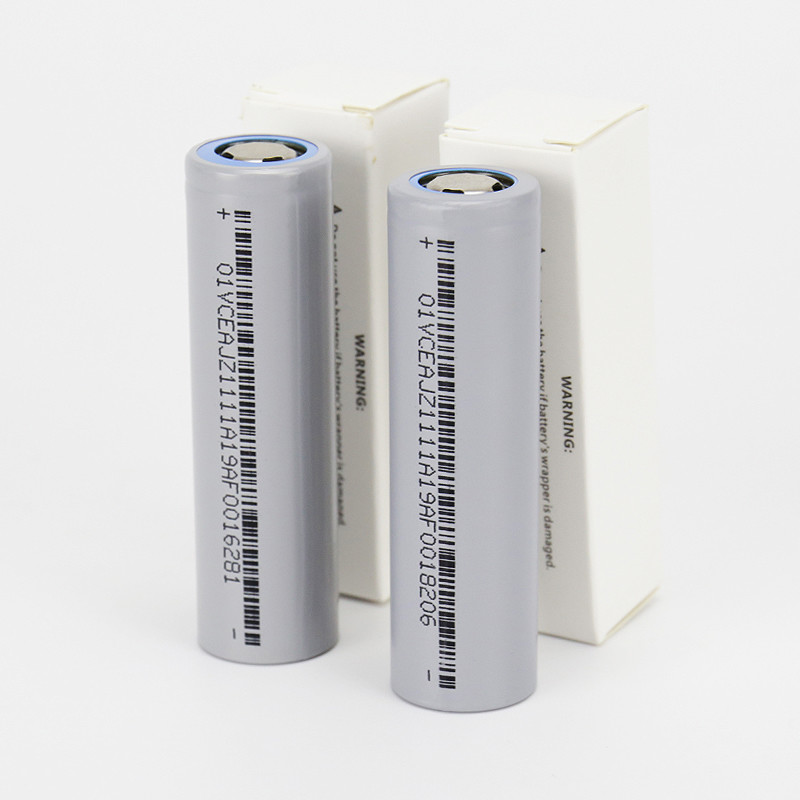

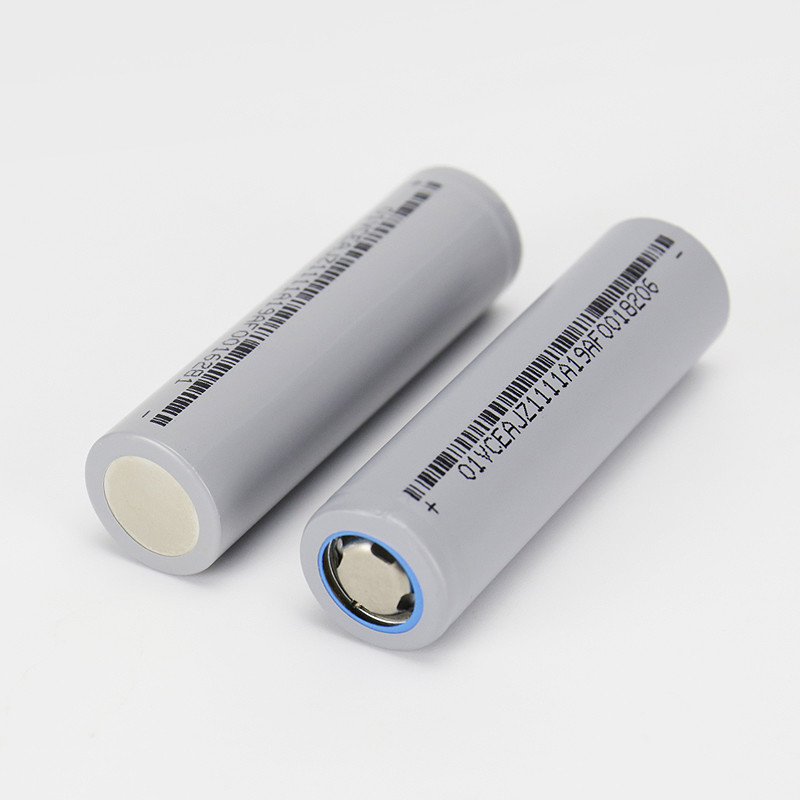

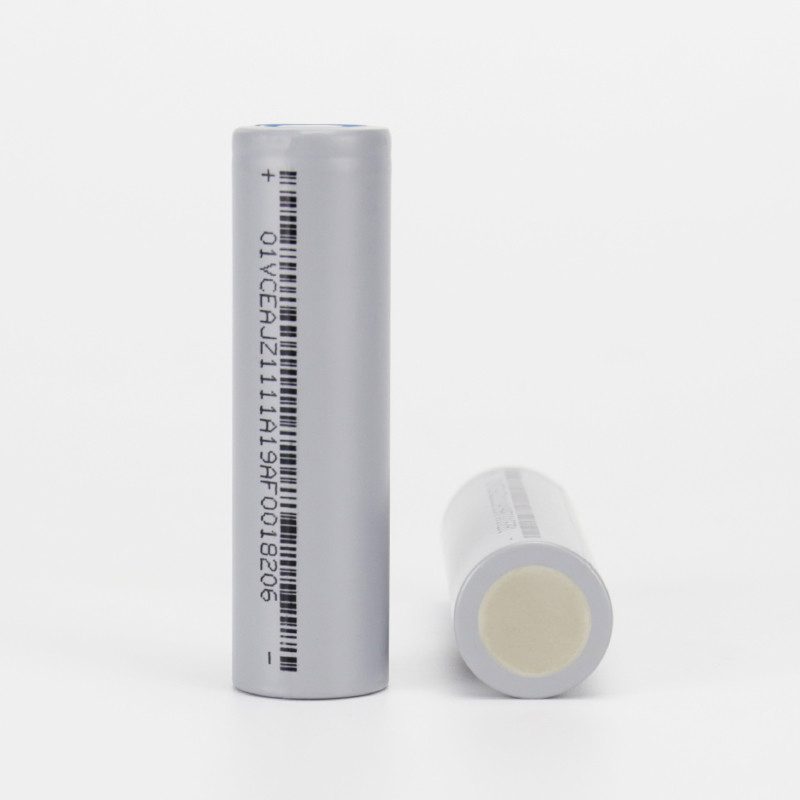

Energy 11.744Wh INR18650 Rechargeable Batteries Deep Cycle Cell 3200mAh
| Reted Capacity(mAh): | 3200mAh | Nominal Voltage: | 6.4A |
| Max.Discharge Current: | 6.4A | Charging Voltage: | 4.2V |
| Charging Current: | 1.25A Normal / 4A Fast | ||
| High Light: | INR18650 Rechargeable Batteries,INR18650 Rechargeable Batteries 3200mAh,11.744Wh lithium ion deep cycle battery |
||
Energy 11.744Wh deep cycle cell INR18650 3200mAh rechargeable batteries li-ion,Application Toys, Power Tools, Consumer Electronics, Electric Bicycles
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.

|
Reted Capacity(mAh)
|
3200mAh
|
|
|
Nominal Capacity(mAh)
|
Min.3150mAh
|
|
|
Typ.3200mAh
|
||
|
Nominal Voltage
|
3.67V
|
|
|
Max.Discharge Current
|
6.4A
|
|
|
Continuous Discharge Current
|
6.4A
|
|
|
Charging Method
|
CC-CV
|
|
|
Charging Voltage
|
4.2V
|
|
|
Charging Current
|
1.25A Normal / 4A Fast
|
|
|
Charing Time
|
2.5h
|
|
|
Ambient Temperature
|
Charge
|
0℃~45℃
|
|
Discharge
|
-20℃~60℃
|
|
|
Storage
|
1 month: -20℃~60℃
3 month: -20℃~45℃ 1 year: -20℃~20℃ |
|
|
Weight(Max.)
|
|
47.2±0.5g
|
|
Dimensions(Typ.)
of Bare Cell |
H
|
65.02mm
|
|
D
|
18.00mm
|
|
|
Discharged State after Assembling
|
||
|
|
|
|
