0.2C 3.7v 1200mah Lithium Ion Polymer Battery

Basic Properties
Place of Origin: China
Brand Name: Purple Horn
Certification: CE/RoHS/UN38.3/MSDS
Model Number: 3.7v 1200mah prismatic liion lithium polymer battery
Trading Properties
Minimum Order Quantity: 1PCS/ORDER
Price: negotiable
Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal
Supply Ability: 1000000 Piece/Pieces per Month
Specifications
Warranty:: One Year, 12 Months Application:: Toys, Consumer Electronics, Electronic Products
Battery Size:: 7.0*34*43mm(T*W*L) Weight:: 23g
The charging ratio:: 0.2C The discharge rate:: 0.2C
Voltage:: 3.7v~ 4.2v Nominal Voltage:: 3.7volt
Dimension:: 7.0*34*43mm(T*W*L) Capacity:: 1200mAh
Cycle life:: 500 Times
High Light:

0.2C 3.7 v 1200mah lipo battery

,

0.2C Lithium Ion Polymer Battery

,

1200mah Lithium Ion Polymer Battery

Product Description

Rechargeable Lipo 3.7v 1200mah prismatic liion lithium polymer battery for headphones

Product specifications
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.​
Items
Parameter
Battery model
GEB 703443
Nominal voltage
3.7V
Minimum capacity
1200mAh (0.2C discharge)
Dimension
7.0*34*43mm (T*W*L)

Charging voltage
4.25V
Discharging cut-off voltage
2.75V
Standard charging
0.2C /4.25V
Max charging
1.0C /4.25V
Standard discharging
0.5C/3.0V
Max discharging
continuous discharge
1.0C/3.0V
non-continuous discharge
2.0C/3.0V
Shipment voltage
≥3.85V

Operating temperature
Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C




Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time )
-10℃~25℃
(12 months ≥85% )
-10℃ ~45℃
(6 months ≥85% )
-10℃~55℃
(1 month ≥90% )
20±5℃ is the recommended storage temperature
Visual Inspection
There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.

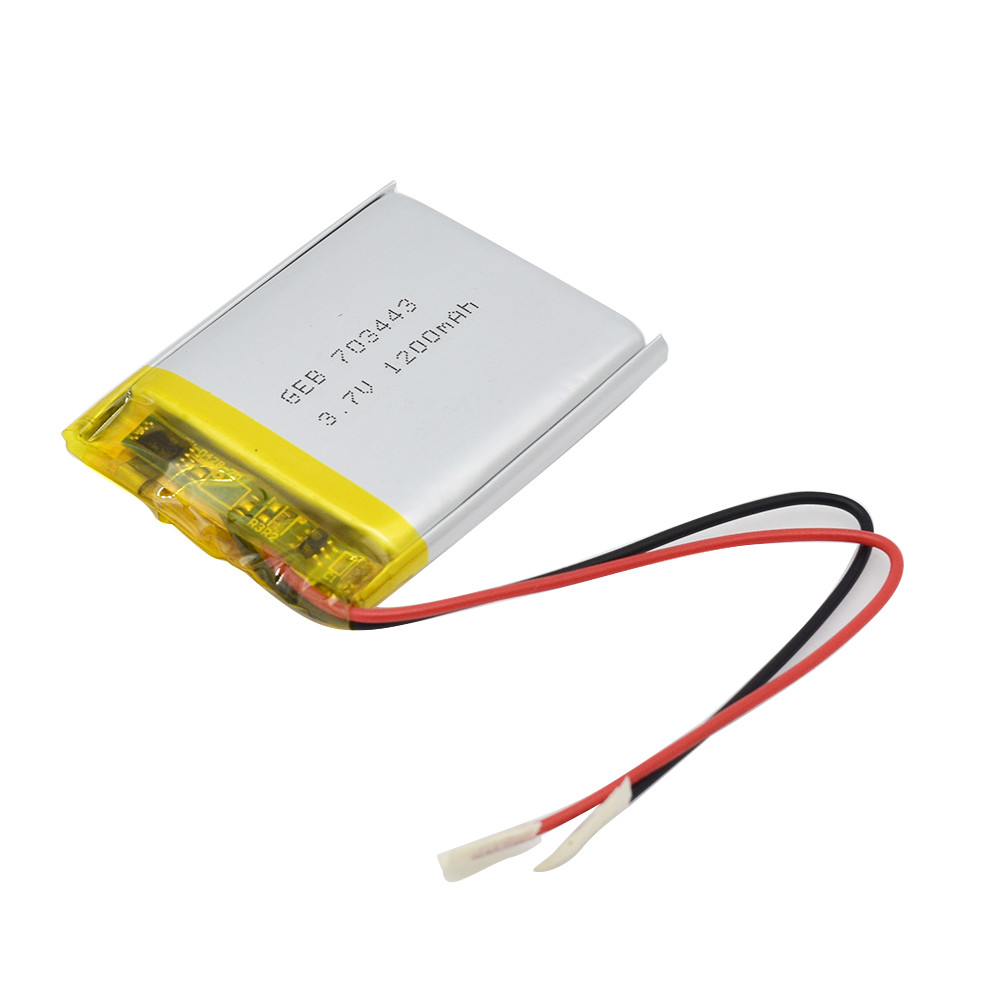

0.2C 3.7v 1200mah Lithium Ion Polymer Battery 0

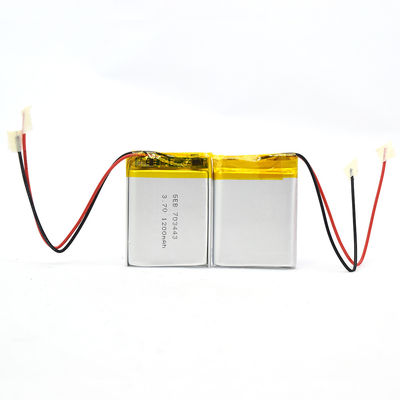

0.2C 3.7v 1200mah Lithium Ion Polymer Battery 1

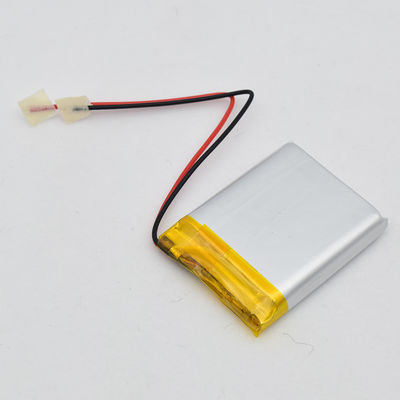

0.2C 3.7v 1200mah Lithium Ion Polymer Battery 2

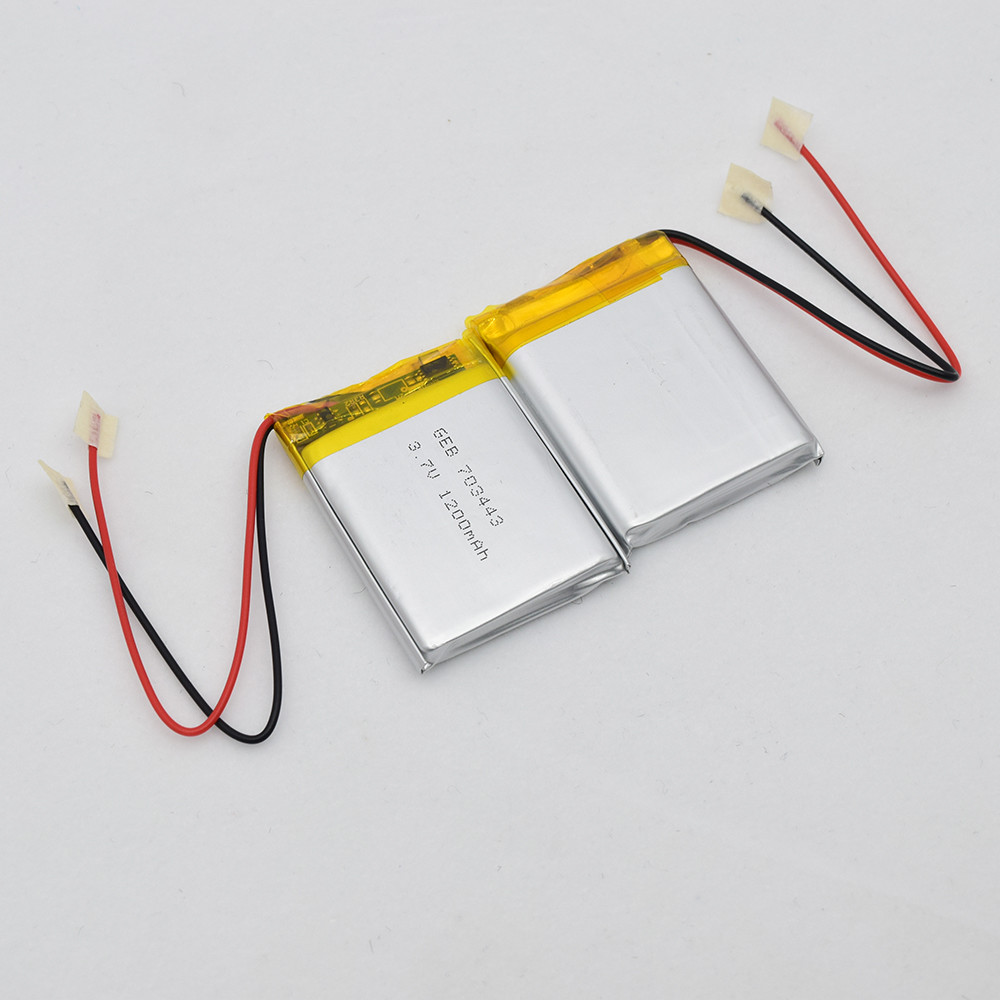

 0.2C 3.7v 1200mah Lithium Ion Polymer Battery 3
