1. Lighter weight, smaller size
2. High temperature performance
3. Extremely safe, no explosion, no fire under collision
4. Strong over-discharge resistance and charge retention
5. Strong charging acceptance and quick-charging capability
6. Maintenance-free and no acid or water for maintenance in usage
7. Large capability and long life for all high power output applications
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature
10. Excellent large current discharge performance especially in startup and climbing

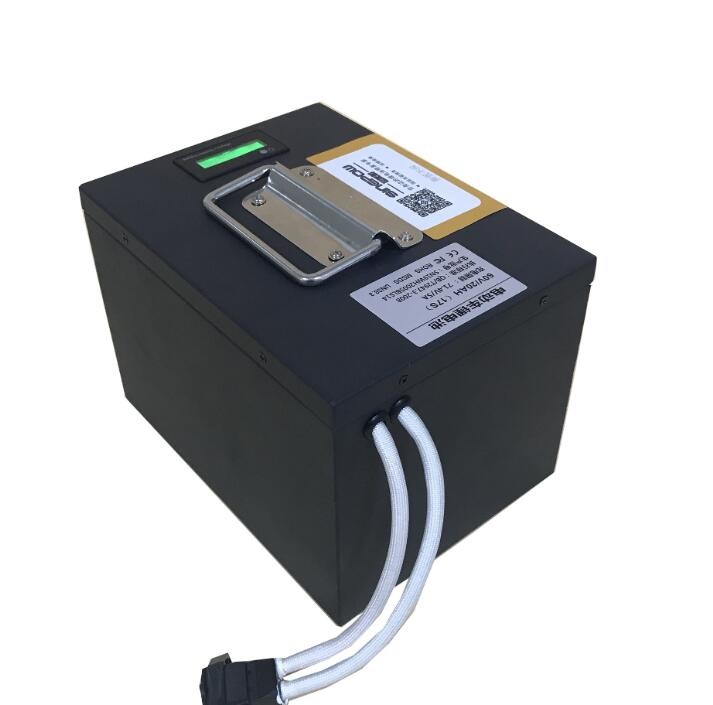

Battery Type | 72V 60Ah Lithium Iron Phosphate Battery Pack |
Battery Cell | 3.2V 52Ah LiFePo4 Pouch Cell |
Nominal Voltage | 72V |
Nominal Capacity | 52Ah can be customized |
Configuration | 24S1P |
Size | 300*200*340mm |
Standard Charge Current | 10A |
Max. Charge Current | 20A |
Max. Charge Voltage | 87.6V |
Battery Internal Resistance | ≤100mΩ |
Discharge Current | 80A |
Max. Continual Discharge Current | Can be customized |
Discharge Cut-off Voltage | 28V |
Charge Method | CC/CV |
Weight | About 28kg |
Cycle Life | More than 2000times DOD at 80% |
Charge Temperature | 0~45°C |
Discharge Temperature | -20~65°C |
Storage Temperature | 0~65°C |
Charger & Charger Plugs | EU/AU/UK/US Plugs For 10A 87.6V charger |
Bluetooth | if you want bluetooth,please feel free to contatc us! |
Protection | Built-in BMS : over current protection, over voltage protection, over discharge protection, over charge protection, short circuit protection, etc. |
Package Includes | 1 Pcs 72V 60Ah lifepo4 battery pack & 1pcs 10A charger |
Battery type
|
LiFePO4 Battery
|
Nominal Voltage
|
72V
|
Nominal Capacity
|
30Ah
|
Discharging cut-off voltage
|
60v
|
Cycles life
|
>2000
|
Max charge current:
|
15A
|
Dimension
|
300*205*170mm
|
Battery weight
|
16kg
|
