Home /Products/Lithium LiFePO4 Battery/3.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery

3.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery

10PCS/ORDER
MOQ
negotiable
Price
3.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty:: 3 Year
Charging Life Cycle:: 3500 Times
Battery Capacity:: 150Ah
Voltage:: 3.2v
Cell Size: Thickness : 71.6±1mm /Width: 173.6±1mm /Height: 207.3±1mm
Weight:: ≤3.45Kg
Highlight:

3.2v Lifepo4 Lithium Iron Phosphate Battery

,

Lifepo4 Lithium Iron Phosphate Battery 150ah

,

150ah E Bike Lifepo4 Battery
Basic Infomation
Place of Origin: China
Brand Name: Purple Horn
Certification: UN38.3/MSDS/CE/RoHS
Model Number: LFP 3.2V 150Ah LiFePO4 cell
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 3-5days
Supply Ability: 1000000pcs/day
Product Description

3.2v 150Ah lifepo4 battery cell 12 months warranty LFP battery lithium battery

Key Specifications/Special Features:

Descriptions:
  1. Battery type: LiFePO4 Battery
  2. Model: HF-LFP32120
  3. Nominal voltage: 3.2V
  4. Rated capacity: 50Ah/80Ah/100Ah/120Ah/150Ah/200Ah/240Ah
  5. EnergyNormal energy (40°C , 0.5C): 384 Wh
  6. Volumetric energy density: 95Wh/L
  7. Gravimetric energy density: 96Wh/kg
  8. Dimensions (W*D*H)Length*Width* Thickness: 170*175*48mm
  9. Standard Discharge 25°C Standard charge current0.5C Standard charge, charge time: 3h(Ref)
  10. Charge voltage: 3.65V±0.03V
  11. Max. constant charge current1C Rapid Charge, charge time: 1.5h(Ref)
  12. Standard charge: 25℃
  13. Standard discharge current:1C
  14. Discharge voltage: 2.5V
  15. Max. constant discharge current: 3C
  16. Cell Internal ImpedanceInternal resistance measured: at AC 1KHZ after 50% charge≤0.7m&OPurple Horn;
  17. Round trip efficiency(%): ＞98%
  18. Calendar life25℃: ＞5 years
  19. Cycle life (0.5C, 25℃): 60% DOD 4000 cycles
  20. Operating temperatureCharging: 0℃~45℃
  21. Discharging: -20℃~55℃
  22. Storage temperatureRecommended range: -20℃~60℃
Advantages:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
Nominal Capacity 150Ah(25±2℃,1C Fresh Cell)
Operating Voltage 2.5~3.65V (Temperature T>0℃ ) / 2.0~3.65V (Temperature T<0℃ )
Maximum Charge Voltage 3.65V
Internal Impedance ≤0.7m&OPurple Horn;
Standard Charge Method Constant Current and Constant Voltage (CC/CV) ; Current 0.5C /25±2℃
Maximum Charge Current Continues 0.5C ; Max 1C (25±2℃)
Standard Discharge Continues 1C ; Max 3C (10S) 15℃ < T ≤ 50℃
Maximum Working Tem. Charge : 0~+60℃ / Discharge :-30~+60℃
Cycle Life 3500th cycle ≥80% of 1st Capacity (0.5C/1.0C at 25℃)
Cell Size Thickness : 71.6±1mm /Width: 173.6±1mm /Height: 207.3±1mm
Cell Weight ≤3.45Kg

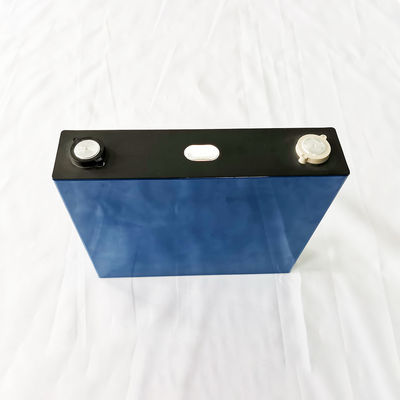

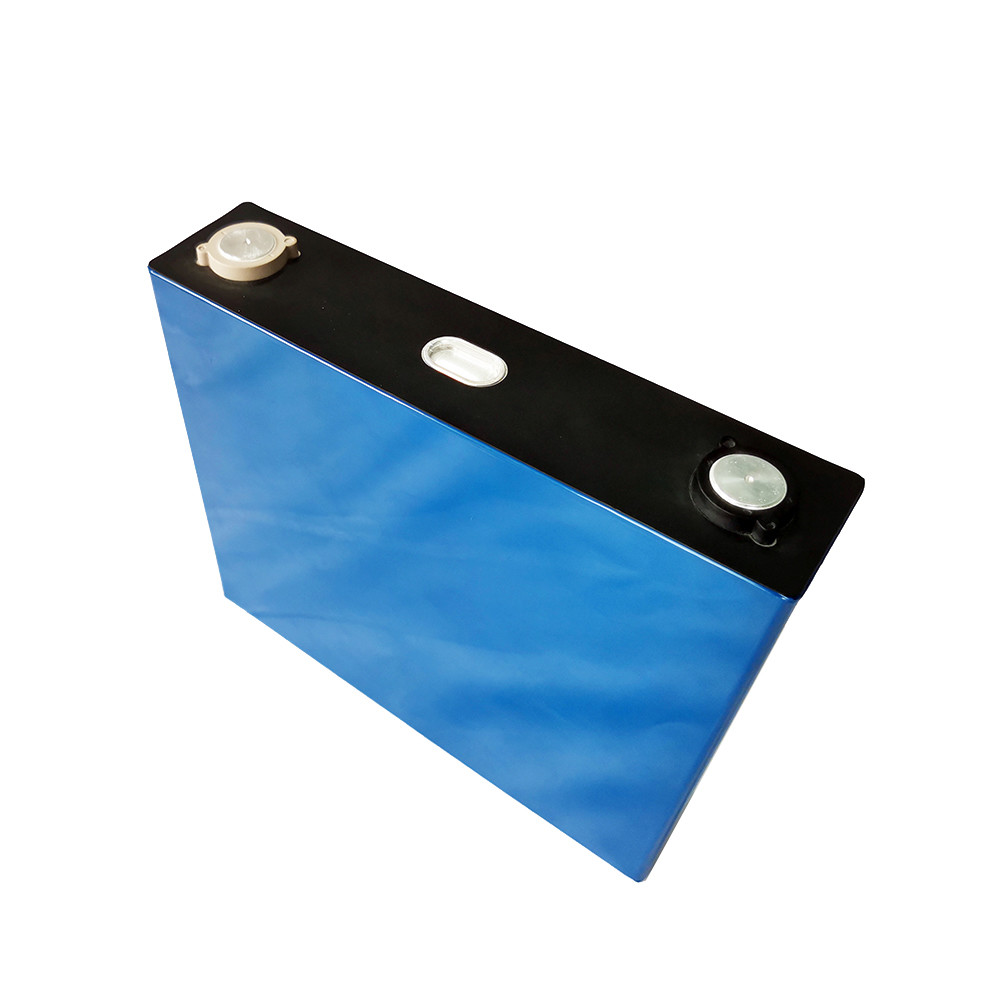

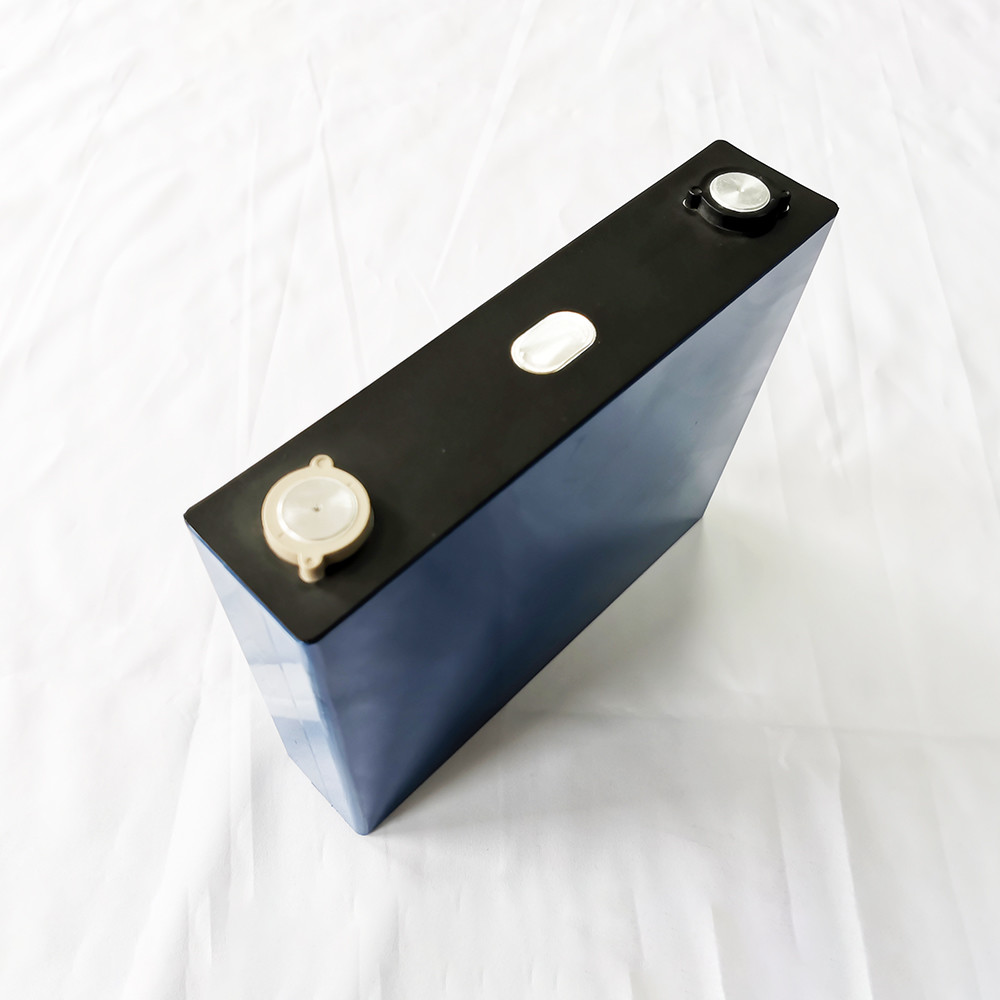

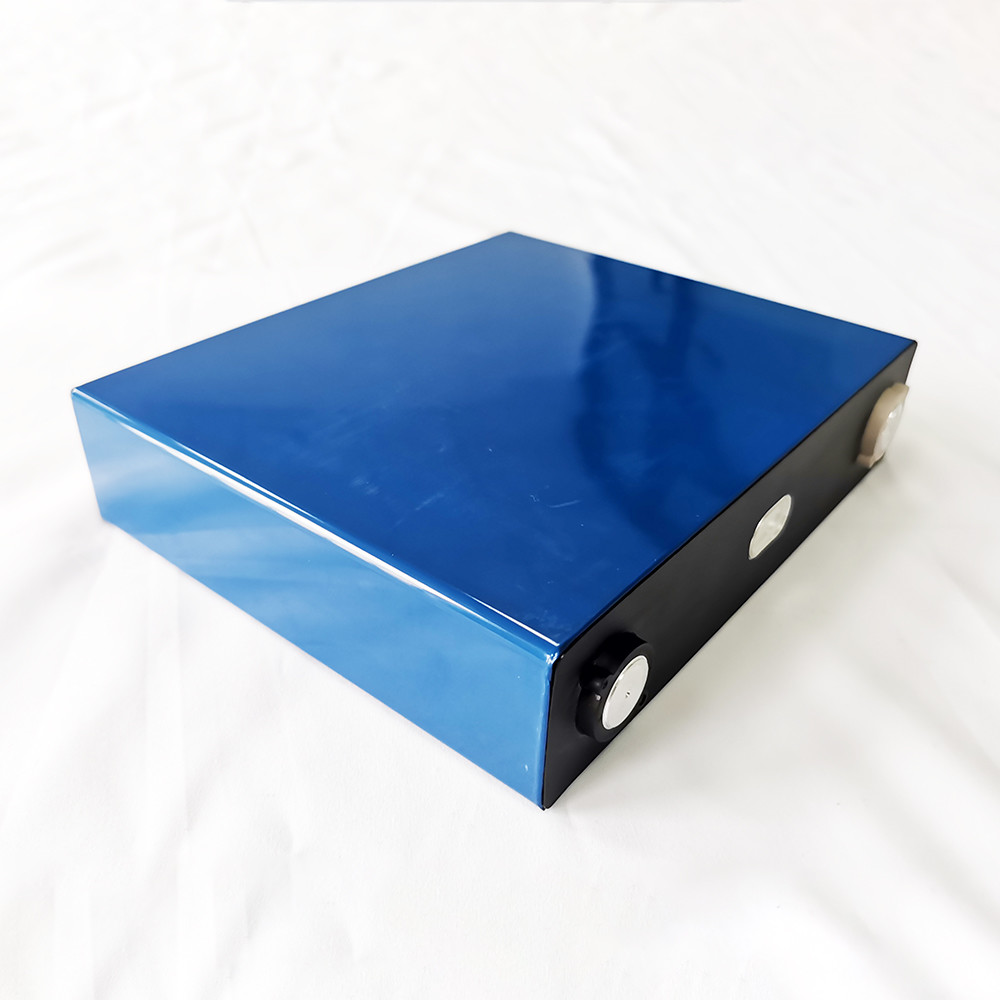

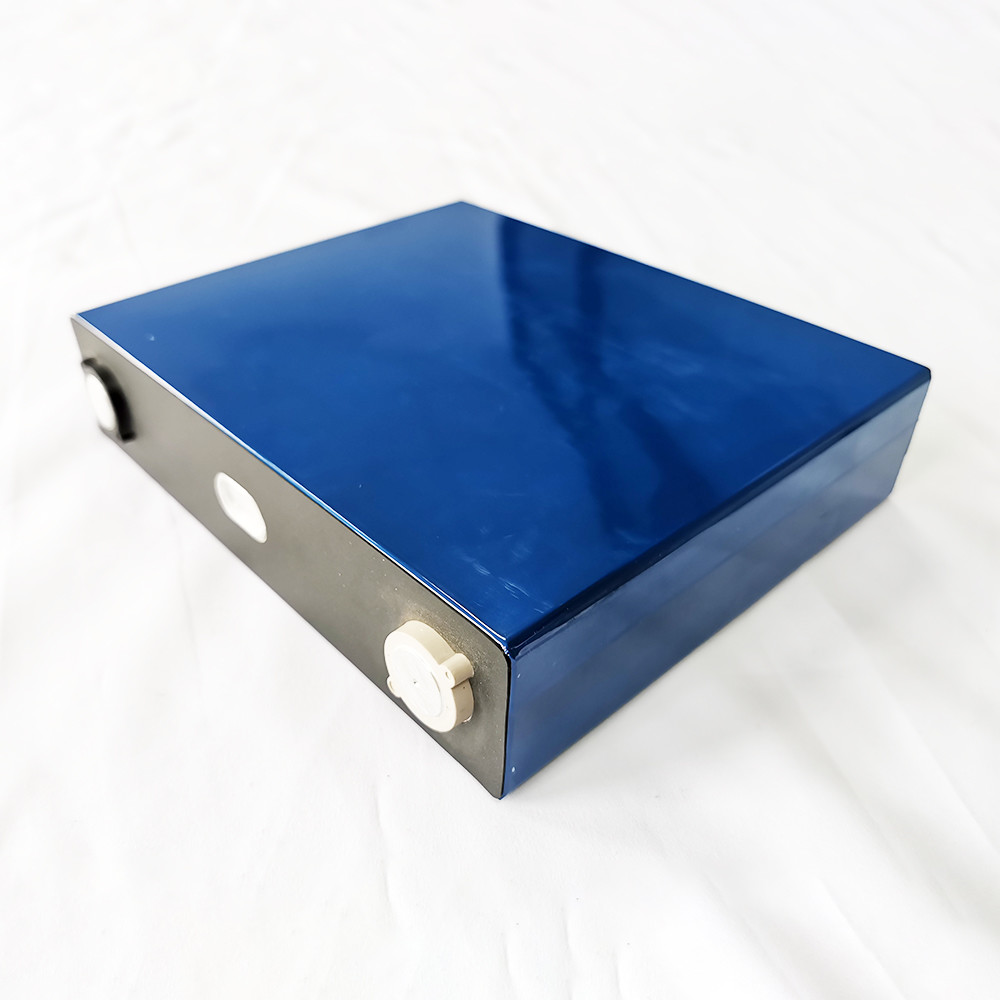

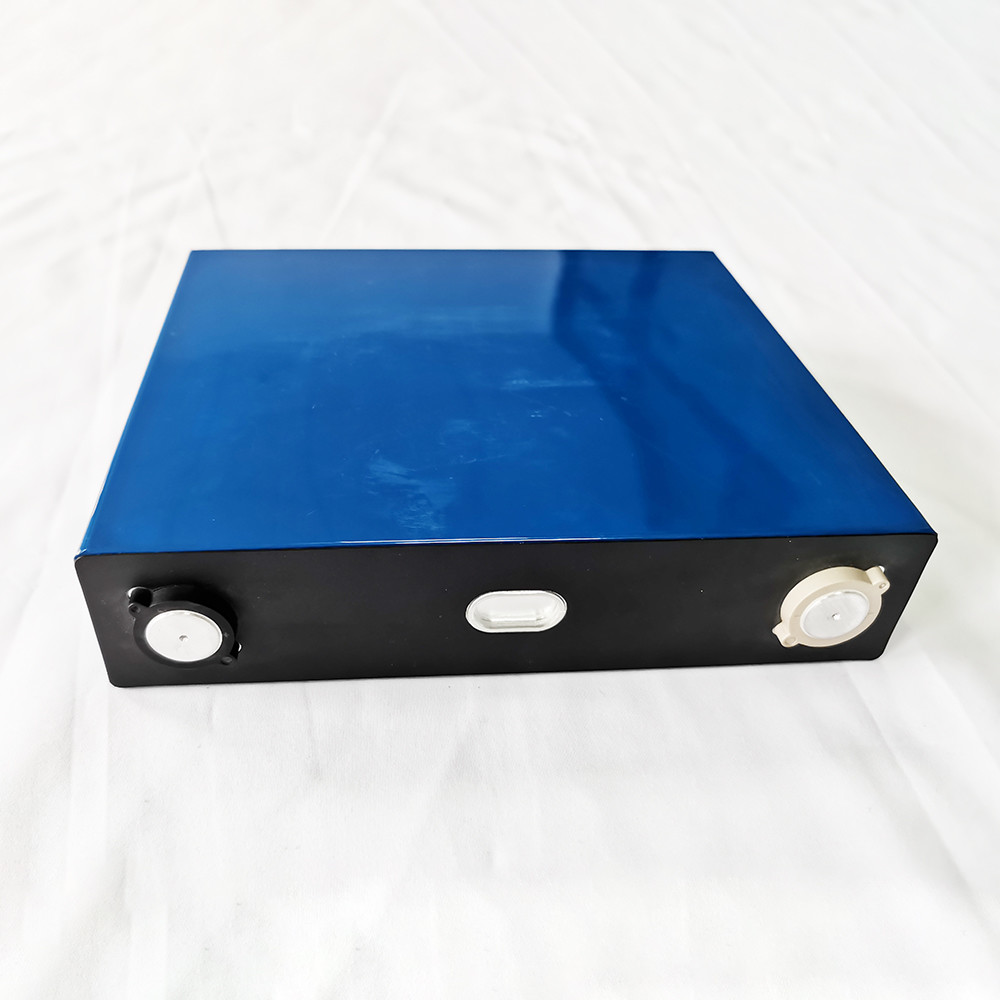

3.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery 03.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery 13.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery 2
