Home /Products/Lithium Ion Polymer Battery/3.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet

3.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet

10PCS/ORDER
MOQ
negotiable
Price
3.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity:: 600mAh
Size:: 7.0mm(T)*25mm(W)*35mm(L)
Cycle Life:: 500 Times
Voltage:: 3.7V
Energy:: 7.4 Wh
Resistance: ≤35mΩ
Highlight:

100mAh rechargeable lithium polymer batteries

,

500830 rechargeable lithium polymer batteries

,

3.8V 100mAh smart bracelet battery
Basic Infomation
Place of Origin: China
Brand Name: Purple Horn
Certification: CE, RoHS, REACH, UL, UN38.3 , IEC 62133
Model Number: 600mAh 3.7v Polymer Lithium Battery
Payment & Shipping Terms
Packaging Details: 600pc in a carton
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union,Credit Card.Paypal
Supply Ability: 1000000 Piece/Pieces per Month
Product Description

Key Specifications/Special Features:

Type: Lithium polymer battery
Model: LP553040-600mAh
Nominal voltage: 3.7V
Nominal Capacity:600mAh
Max.charge current: 1.0C
Max.discharge current: 1.0C
Charge current:
-Standard Charging: 0.5C
-Rapid charge: 1.0C
Standard Charging method: 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time:
-Standard Charging: 3.0 hours(Ref.)
-Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage: 2.45V~3.0V
Operating temperature: -20°C~+60 °C
Storage temperature: 25°C
Application: PDA, tablet PC, e-book, MID, mine lamp, bluetooth headset,MP3,MP4,MP5, power bank and so on.



ItemNominal ParameterNote
1. Model702535
2. Nominal Capacity600mAh
3. Nominal Voltage3.7V
4. Resistance≤35m&OPurple Horn;
5. Charging Voltage4.2V
6. Discharging Voltage3.0V
9. Standard Charging Current120mA0.2C5mA, About 6H.
10. Max Charging Current600mA1.0C5mA, About 1.5H.
11. Standard Disharging Current120mA0.2C5mA
12. Max Discharging Current600mA1.0C5mA
13. Cycle Life500≥80% of Nominal Capacity
14. Operating
Temperature		Charge0~45℃
Discharge-20~60℃
15. StorageLess than 3 months-10~40℃
More than 3 month-20~35℃
16. Weight
17. Energy7.4Wh
18. DimensionCell7.0mm(T)*25mm(W)*35mm(L)
Battery-With PCM7.1mm(T)*25mm(W)*37.5mm(L)

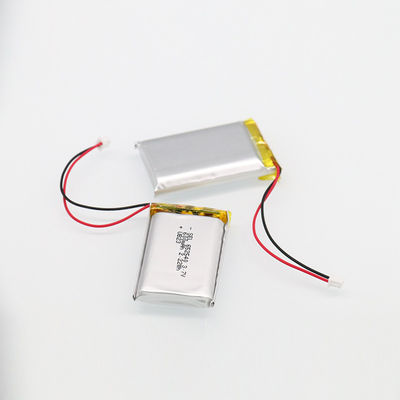

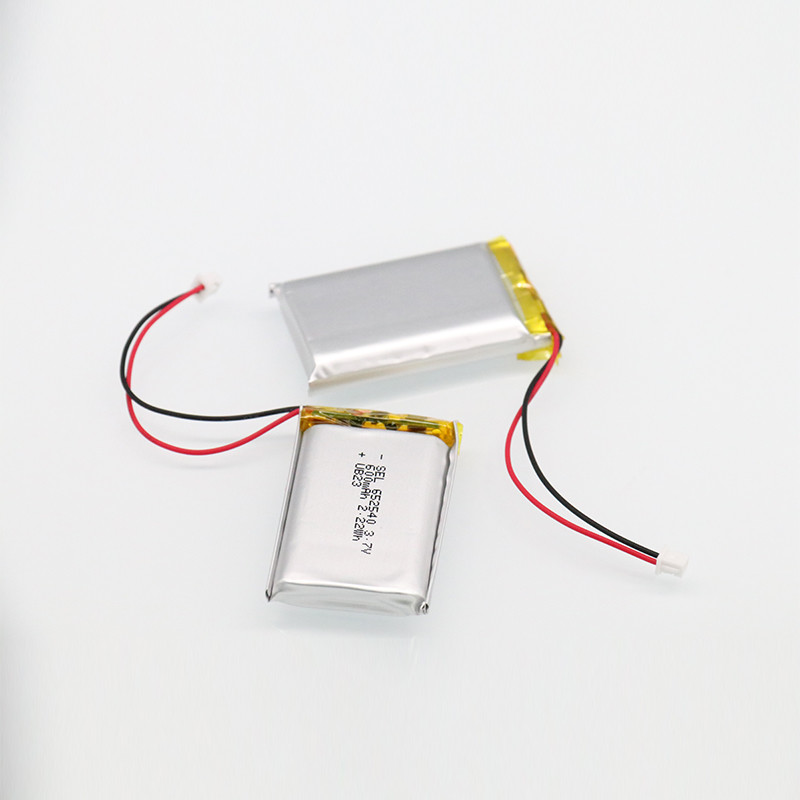

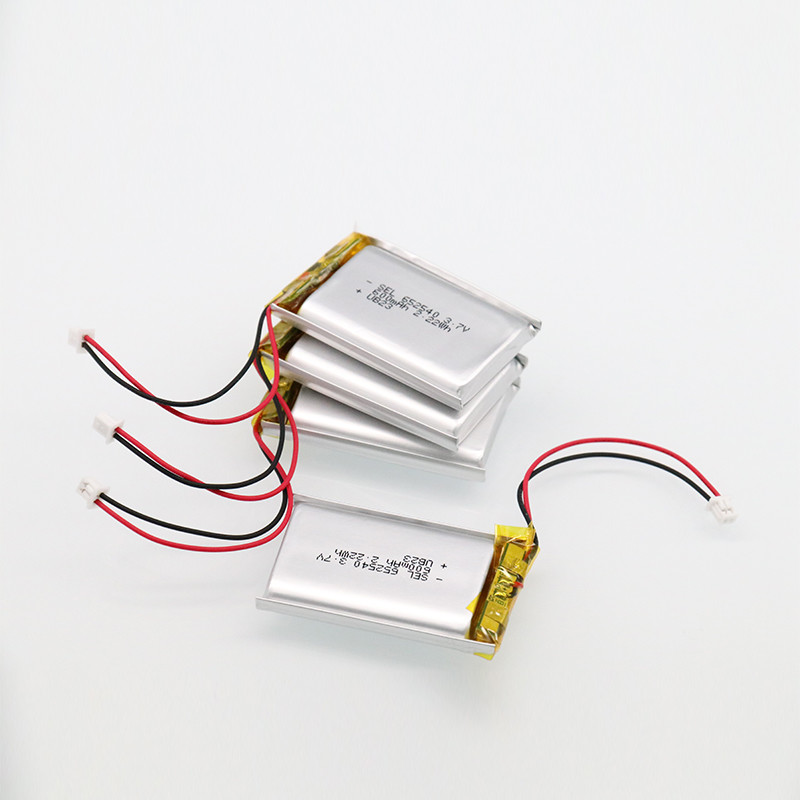

3.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet 03.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet 13.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet 2

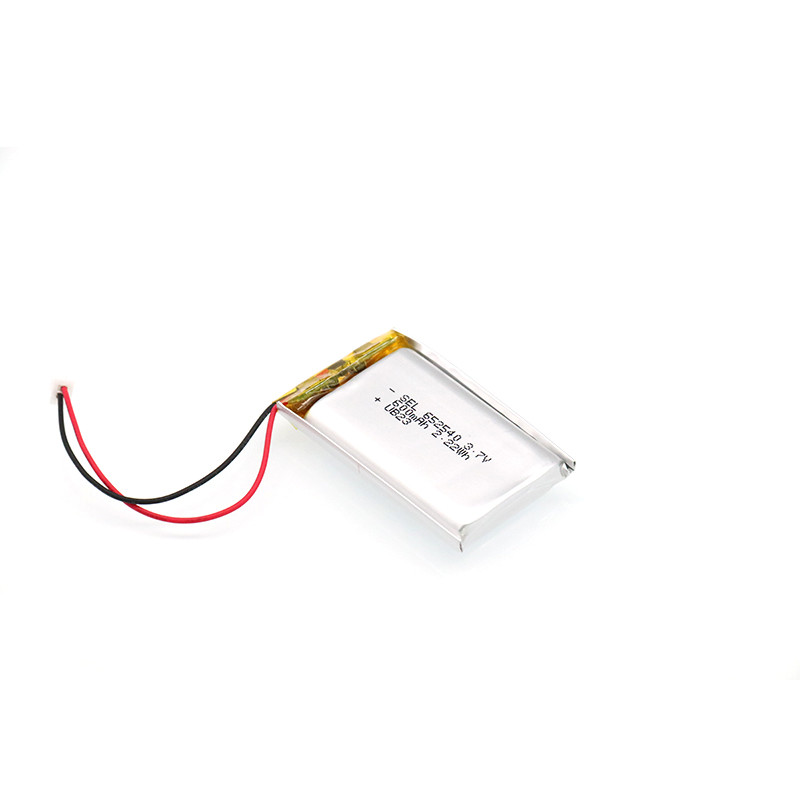

 3.8V 100mAh 500830 Ultrathin Rechargeable Lithium Polymer Batteries For Smart Bracelet 3
