Big Capacity Purple Horn 0.2C 3.2V20AH Lifepo4 Lithium Iron Phosphate Battery
| capacity: | 20Ah | voltage: | 3.2V |
| Size :: | D*h= 40*135mm | circle life :: | 2000 Times |
| IInternal Impedance: | Less Than 3.5mΩ | pvc color :: | Blue Or OEM |
| discharge current :: | 2C | charge current :: | 0.5C |
| High Light: | 3.2V20AH 0.5C lifepo4 lithium ion battery,REACH 0.2C lifepo4 lithium ion battery,Purple Horn 2000times lithium ion phosphate battery |
||
3.2V LiFePO4 Battery 40135 20AH High Capacity For Energy Storage System
Specification for 3.2V LiFePO4 Battery 40135 20AH High Capacity For Energy Storage System
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 20Ah | 0.2C Standard discharge | |
| 2 | Minimum Capacity | 19.4Ah | ||
| 3 | Nominal Voltage | 3.2V | Mean Operation Voltage | |
| 4 | Delivery voltage | 3.2~3.3V | Within 10 days from Factory | |
| 5 | Charge Voltage | 3.65V±0.03V | By standard charge method | |
| 6 | Standard charging method | 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C | ||
| 7 | Charge current | 0.2C | 4A | Standard charge, charge time about 6.5h(Ref) |
| 0.5C | 10A | Rapid Charge, charge time about: 3h(Ref) | ||
| 8 | Standard discharging method | 0.2C constant current discharge to2.0V, | ||
| 9 | Cell Internal Impedance | ≤3.5m&OPurple Horn; | Internal resistance measured at AC 1KHZ at 50%SOC |
|

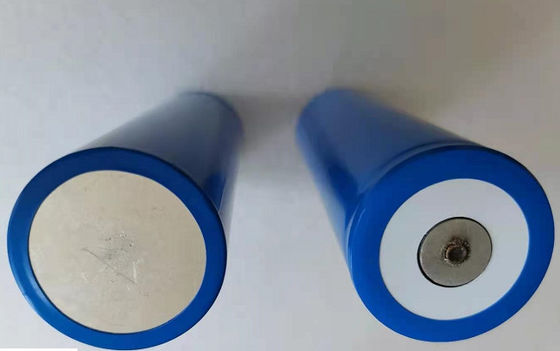

Battery Photos
