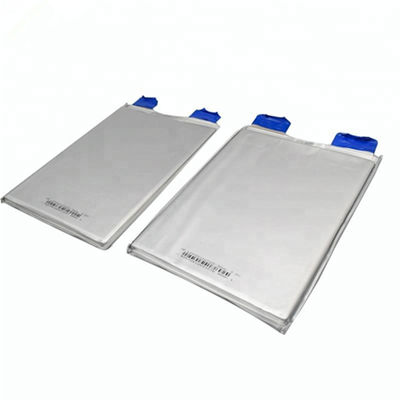

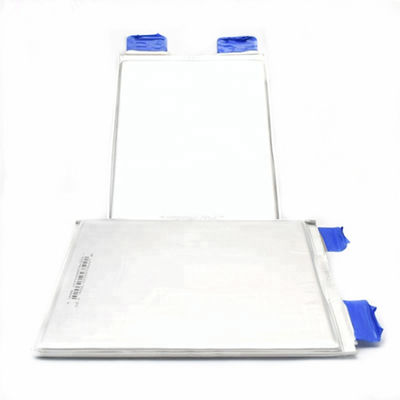

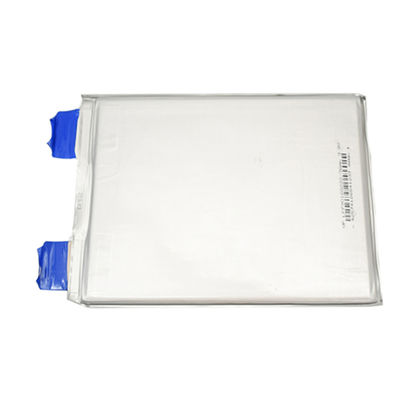

Lifepo4 battery 3.2V 20Ah lithium ion cell for mobile power
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.
Product Description
1. Brand:GEB
2. Model: AMP20MIHD-A
3. Nominal voltage:3.3V
4. Discharge rate: 20C
5. Capacity:20Ah
6. Type: LiFePO4

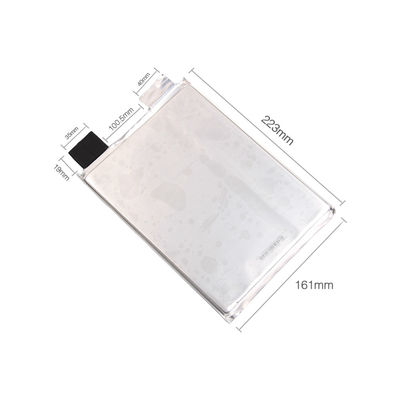

7.Size: 7.3*160*227mm
8. Color: Silver
9. Weight:496g
| Sell Deep Prismatic Pouch Lifepo4 battery 3.2V 20Ah lithium ion battery for mobile power | |
| Size | 7.25*160*227mm |
| Rated Voltage | 3.3V |
| Rated Capacity | 20Ah |
| Net Weight | 496g |
| Cut-off Discharge Voltage | 2.0v |
| Charge Upper Limit Voltage | 3.65V |
| Charging Time | 6 Hours |
| Max Discharging Current | 20c |
| Cycle Life | 2000 |
| Standard charger | cc/cv(max ,charging rate 4A) |
| Warranty | 1 years |
| Operating Temperature | charge (0 ~ 45°C) |
| discharge (-20 ~ 60°C) | |
| Storage Temperature | within 1 month (-20~ 50°C) |
| within 3 months (-20~ 40°C) | |
| within 3 months (-20~ 20°C) | |
|
||
|
Electronics Products Battery |
Medical Equipment Battery |
Battery For water/ gas gauges |
|
||
|
Energy Storage Battery |
High C-rating LiPo Battery |
Battery For Street lamp |
|
||
| UPS Battery | Power Battery |
Battery For Normal Lights |
Packing Details:
Packing for each item. Standard weight and outer package for all shipping method.
Delivery Details:
* Within 2-3 days after receiving payment(based on actual quantity)
* DHL/FedEx/UPS fast express
* Air Shipping/ Sea Shipping. All accepted.
* Tracking NO. will be sent to you after delivery, and we will track the goods for you until you receive all of them.
1,Q: What's the main product in GEB?
A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
Warnings:
Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not use Efest batteries with defective E-cig mods.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
